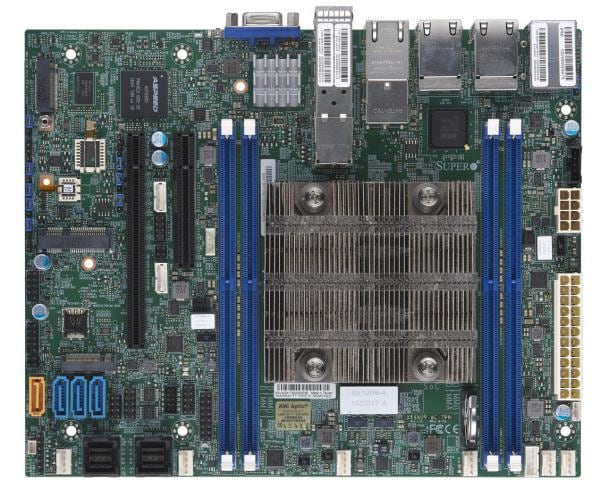

X11SDV-8C-TP8F

Xeon D SoC
Intel® Quick Assist Technology
Quad 10GbE LAN
Quad 1GbE LAN
IPMI

Key Features


  1. Intel® Xeon® Processor D-2146NT, CPU TDP supports Up to 80W TDP
  2. Intel Quick Assist Technology
  3. Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2133MHz, in 4 DIMM slots
  4. 1 PCIe 3.0 x8,
    1 PCIe 3.0 x16
    1 Mini-PCIe,
    2 PCIe 3.0 NVMe x4 Internal Port(s)
    1 M.2 M-Key SATA/PCIe 3.0 x4, 2280
    1 M.2 B-Key SATA/PCIe 3.0 x2, 3042
    U.2 Interface: 2 PCIe 3.0 x4
  5. SoC controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  6. Quad LAN with Intel® Ethernet Controller I350-AM4
    Dual LAN with 10G SFP+ LAN via SoC
    Dual LAN with 10Gbase-T
  7. Supports 12V DC power input
  8. 1 VGA D-Sub Connector port
  9. System on Chip
...
...

Optimized Servers


Specifications Resources Parts List
Specifications
Product SKUs
MBD-X11SDV-8C-TP8F
Physical Stats
Form Factor
  • Flex ATX
Dimension
  • 9" x 7.25" (22.86cm x 18.42cm)
Processor
CPU
  • Intel® Xeon® Processor D-2146NT
Core
  • Up to 8 cores, 16 threads / 11MB Cache
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 512GB ECC LRDIMM, DDR4-2133MT/s; Up to 256GB ECC RDIMM, DDR4-2133MT/s
Memory Type
  • 2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (Operating speed up to 2133MHz)
DIMM Sizes
  • LRDIMM: 16GB, 32GB, 64GB, 128GB
  • RDIMM: 16GB, 32GB, 64GB, 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Graphics
  • 1 ASPEED AST2500 BMC port(s)
Network Controllers
  • Dual LAN with 10Gbase-T
  • Quad LAN with Intel® Ethernet Controller I350-AM4
  • Dual LAN with 10G SFP+ LAN via SoC
Input / Output
SATA
  • 4 SATA3 port(s)
LAN
  • 4 RJ45 Gigabit Ethernet LAN ports
  • 2 10G SFP+ LAN ports
  • 2 RJ45 10GBase-T ports
USB
  • 2 USB 2.0 port(s) (2 via header)
  • 2 USB 3.0 port(s) (2 rear)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 1 SuperDOM (Disk on Module) port with build power
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 3.0 x8,
  • 1 PCIe 3.0 x16
  • 1 Mini-PCIe
M.2
  • M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 SATA/PCIe 3.0 x2
  • Form Factor: 2280, 3042
  • Key: M-Key, B-Key
System BIOS
BIOS Type
  • 128MB UEFI
BIOS Features
  • ACPI 6.1
  • SMBIOS 3.1
  • UEFI 2.6
  • PCI FW 3.2
Management
Software
  • NMI, SUM, KVM with dedicated LAN, Intel® Node Manager, IPMI2.0, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • ACPI Power Management, +12V DC Power Input, CPU thermal trip support for processor protection
PC Health Monitoring
Voltage
  • VBAT, System temperature, System level control, Supports system management utility, Monitors CPU voltages, 5 -fan status, +5V standby, +5V, +3.3V, +12V, +1.5V, Memory Voltages, 5 (4-pin)
LED
  • UID/Remote UID
  • BMC/IPMI Heartbeat LED
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • PECI
FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • Thermal control tachometer fan connectors, System level control, PWM fan speed control, Fan speed control, Dual Cooling Zone, 6 fans with tachometer status monitoring, Overheat LED indication
Other Features
  • System level control, RoHS, Node Manager Support, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, SDDC, Intel® QuickAssist Technology
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Resources
Parts List

X11SDV-8C-TP8F

  1. Products
  2. Motherboards
  3. X11SDV-8C-TP8F
