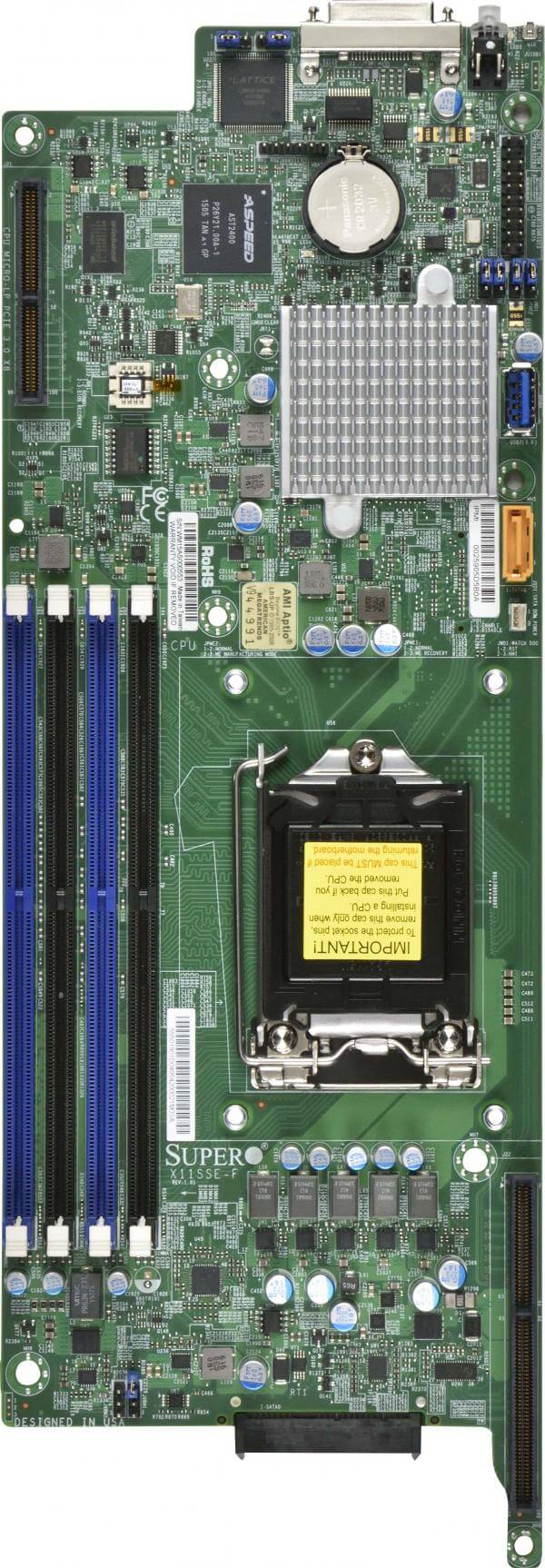

X11SSE-F

MicroCloud

Key Features


  1. Single socket H4 (LGA 1151) supports
    Intel® Xeon® processor E3-1200 v6/v5,
    Intel® 7th/6th Gen. Core™ i3 series,
    Intel® Celeron® and Intel® Pentium®
  2. Intel® C236 chipset
  3. Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
  4. Expansion slots: 1 PCIe 3.0 x8 (micro low-profile)
  5. 4 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
  6. 1 SuperDOM with built-in power
  7. I/O: 1 VGA, 1 COM, TPM header, 2 NVMExpress internal ports
  8. 1 USB 3.0 (Type A), 2 USB 2.0 (rear)
...
...
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X11SSE-F
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 4.6" x 11.7" (11.68cm x 29.72cm)
Processor
CPU
  • Intel® 6th Generation Core™ i3 series, Intel® Celeron®, Intel® Pentium®, Intel® 7th Generation Core™ i3 series, Intel® Xeon® processor E3-1200 v6/v5
  • Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 80W TDP
System Memory
Memory Capacity
  • 4 DIMM slots
  • 64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
Memory Type
  • 2400/2133/1866 MT/s SDRAM 72/64-bit, 288-pin gold-plated DIMMs2133/1866/1600MHz SDRAM 72-bit, 288-pin gold-plated DIMMs
DIMM Sizes
  • 4GB, 8GB, 16GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C236
SATA
  • Intel® C236 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Graphics
  • 1 ASPEED AST2400 BMC port(s)
Network Controllers
  • N/A
Input / Output
USB
  • 2 USB 2.0 port(s) (2 rear)
  • 1 USB 3.2 Gen1 port(s) (1 type A)
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 fast UART 16550 Serial
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 3.0 x8 (Micro Low Profile)
System BIOS
BIOS Type
  • 128MB UEFI
BIOS Features
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • APM 1.2
  • DMI 2.3
  • Hardware BIOS Virus protection
  • PCI 2.3
  • Plug and Play (PnP)
  • RTC (Real Time Clock) Wakeup
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  • USB Keyboard support
Management
Software
  • SuperDoctor® 5, IPMI2.0, Watchdog
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management
PC Health Monitoring
Voltage
  • +5V standby, +5V, +3.3V, +12V
LED
  • UID/Remote UID
  • Suspend static indicator LED
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
  • I2C temperature sensing logic
FAN
  • System level control
Other Features
  • RoHS
Resources
Parts List

X11SSE-F (For SuperServer Only)
