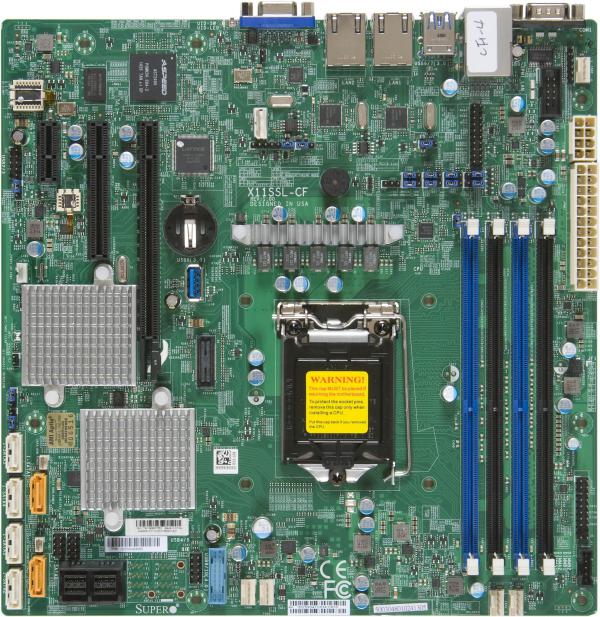

X11SSL-CF

Key Features

Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series,
Intel® Celeron® and Intel® Pentium®
Intel® C232 chipset
Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
Expansion slots:
1 PCIe 3.0 x8 (in x16),
1 PCIe 3.0 x4 (in x8),
1 PCIe 3.0 x1
Dual GbE LAN with Intel® i210-AT
6 SATA3 (6Gbps) via C232; RAID 0, 1, 5, 10
8 SAS3 (12Gbps) via Broadcom® 3008 SW controller; RAID 0, 1, 10
I/O: 1 VGA, 2 COM, TPM header
2 SuperDOM with built-in power
5 USB 3.0 (2 rear, 2 via header(s), 1 Type A),
6 USB 2.0 (2 rear, 4 via header(s))

...

...

Specifications

Product SKUs
MBD-X11SSL-CF

Physical Stats
Form Factor	Micro-ATX
Dimension	9.6" x 9.6" (24.38cm x 24.38cm)

Processor
CPU	Intel® Celeron®, Intel® Pentium®, Intel® 7th/6th Generation Core i3 series, Intel® Xeon® processor E3-1200 v6/v5 Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 80W TDP

System Memory
Memory Capacity	4 DIMM slots 64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
Memory Type	2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
DIMM Sizes	4GB, 8GB, 16GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors

On-Board Devices
Chipset	Intel® C232
SAS	LSI3008 controller for 8 SAS3 (12 Gbps) ports; RAID 0,1,10
SATA	Intel® C232 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2400 BMC
Graphics	1 ASPEED AST2400 BMC port(s)
Network Controllers	Dual LAN with Intel® Ethernet Controller I210-AT

Input / Output
USB	6 USB 2.0 port(s) (4 via header; 2 rear) 2 USB 3.0 port(s) (2 rear) 3 USB 3 port(s) (2 via header; 1 type A)
Video Output	1 VGA port(s)
Serial Port	2 COM Port(s) (1 header; 1 rear)
TPM	1 TPM Header

Expansion Slots
PCIe	1 PCIe 3.0 x8 (in x16 slot), 1 PCIe 3.0 x4 (in x8 slot), 1 PCIe 3.0 x1

System BIOS
BIOS Type	128MB SPI Flash EEPROM with AMI BIOS
BIOS Features	ACPI 1.0 / 2.0 / 3.0 / 4.0 APM 1.2 DMI 2.3 Hardware BIOS Virus protection PCI 2.3 Plug and Play (PnP) SMBIOS 2.7.1 UEFI 2.3.1 USB Keyboard support

Management
Software	SuperDoctor® 5, NMI, SUM, SSM, IPMI2.0, Watchdog
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management

PC Health Monitoring
Voltage	VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V
LED	UID/Remote UID CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI
FAN	5x 4-pin fan headers (up to 5 fans) Thermal control tachometer fan connectors Fan speed control Overheat LED indication
Other Features	WOL CPU thermal trip support for processor protection Control of power-on for recovery from AC power loss

Operating Environment
Operating Temperature Range	0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)

Resources

Chassis

SC113MFAC2-R606CB

SC813MFTQ-R400CB

SC113MFAC2-605CB

SC813MFTQC-350CB

SC813MFTQC-505CB

Heatsink:SNK-P0046P

SC825TQ-R720LPB

Heatsink:SNK-P0046A4

Heatsink:SNK-P0046A4

Heatsink:SNK-P0046A4

SC743AC-1200B-SQ

SC745BAC-R1K28B2

SC745BTQ-R1K28B

Heatsink:SNK-P0046A4

...

= Optimized SuperServer Chassis
= Optimized Global Chassis
Blue color = Compatible Chassis
= Compatible Global Chassis
