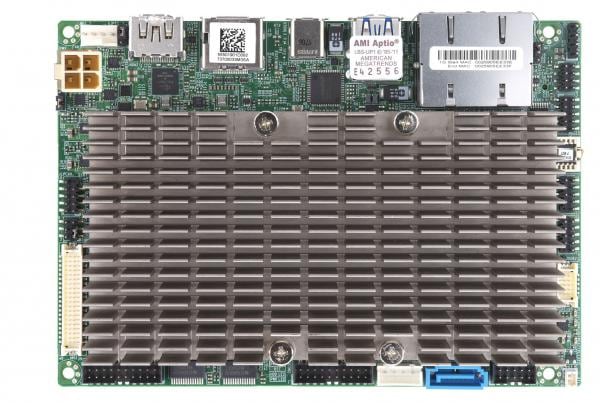

X11SSN-E-VDC

Embedded
Low Power

Key Features


  1. 7th Generation Intel® Core™ i5-7300U Processor
  2. Up to 32GB Unbuffered Non-ECC SO-DIMM
    DDR4 2133MHz; 2 DIMM slots
  3. 1 M.2 B-Key 2280, 1 Full size Mini-PCIe, 1 SATA 3.0
  4. 1 USB 3.1 Gen2 Type-C port, 2 USB 3.0 ports, 4 USB 2.0 ports, 4 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus
  5. Dual GbE LAN w/ Intel i219LM + i210IT
  6. 1 HDMI, 1 DP, 1 LVDS, Intel HD Graphics 3 independent displays
  7. Supports on board TPM 2.0
  8. Support HDMI 2.0
  9. Support 12V DC Power Input (Vertical Type Connector)
...
...
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X11SSN-E-VDC
Physical Stats
Form Factor
  • 3.5" SBC
Dimension
  • 5.7" x 4" (14.6cm x 10.16cm)
Processor
CPU
  • 7th Generation Intel® Core™ i5-7300U Processor
  • Single Socket FCBGA-1356 supported, CPU TDP supports Up to 15W TDP
Core
  • Up to 2 cores, 4 threads / 3MB Cache
System Memory
Memory Capacity
  • 2 DIMM slots
  • Up to 32GB Unbuffered non-ECC SODIMM, DDR4-2133MT/s
Memory Type
  • non-ECC DDR4 SODIMM Unbuffered 2133 SDRAM 72-bit, 260-pin gold-plated
DIMM Sizes
  • 4GB, 8GB, 16GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • System on Chip
Audio
  • ALC 888S HD Audio
Graphics
  • 1 Intel® HD Graphics port(s)
Network Controllers
  • Single LAN with Intel® PHY I219LM LAN controller
  • Single LAN with Intel® Ethernet Controller I210IT
Input / Output
SATA
  • 1 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 1 USB 3.2 Gen2 port(s) (1 type C)
  • 4 USB 2.0 port(s) (4 via header)
  • 2 USB 3.0 port(s) (2 rear)
Video Output
  • 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 48-bit LVDS port(s)
Serial Port
  • 4 COM Port(s) (4 header)
TPM
  • 1 TPM Chip
Others
  • 1 HD Audio header Mic-in/Headphone-out (Audio only support at 0~60C)
  • 1 8-bit GPIO header
  • 1 SMBus header
  • 1 System Fan
  • 1 Speaker header
Expansion Slots
PCIe
  • 1 x Full size Mini-PCIe with mSATA(USB2.0 x 1,PCIe Gen3 x 1,SATA Gen3 x 1)
M.2
  • M.2 Interface: SATA; USB 2.0; PCIe 3.0 x2
  • Form Factor: 2280
  • Key: B-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.1
  • SMBIOS 3.1
  • UEFI 2.6
  • PCI FW 3.0
Management
Software
  • SuperDoctor® 5, AMT, vPro, Watchdog
System Management Software
  • SuperDoctor 5
Power Configurations
  • ACPI Power Management, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Force Power On by Jumper, +12V DC Power Input Vertical Type Connector
PC Health Monitoring
Voltage
  • VBAT, System temperature, System level control, 3.3V standby, 1.2V (VDIMM), +5V, +3.3V, +12V, Monitors for CPU Cores
LED
  • Standby alert LED
Temperature
  • CPU thermal trip support
FAN
  • 1x 4-pin fan header (up to 1 fan)
  • Thermal control tachometer fan connectors
  • System level control
  • PWM fan speed control
  • Low noise fan speed control
  • Fan speed control
Other Features
  • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 4-pin 12v Vertical Type DC Power Connector
Operating Environment
Operating Temperature Range
  • 0°C - 70°C (32°F - 158°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
