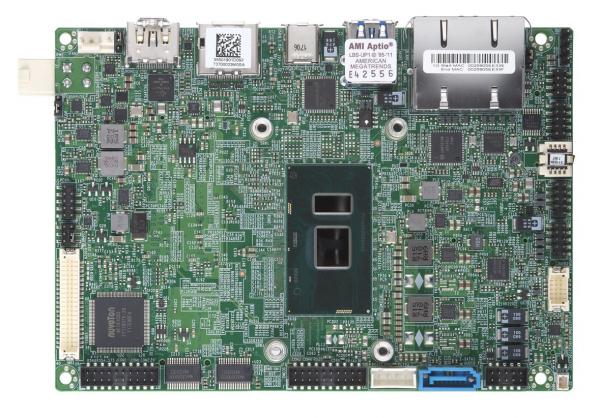

Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz),
HDMI 2.0 (max. resolution up to 4096x2160@60Hz),
DP++ (max. resolution up to 4096x2304@60Hz)
4 COM Port(s) (4 header), (2 x RS232, 2 RS232/422/485, RS-485 supports Auto flow control)
TPM
1 TPM Chip
Others
1 HD Audio header Mic-in/Headphone-out (Audio only support at 0~60C)
1 8-bit GPIO header
1 SMBus header
1 System Fan
1 Speaker header
Expansion Slots
PCIe
1 x Full size Mini-PCIe with mSATA(USB2.0 x 1,PCIe Gen3 x 1,SATA Gen3 x 1)
M.2
M.2 Interface: SATA; USB 2.0; PCIe 3.0 x2
Form Factor: 2280
Key: B-Key
M.2 2280 B-Key (USB2.0 x 1,PCIe Gen3 x 2,SATA Gen3 x 1)
System BIOS
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.1
SMBIOS 3.1
UEFI 2.6
PCI FW 3.0
Management
Software
SuperDoctor® 5, AMT, vPro, Watchdog
System Management Software
SuperDoctor 5
Power Configurations
ACPI Power Management, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Force Power On by Jumper, +12V DC Power Input R/A Type Connector
PC Health Monitoring
Voltage
VBAT, System temperature, System level control, 3.3V standby, 1.2V (VDIMM), +5V, +3.3V, +12V, Monitors for CPU Cores
LED
Standby alert LED
Temperature
CPU thermal trip support
FAN
1x 4-pin fan header (up to 1 fan)
Thermal control tachometer fan connectors
System level control
PWM fan speed control
Low noise fan speed control
Fan speed control
Other Features
WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 4-pin 12v R/A Type DC Power Connector
