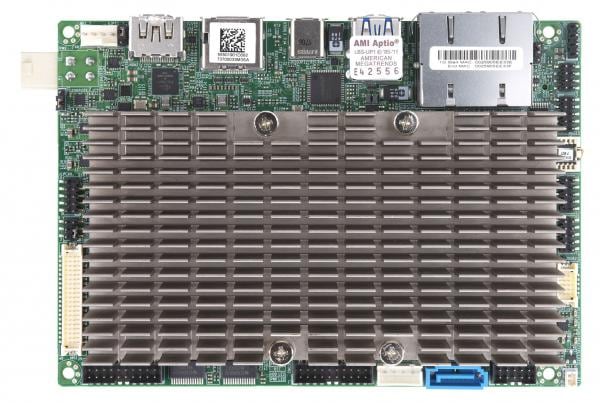

X11SSN-H

Embedded
Low Power

Key Features


  1. 7th Generation Intel® Core™ i7-7600U Processor
  2. Up to 32GB Unbuffered Non-ECC SO-DIMM
    DDR4 2133MHz; 2 DIMM slots
  3. 1 M.2 B-Key 2280, 1 Full size Mini-PCIe, 1 SATA 3.0
  4. 1 USB 3.1 Gen2 Type-C port, 2 USB 3.0 ports, 4 USB 2.0 ports, 4 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus
  5. Dual GbE LAN w/ Intel i219LM + i210IT
  6. 1 HDMI, 1 DP, 1 LVDS, Intel HD Graphics 3 independent displays
  7. Supports on board TPM 2.0
  8. Support 12V DC power input (R/A Type Connector)
  9. Support HDMI 2.0
...
...
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X11SSN-H
Physical Stats
Form Factor
  • 3.5" SBC
Dimension
  • 5.7" x 4" (14.6cm x 10.16cm)
Processor
CPU
  • 7th Generation Intel® Core™ i7-7600U Processor
  • Single Socket FCBGA-1356 supported, CPU TDP supports Up to 15W TDP
Core
  • Up to 2 cores, 4 threads / 4MB Cache
System Memory
Memory Capacity
  • 2 DIMM slots
  • Up to 32GB Unbuffered non-ECC SODIMM, DDR4-2133MT/s
Memory Type
  • non-ECC DDR4 SODIMM Unbuffered 2133 SDRAM 72-bit, 260-pin gold-plated
DIMM Sizes
  • 4GB, 8GB, 16GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • System on Chip
Audio
  • ALC 888S HD Audio
Graphics
  • 1 Intel® HD Graphics port(s)
Network Controllers
  • Single LAN with Intel® PHY I219LM LAN controller
  • Single LAN with Intel® Ethernet Controller I210IT
Input / Output
SATA
  • 1 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 1 USB 3.2 Gen2 port(s) (1 type C)
  • 4 USB 2.0 port(s) (4 via header)
  • 2 USB 3.0 port(s) (2 rear)
Video Output
  • 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 48-bit LVDS port(s)
Serial Port
  • 4 COM Port(s) (4 header)
TPM
  • 1 TPM Chip
Others
  • 1 HD Audio header Mic-in/Headphone-out (Audio only support at 0~60C)
  • 1 8-bit GPIO header
  • 1 SMBus header
  • 1 System Fan
  • 1 Speaker header
Expansion Slots
PCIe
  • 1 Full size Mini-PCIe with mSATA(USB2.0 x 1,PCIe Gen3 x 1,SATA Gen3 x 1)
M.2
  • M.2 Interface: SATA; USB 2.0; PCIe 3.0 x2
  • Form Factor: 2280
  • Key: B-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.1
  • SMBIOS 3.1
  • UEFI 2.6
  • PCI FW 3.0
Management
Software
  • SuperDoctor® 5, AMT, vPro, Watchdog
System Management Software
  • SuperDoctor 5
Power Configurations
  • ACPI Power Management, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Force Power On by Jumper, +12V DC Power Input R/A Type Connector
PC Health Monitoring
Voltage
  • VBAT, System temperature, System level control, 3.3V standby, 1.2V (VDIMM), +5V, +3.3V, +12V, Monitors for CPU Cores
LED
  • Standby alert LED
Temperature
  • CPU thermal trip support
FAN
  • 1x 4-pin fan header (up to 1 fan)
  • Thermal control tachometer fan connectors
  • System level control
  • PWM fan speed control
  • Low noise fan speed control
  • Fan speed control
Other Features
  • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 4-pin 12v R/A Type DC Power Connector
Operating Environment
Operating Temperature Range
  • 0°C - 70°C (32°F - 158°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
Resources
Parts List

X11SSN-H
