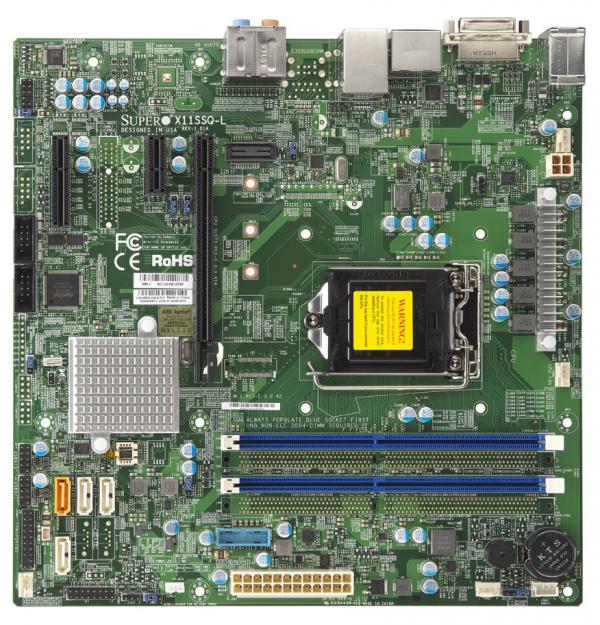

X11SSQ-L

Embedded
Desktop

Key Features


  1. Single socket H4 (LGA 1151) supports
    Intel® 7th/6th Gen. Core i7/i5/i3 series,
    Intel® Celeron® and Intel® Pentium®
  2. Intel® H110 Chipset
  3. Up to 32GB Unbuffered Non-ECC UDIMM DDR4 2400MHz; 2 DIMM slots
  4. Expansion slots:
    1 PCIe 3.0 x16
    1 PCIe 2.0 x4 w/ open slots
    1 PCIe 2.0 x1
  5. Intel® i219LM GbE LAN
  6. 4 SATA3 (6Gbps) via H110, Intel® RST
  7. HDMI, DP, DVI-D
    Intel HD Graphics
    2 Independent Displays
  8. 1 SATA DOM, 2 COM ports, TPM header, ALC 888S HD Audio 7.1
  9. 4 USB 3.0 (2 rear + 2 via header(s))
    6 USB 2.0 (2 rear + 4 via header(s))
...
...
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X11SSQ-L
Physical Stats
Form Factor
  • Micro-ATX
Dimension
  • 9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
  • Intel® 6th Generation Core™ i3 series, Intel® 6th Generation Core™ i5 series, Intel® 6th Generation Core™ i7 series, Intel® 7th Generation Core™ i3 series, Intel® 7th Generation Core™ i5 series, Intel® 7th Generation Core™ i7 series, Intel® Celeron®, Intel® Pentium®
  • Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 91W TDP
System Memory
Memory Capacity
  • 2 DIMM slots
  • Up to 32GB Unbuffered non-ECC UDIMM, DDR4-2400MT/s
Memory Type
  • 2400/2133/1866 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
DIMM Sizes
  • 4GB, 8GB, 16GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® H110
SATA
  • Intel® H110 controller for 4 SATA3 (6 Gbps) ports
Audio
  • ALC 888S HD Audio
Graphics
  • 1 Intel® HD Graphics port(s)
Network Controllers
  • Single LAN with Intel® PHY I219LM LAN controller
Input / Output
USB
  • 6 USB 2.0 port(s) (4 via header; 2 rear)
  • 2 USB 3.2 Gen1 port(s) (2 via header)
  • 2 USB 3.0 port(s) (2 rear)
Video Output
  • 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s)
Serial Port
  • 2 COM Port(s) (2 header)
TPM
  • 1 TPM Header
Others
  • 1 Force On mode by jumper and AC recovery
Expansion Slots
PCIe
  • 1 PCIe 3.0 x16
  • 1 PCIe 2.0 x4
  • 1 PCIe 2.0 x1
  • PCIe 2.0 x4 with open slot
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • UEFI 2.3.1
  • ACPI 5.0
  • SMBIOS 3.0
  • PCI 3.0
Management
Software
  • SuperDoctor® 5, NMI, Watchdog
System Management Software
  • SuperDoctor 5
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management, Force Power On by Jumper, Keyboard Wakeup from Soft-Off
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
LED
  • Standby alert LED
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
  • I2C temperature sensing logic
FAN
  • 4x 4-pin fan headers (up to 4 fans)
  • Thermal control tachometer fan connectors
  • System level control
  • PWM fan speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Overheat LED indication
Other Features
  • WOL, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
