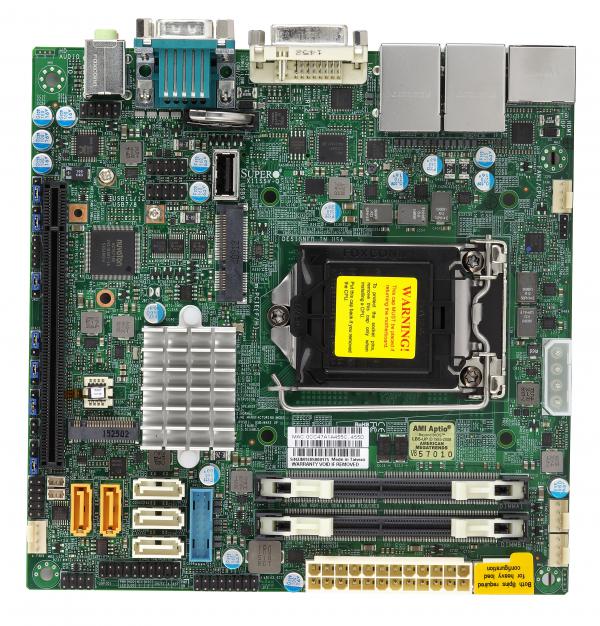

X11SSV-Q

vPro AMT
Embedded

Key Features


  1. Single socket H4 (LGA 1151) supports
    Intel® 7th/6th Gen. Core i7/i5/i3 series,
    Intel® Celeron® and Intel® Pentium®
  2. Intel® Q170 Express chipset
  3. Up to 32GB Unbuffered Non-ECC SO-DIMM DDR4 2400MHz; 2 DIMM slots
  4. 1 PCIe 3.0 x16, Mini-PCIe (mSATA support)
    M.2 PCIe 3.0 x4 (SATA support), M Key 2242/80
  5. Dual GbE LAN w/ Intel i219LM + i210AT
  6. 5 SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10
  7. 1 HDMI, 1 DP, 1 DVI-I, Intel HD Graphics
    3 independent displays
  8. Supports 12V DC power input
  9. AMT, vPro
  10. 2 SATA DOM, 2 COM ports, TPM header, ALC 888S HD Audio
...
...

Optimized Servers


Specifications Resources Parts List
Specifications
Product SKUs
MBD-X11SSV-Q
Physical Stats
Form Factor
  • Mini-ITX
Dimension
  • 6.7" x 6.7" (17.02cm x 17.02cm)
Processor
CPU
  • Intel® 6th Generation Core™ i3 series, Intel® Celeron®, Intel® Pentium®, Intel® 6th Generation Core™ i5 series, Intel® 6th Generation Core™ i7 series, Intel® 7th Generation Core™ i3 series, Intel® 7th Generation Core™ i5 series, Intel® 7th Generation Core™ i7 series
  • Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 91W TDP
Note
  • BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ Processors
System Memory
Memory Capacity
  • 2 DIMM slots
  • Up to 32GB Unbuffered non-ECC SODIMM, DDR4-2400MT/s
Memory Type
  • 2400/2133/1866 MT/s non-ECC DDR4 SODIMM Unbuffered SDRAM 72-bit, 260-pin gold-plated
DIMM Sizes
  • 4GB, 8GB, 16GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® Q170 Express
SATA
  • Intel® Q170 Express controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Intel RST
Audio
  • ALC 888S HD Audio
Graphics
  • 1 Intel® HD Graphics port(s)
  • 3 Independent Displays
Network Controllers
  • Single LAN with Intel® PHY I219LM LAN controller
  • Single LAN with Intel® Ethernet Controller I210-AT
Input / Output
USB
  • 5 USB 2.0 port(s) (4 via header; 1 Type A)
  • 6 USB 3.2 Gen1 port(s) (2 via header; 4 rear)
Video Output
  • 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - I port(s)
Serial Port
  • 2 COM Port(s) (2 rear)
TPM
  • 1 TPM Header
Others
  • 1 SMBus header
  • 1 SGPIO Header
  • 1 GPIO
Expansion Slots
PCIe
  • 1 PCIe 3.0 x16
  • Mini-PCIe with mSATA support, M.2 PCIe 3.0 x4 with SATA support, M Key
M.2
  • Form Factor: 2280, 2242
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 5.0
  • DMI 2.3
  • PCI 3.0
  • Plug and Play (PnP)
  • SMBIOS 3.0
  • UEFI 2.3.1
  • USB Keyboard support
Management
Software
  • SuperDoctor® 5, NMI, AMT, vPro, Watchdog
System Management Software
  • SuperDoctor 5
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
LED
  • Standby alert LED
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
FAN
  • 4x 4-pin fan headers (up to 4 fans)
  • Thermal control tachometer fan connectors
  • System level control
  • PWM fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Other Features
  • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, Intel Smart Response Technology
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
