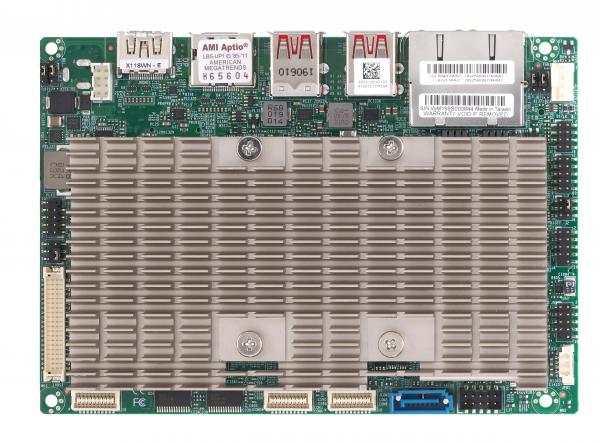

X11SWN-E

X11SWN-E
Embedded
Low Power
Quad Core

Key Features


  1. Intel® 8th Generation Core™ i5-8365UE Processor
  2. Dual Channel DDR4 2400MHz SO-DIMM, up to 64GB
  3. Small form factor with rich I/O: 2 GbE, 8 USB and 6 COM
  4. Intel UHD Graphics 620 with 4K and 24 EU for Vision Solution
  5. 3 display support(DP++, HDMI and 48-bit LVDS)
  6. Rich expansion: 3 x M.2 (B/E/M key) for NVMe/SATA/Wifi/BT/LTE
  7. 12-24V wide range power input with RVP and TVS
...
...

Optimized Servers


SYS-E102-9W-E
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X11SWN-E
Physical Stats
Form Factor
  • 3.5" SBC
Dimension
  • 5.7" x 4" (14.6cm x 10.16cm)
Processor
CPU
  • 8th Generation Intel® Core™ i5-8365UE Processor
  • Single Socket FCBGA-1528 supported, CPU TDP supports Up to 15W TDP
Core
  • Up to 4 cores, 8 threads / 6MB Cache
System Memory
Memory Capacity
  • 2 DIMM slots
  • Up to 64GB Unbuffered non-ECC SODIMM, DDR4-2400MT/s
Memory Type
  • 2666/2400/2133 MT/s non-ECC DDR4 Unbuffered 2400MHz 260pin SODIMM
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • System on Chip
Audio
  • ALC 888S HD Audio
Graphics
  • 1 Intel® UHD Graphics 620 port(s)
  • Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz), _x000D_ HDMI 1.4 (max. resolution up to 4096x2160@30Hz), DP++ (max. resolution up to 4096x2304@60Hz)
Network Controllers
  • Single LAN with Intel® PHY I219LM LAN controller
  • Single LAN with Intel® Ethernet Controller I210IT
SATA
  • I-SATA0 (1x SATA 3.0 Port)
Input / Output
SATA
  • 1 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 4 USB 2.0 port(s) (4 via header)
  • 4 USB 3.1 Gen2 port(s) (4 rear type A)
Video Output
  • 1 HDMI port(s), 1 48-bit LVDS port(s), 1 DP++(Dual-Mode DisplayPort) port(s)
Serial Port
  • 6 COM Port(s) (6 header), (4 x RS232, 2 RS232/422/485, RS-485 supports Auto flow control)
TPM
  • 1 TPM Chip
Others
  • 1 HD Audio header Mic-in/Headphone-out (Audio only support at 0~60C)
  • 1 8-bit GPIO header
  • 1 SMBus header
  • 1 System Fan
Expansion Slots
PCIe
  • N/A
M.2
  • Key: B-Key, M-Key, E-Key
  • M.2 2242/3042/2280 B-Key (USB3.0/2.0 x 1,SATA Gen3 x 1) with nano SIM holder;M.2 2230 E-Key (CNVi/PCIe 3.0 x1/USB2);M.2 2242/2280 M-Key (PCIe 3.0 x4,SATA Gen3 x 1), NVMe support
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.2
  • SMBIOS 3.0 or later
  • UEFI 2.7
  • PCI FW 3.0
Management
Software
  • SuperDoctor® 5, AMT, vPro, Watchdog
System Management Software
  • SuperDoctor 5
Power Configurations
  • ACPI Power Management, CPU thermal trip support for processor protection, +12-24V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper
PC Health Monitoring
Voltage
  • VBAT, System temperature, System level control, Monitors CPU voltages, 3.3V standby, 1.2V (VDIMM), +5V, +3.3V, +12V
LED
  • Standby alert LED
Temperature
  • CPU thermal trip support
FAN
  • 1x 4-pin fan header (up to 1 fan)
  • Thermal control tachometer fan connectors
  • System level control
  • PWM fan speed control
  • Low noise fan speed control
  • Fan speed control
Other Features
  • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 8-pin 12-24V DC Power Connector
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
Resources
Servers (Optimized for X11SWN-E)
SYS-E102-9W-E
...
Chassis
SCE102
...
  1. = Optimized SuperServer Chassis
  2. = Optimized Global Chassis
  3. Blue color = Compatible Chassis
  4. = Compatible Global Chassis
Component Options
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Software
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List

X11SWN-E
