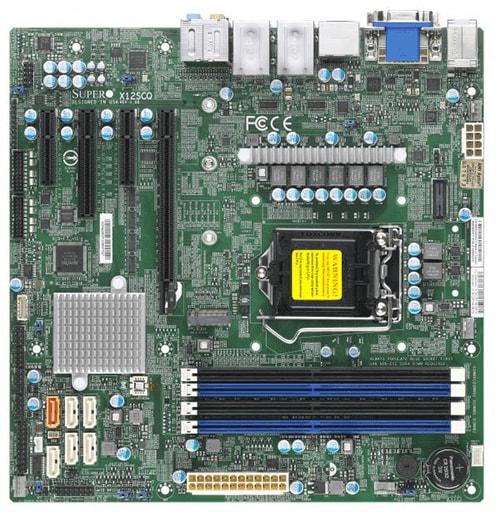

X12SCQ

X12SCQ
Embedded
High Performance
vPro AMT

Key Features


  1. 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor
    Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
  2. Intel® Q470E
  3. Intel® Q470 controller for 6 RAID 0,1,5,10
  4. Single LAN with Intel® PHY I219LM LAN controller
    Single LAN with Intel® Ethernet Controller I210-AT
  5. Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
  6. 1 PCIe 3.0 x16 (in x16 slot),
    1 PCIe 3.0 x8,
    2 PCIe 3.0 x4
    M.2 Interface: 1 PCIe 3.0 x4, RAID 0 & 1
    M.2 Form Factor: 2242/2280
    M.2 Key: M-Key
  7. 1 VGA port, 1 HDMI port, 1 DP (DisplayPort) port, 1 DVI - D port
...
...
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X12SCQ
Physical Stats
Form Factor
  • Micro-ATX
Dimension
  • 9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
  • 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor
  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Core
  • Up to 10 cores
Note
  • **The X12SCQ does not support the Intel 10th/11th generation processor 2M cache SKUs. These processors will not boot with the latest BIOS version.
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MT/s
Memory Type
  • 2933/2666/2400/2133 MT/s
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® Q470E
SATA
  • Intel® Q470 controller for 6 ports; RAID 0,1,5,10
Audio
  • ALC 888S HD Audio
Graphics
  • 1 Intel® HD Graphics port(s)
Network Controllers
  • Single LAN with Intel® PHY I219LM LAN controller
  • Single LAN with Intel® Ethernet Controller I210-AT
Input / Output
SATA
  • 6 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 3.1 Gen2 port(s) (2 via header; 2 rear type A; 2 rear type C)
  • 6 USB 2.0 port(s) (4 via header; 2 rear)
Video Output
  • 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s)
Serial Port
  • 4 COM Port(s) (4 header)
TPM
  • 1 TPM TPM 2.0 onboard
Expansion Slots
PCIe
  • 2 PCIe 3.0 x4,
  • 1 PCIe 3.0 x16 (in x16 slot),
  • 1 PCIe 3.0 x8
M.2
  • M.2 Interface: 1 PCIe 3.0 x4, RAID 0 & 1
  • Form Factor: 2242/2280
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.1
  • SMBIOS 3.0 or later
  • PCI FW 3.0
  • UEFI 2.7
  • RTC (Real Time Clock) Wakeup
Management
Power Configurations
  • ATX Power connector
PC Health Monitoring
Voltage
  • VBAT, 4 fans with tachometer monitoring, 4 -fan status, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V
LED
  • Power LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
FAN
  • 4x 4-pin fan headers (up to 4 fans)
  • 4 fans with tachometer monitoring
Other Features
  • RoHS
  • M.2 NGFF connector
  • Chassis intrusion detection
  • ATX Power connector
  • ACPI power management
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
