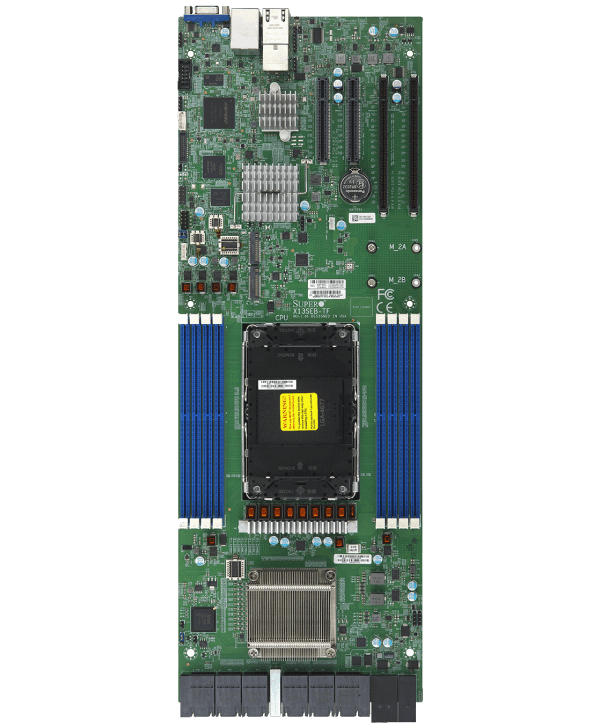

X13SEB-TF

X13SEB-TF
SBB

Key Features


  1. 5th/4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
  2. Intel C741® Chipset
  3. Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 8 DIMM slots
  4. 2 PCIe 5.0 x8
    2 PCIe 5.0 x16
    M.2 Interface: 2 PCIe 3.0 x4
    M.2 Form Factor: 2280, 22110
    M.2 Key: M-Key
  5. Dual LAN with 10GbE with Intel® X710
  6. 2 USB 3.0 (2 rear)
  7. I/O: 1 VGA, 1 TPM header
...
...

Optimized Servers


SSG-221E-DN2R24R
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X13SEB-TF
Physical Stats
Form Factor
  • Proprietary SBB
Dimension
  • 6.4" x 17.2" (16.256cm x 43.688cm)
Processor
CPU
Core
  • Up to 64 cores
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s
  • *24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel® Xeon-SP CPU.
Memory Type
  • 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
DIMM Sizes
  • 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel® C741
IPMI
  • ASPEED AST2600 BMC
Network Controllers
  • N/A
Input / Output
SATA
  • 10 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 10 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.1 Gen1 port(s) (2 rear)
Video Output
  • VGA D-Sub Connector port(s)
Serial Port
  • 1 COM Port(s) (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 2 PCIe 5.0 x8,
  • 2 PCIe 5.0 x16
M.2
  • M.2 Interface: 2 PCIe 3.0 x4
  • Form Factor: 2280, 22110
  • Key: M-Key
System BIOS
BIOS Type
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, +5V standby, +5V, +3.3V, +12V
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
FAN
  • Fan speed control
Other Features
  • WOL, UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, ACPI power management
