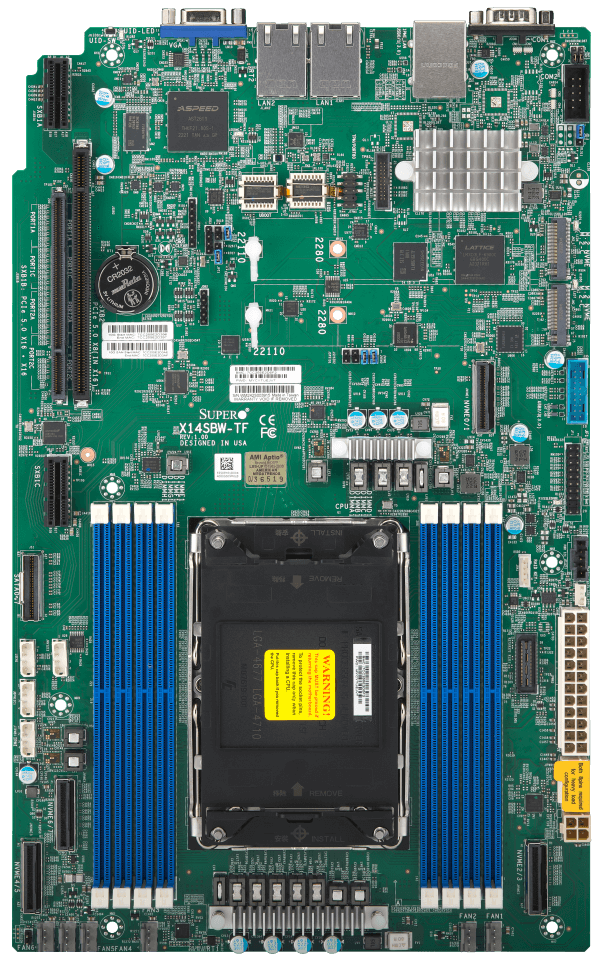

X14SBW-TF

X14SBW-TF

Key Features


  1. Intel® Xeon® 6700-series processors with E-cores, Single Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP
  2. Up to 1TB ECC RDIMM DDR5-6400MT/s in 8 DIMM slots
  3. 4 PCIe 5.0 X8 via MCIO connectors
  4. 1 PCIe 5.0 x8 (WIO-R),
    2 PCIe 5.0 x16 (WIO-L),
    M.2 Interface: 2 PCIe 5.0 x2
    M.2 Form Factor: 2280, 22110
    M.2 Key: M-Key
  5. Dual LAN with 10GBase-T with Intel®X550
  6. Onboard TPM2.0
  7. 4 USB 3.2 Gen1(2 rear, 2 via header), 8 SATA3 (via SlimSAS x8)
...
...

Optimized Servers


SYS-112B-FWT
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X14SBW-TF
Physical Stats
Form Factor
  • Proprietary WIO
Dimension
  • 8" x 13" (20.32cm x 33.02cm)
Processor
CPU
Core
  • Up to 144 (E) cores
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 1TB ECC Registered RDIMM, DDR5-6400MT/s
Memory Type
  • 6400 MT/s ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC)
DIMM Sizes
  • 32GB, 64GB, 96GB, 128GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
SATA
  • ASMediaASM1164 controller for 8 SATA3 ports
IPMI
  • ASPEED AST2600 BMC
Network Controllers
  • Dual LAN with 10GBase-T with Intel® X550
Input / Output
SATA
  • 8 SATA3 port(s)
LAN
  • 2 RJ45 10 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
TPM
  • 1 TPM Header
  • 1 TPM TPM 2.0 onboard
Expansion Slots
PCIe
  • 1 PCIe 5.0 x8 Right Riser (in x16) slot,
  • 1 PCIe 5.0 x32 Left Riser Slot,
  • 4 PCIe 5.0 x8 PCIe5.0 MCIO connector
M.2
  • M.2 Interface: 2 PCIe 5.0 x2
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI 64MB AMI UEFI
BIOS Features
  • ACPI 6.5
  • SMBIOS 3.7 or later
  • UEFI 2.9
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • Fan speed control
  • Overheat LED indication
Other Features
  • WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
Resources
Servers (Optimized for X14SBW-TF)
SYS-112B-FWT
...
Component Options
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Software
BMC Firmware
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List

X14SBW-TF New
