SuperServer ARS-210M-NR (Complete System Only)

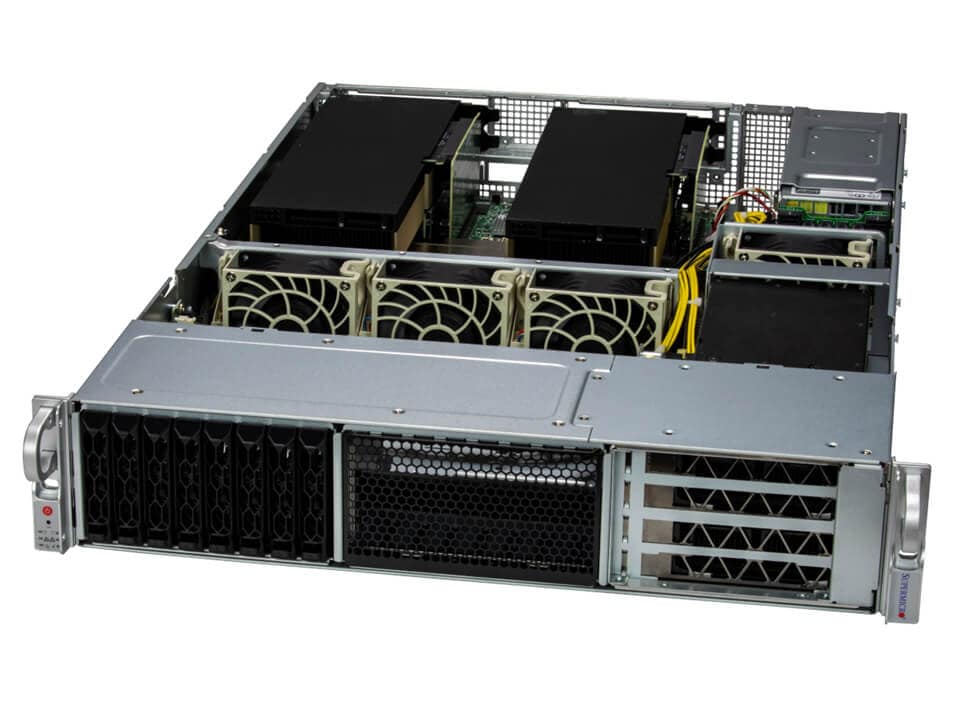

ARS-210M-NR Main ARS-210M-NR Angle ARS-210M-NR Top ARS-210M-NR Front ARS-210M-NR Rear ARS-210M-NR Opt
Integrated Board: R12SPD-A
Learn more

Key Applications

  • High Performance Computing
  • Immersive Media
  • Cloud Gaming / AICAN
  • AI Inference / Training
  • Dense-VDI
  • Video-on-Demand

Key Features

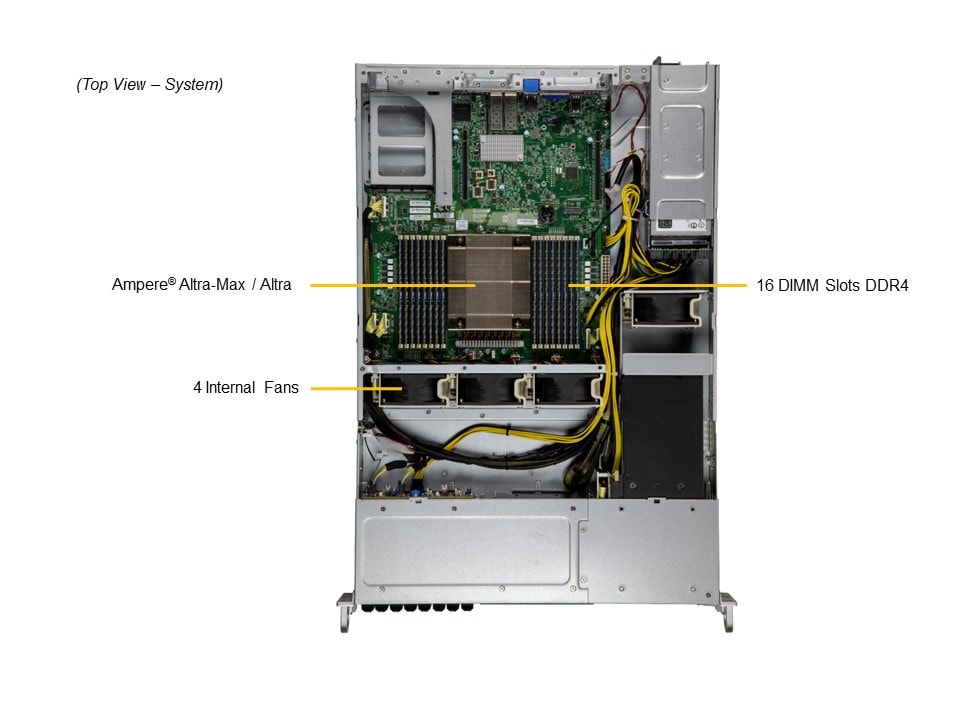

  1. Single Socket Ampere® Altra® Processor (Up to 80 Cores; Up to 3.3Ghz) / Single Socket Ampere® Altra® Max Processor (Up to 128 Cores; Up to 3.0Ghz) ; Up to 250W TDP
  2. 16 DIMMs; Up to 4TB ECC Registered DDR4-3200MHz RDIMM/LRDIMM
  3. Supports up to 4 PCIe 4.0 x16 Double Wide GPU Cards (Up to 300W per GPU), 1 PCIe 4.0 x16 LP Slot, 1 AIOM Slot (OCP3.0 Mezzanine Compatible)
  4. 2x 25Gb LAN SFP28 Ports via Mellanox ConnectX®-4 Lx EN Controller

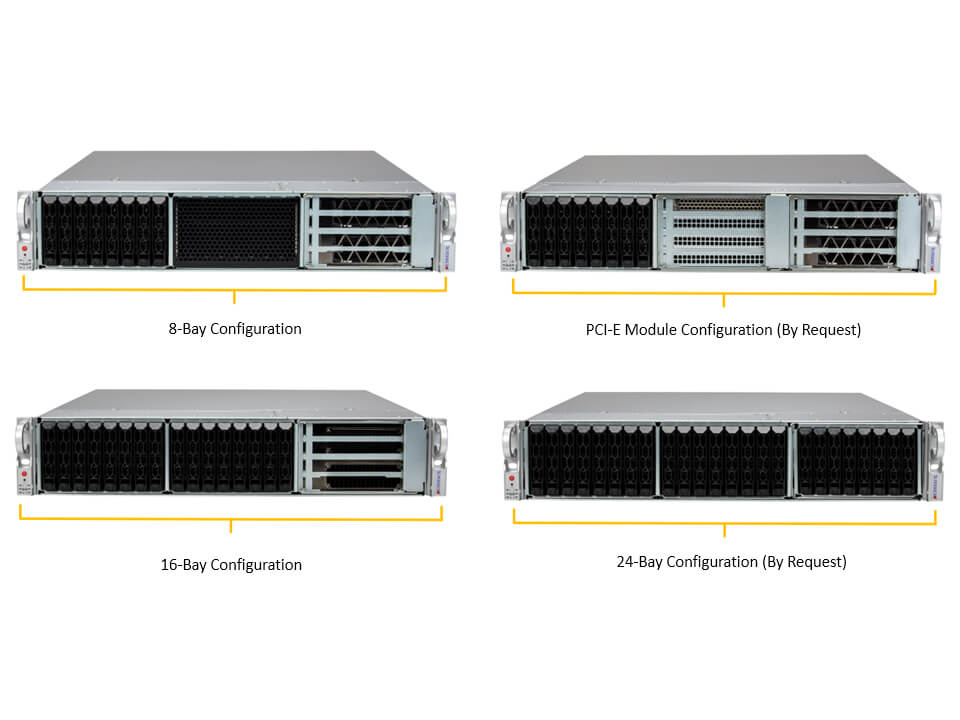

  5. 4x 2.5" U.2 NVMe Hot-Swap Drive Bays (Options available for up to 16 or 24 Drive Bays via a Modular Bay Design)
  6. 2000W Redundant Titanium Level high-efficiency power supplies
  7. 1 VGA, 1 (Serial) Micro USB Port, 2 USB3.0 (2 Rear)
...
...
ARS-210M-NR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
ARS-210M-NR
Motherboard
Super R12SPD-A
Processor
CPU
  • Single FCLGA-4926
  • Ampere® Altra® / Altra® Max processor
Note
  • Supports 65W - 250W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width GPUs
Supported GPU
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

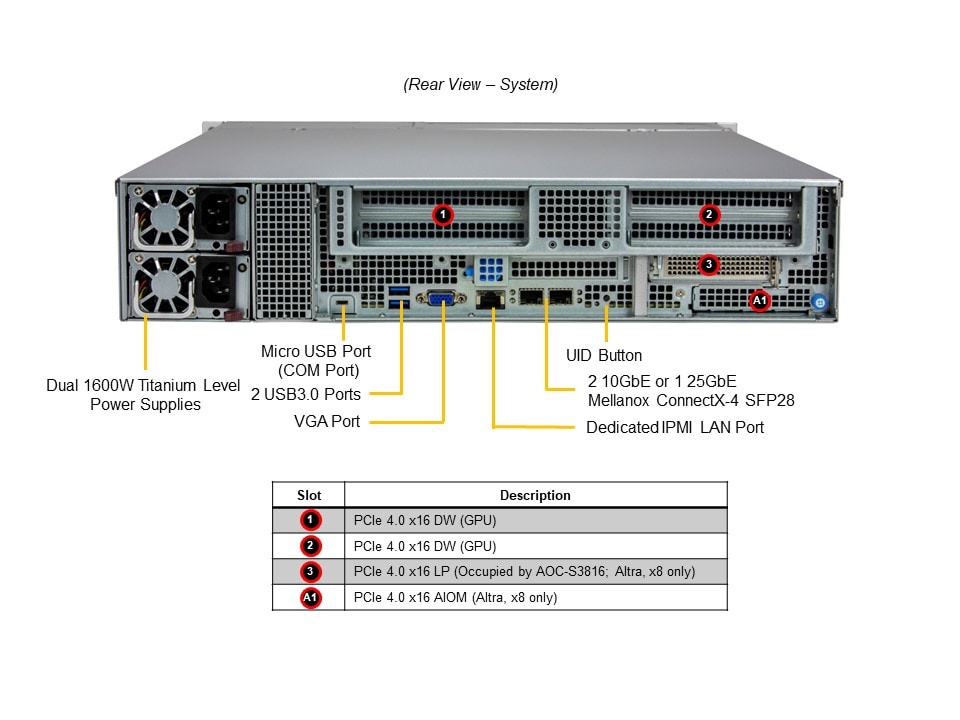

Input / Output
LAN
  • 2 SFP28 25 GbE LAN ports
  • 1 RJ45 1 GBASE-T Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
Serial
  • 1 port
Management
Software
Power configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-LB26TS-R0AMBNDP
Dimensions and Weight
Height
  • 3.5" (88.9 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.5" (648 mm)
Package
  • 11" (H) x 26.5" (W) x 34" (D)
Weight
  • Gross Weight: 59 lbs (26.76 kg)
  • Net Weight: 35.3 lbs (16 kg)
Available Color
  • Black
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 4 PCIe 4.0 x16 FHFL slots
    • 1 PCIe 4.0 x16 LP slot
    • 1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible)
  • View AOC Options

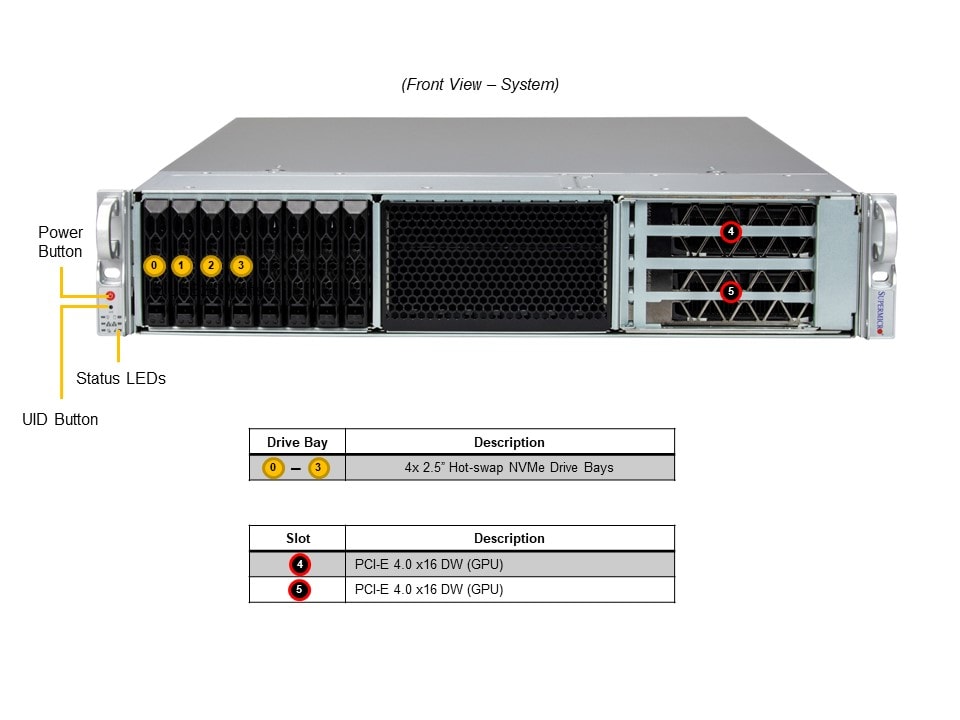

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays
    • 4 front hot-swap 2.5" NVMe drive bays
  • Option A: Total 16 bays
    • 16 front hot-swap 2.5" SAS*/SATA* drive bays
  • (*SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 4 Heavy Duty 8cm Fan(s)
Power Supply
2x 2000W
2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
AC Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc
2000W: 230-240Vac
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for China only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
12V SBMax: 3.5A / Min: 0A
Max: 3.5A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% ()
  • Non-operating Relative Humidity: 5% to 95% ()
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
3816 HBA Card AOC-S3816L-L16iT 1 Supermicro 12Gb/s 16-Port SAS Internal HBA Adapter
CBL-SAST-1261-100 • 2 Slimline x8 (STR) to 2x Slimline x4 (STR),60/60CM,100
AIOM Network Card AOC-A25G-m2SM 1 OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Mellanox® CX-6 LX
GPU power cable CBL-PWEX-1040 • 1 GPU power cable for A10
CBL-PWEX-1364-26 1 Short length 12pin to 8pin MicroHi, install GPUs in front GPU bays or GPU slot 1, 4 and 5(L40. L40S and H100)
CBL-PWEX-1364-50 1 Long length 12pin to 8pin MicroHi, install GPUs in front GPU bays or GPU slot 2 only(L40. L40S and H100)
M.2 Tray AOC-SLG3-2M2 1 Low Profile, Dual NVMe M.2 SSD PCIe add-on card
