8U

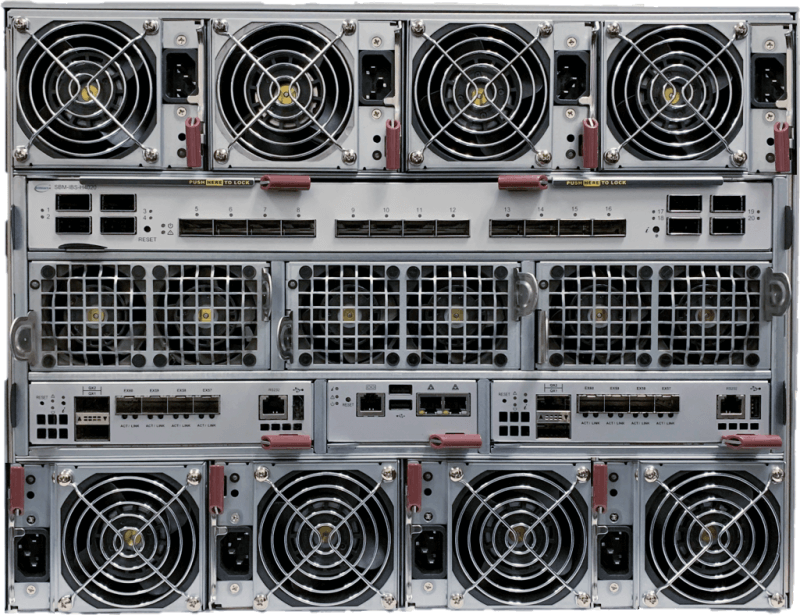

  • SBE-820H2
  • 8U
Processor Blade
  • Up to 20 half-height 2-socket blade servers
LED
  • Power LED, Fault LED
Networking
  • Infiniband HDR Switch – Support for 1x 200Gbps module
  • Ethernet Switch – Up to 2x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • 1 CMM for remote system management with software
  • Management Module must be purchased separately
Power Supplies
  • Up to 8 hot-plug 3000W Titanium power supplies
Cooling Design
  • Up to 8 cooling fans in PWS modules
  • 3 optional cooling fan modules (PWS-DF005-2F & PWS-DF006-2F)
Dimensions (HxWxD)
  • 14" x 17.6" x 32"
Available Models
  • SBE-820H2-830 - Enclosure with 8 hot-plug 3000W Titanium (96% efficiency) power supplies
  • SBE-820H2-822 - Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies
  • SBE-820H2-630 - Enclosure with 6 hot-plug 3000W Titanium (96% efficiency) power supplies
  • SBE-820H2-622 - Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies
Downloads

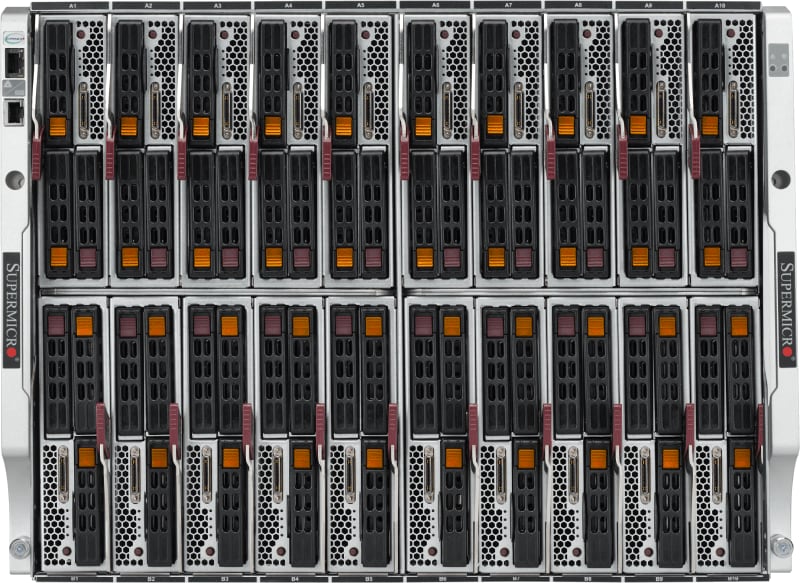

  • SBE-820H
  • 8U
Processor Blade
  • Up to 20 half-height 2-socket blade servers
LED
  • Power LED, Fault LED
Networking
  • Infiniband HDR Switch – Support for 1x 200Gbps module
  • Ethernet Switch – Up to 2x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • 1 CMM for remote system management with software
  • Management Module must be purchased separately
Power Supplies
  • Up to 8 hot-plug 2200W Titanium power supplies
Cooling Design
  • Up to 8 cooling fans in PWS modules
  • 3 optional cooling fan modules (PWS-DF005-2F)
Dimensions (HxWxD)
  • 14" x 17.6" x 32"
Available Models
  • SBE-820H-822 - Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

  • SBE-820H-622 - Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies
Downloads

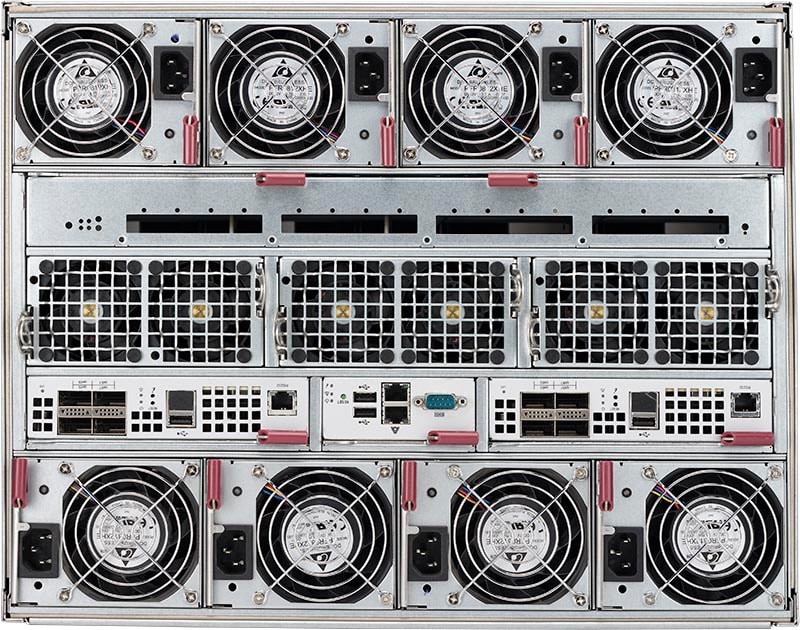

  • SBE-820C
  • 8U
Processor Blade
  • Up to 20 half-height 2-socket blade servers
  • Up to 10 full-height 4-socket blade servers
LED
  • Power LED, Fault LED
Networking
  • Infiniband EDR or OPA Switch – Support for 1x 100Gbps switch
  • Ethernet Switch – Up to 2x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • 1 CMM for remote system management with software
  • Management Module must be purchased separately
Power Supplies
  • Up to 8 hot-plug 2200W Titanium power supplies
Cooling Design
  • Up to 8 cooling fans in PWS modules
  • 3 optional cooling fan modules (PWS-DF005-2F)
Dimensions (HxWxD)
  • 14" x 17.6" x 32"
Available Models
  • SBE-820C-822 - Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

  • SBE-820C-622 - Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans

  • SBE-820C-422 - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4 cooling fans

  • SBE-820CB-422 (EOL) - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + four 1200W BBP

Downloads

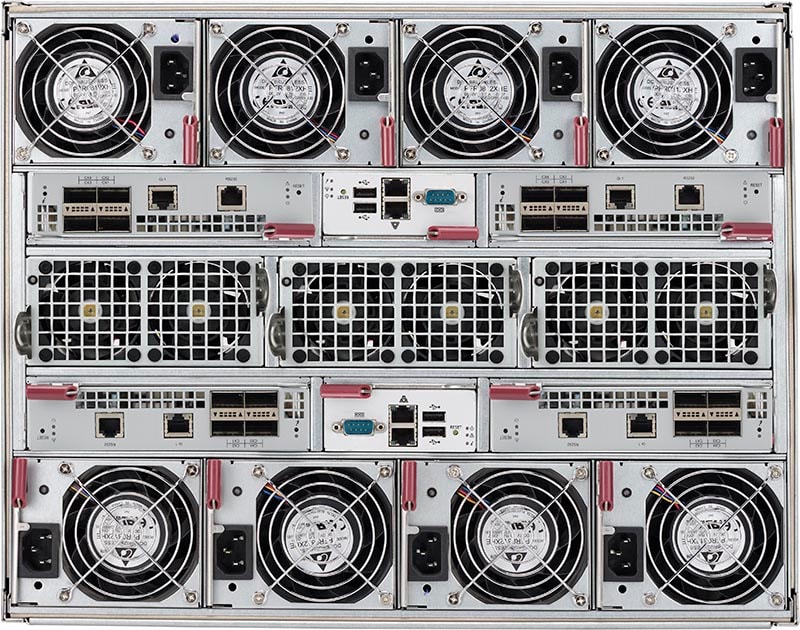

  • SBE-820J
  • 8U
Processor Blade
  • Up to 20 half-height 2-socket blade servers
  • Up to 10 full-height 4-socket blade servers
  • Mixed blade servers in a single enclosure
LED
  • Power LED, Fault LED
Networking
  • Ethernet Switch – Up to 4x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • Up to 2 CMMs for remote system management with software
  • Management Module(s) must be purchased separately
Power Supplies
  • Up to 8 hot-plug 2200W Titanium power supplies
Cooling Design
  • Up to 8 cooling fans in PWS modules
  • 3 optional cooling fan modules (PWS-DF005-2F)
Dimensions (HxWxD)
  • 14" x 17.6" x 32"
Available Models
  • SBE-820J-822 - 25G Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

  • SBE-820J-622 - 25G Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans

  • SBE-820J-422 - 25G Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4 cooling fans

  • SBE-820JB-422 (EOL) - 25G Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4x 1200W BBP

  • SBE-820J-820D (EOL) - Enclosure with 8 hot-plug 2000W DC power supplies
    • DC Power cables (CBL-PWEX-0980-1) must be purchased separately

Downloads
  • SBE-820J2
  • 8U
Processor Blade
  • Up to 20 half-height 2-socket blade servers
  • Up to 10 full-height 4-socket blade servers
  • Mixed blade servers in a single enclosure
LED
  • Power LED, Fault LED
Networking
  • Ethernet Switch – Up to 4x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • Up to 2 CMMs for remote system management with software
  • Management Module(s) must be purchased separately
Power Supplies
  • Up to 8 hot-plug 2200/3000W Titanium power supplies
Cooling Design
  • Up to 8 cooling fans in PWS modules
  • 3 optional cooling fan modules (PWS-DF005-2F)
Dimensions (HxWxD)
  • 14" x 17.6" x 32"
Available Models
  • SBE-820J2-630 - Up to 6 hot-swappable 3000W Titanium (96% efficiency) power supplies
  • SBE-820J2-830 - Up to 8 hot-swappable 3000W Titanium (96% efficiency) power supplies
  • SBE-820J2-422 - Up to 4 hot-swappable 2200W Titanium (96% efficiency) power supplies
  • SBE-820J2-622 - Up to 6 hot-swappable 2200W Titanium (96% efficiency) power supplies
  • SBE-820J2-822 - Up to 8 hot-swappable 2200W Titanium (96% efficiency) power supplies
Downloads

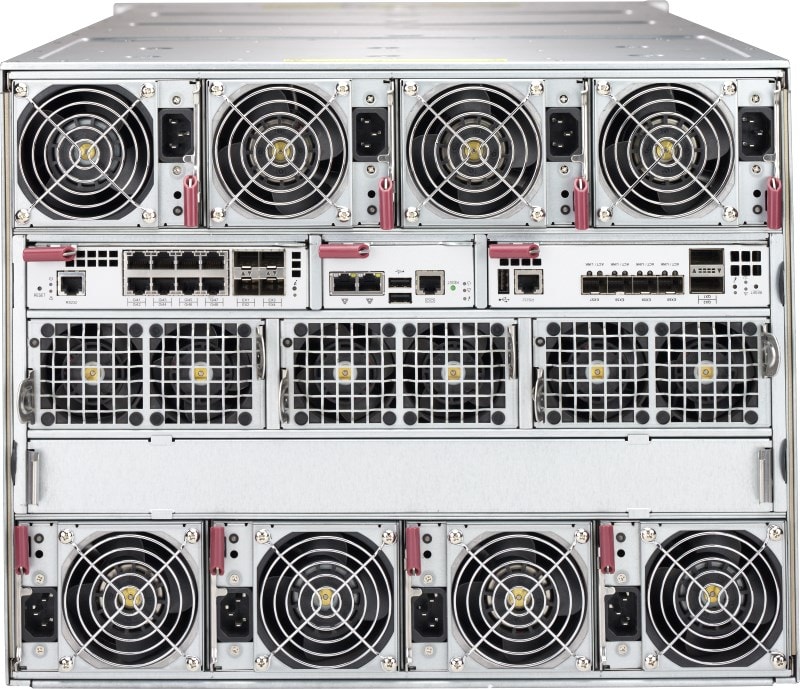

  • SBE-820L
  • 8U
Processor Blade
  • Up to 20 half-height 2-socket blade servers
  • Up to 10 full-height 4-socket blade servers
  • Mixed blade servers in a single enclosure
LED
  • Power LED, Fault LED
Networking
  • Ethernet Switch – Up to 2x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • 1 CMM for remote system management with software
  • Management Module must be purchased separately
Power Supplies
  • Up to 8 hot-plug 2200W Titanium power supplies
Cooling Design
  • Up to 8 cooling fans in PWS modules
  • 3 optional cooling fan modules (PWS-DF005-2F)
Dimensions (HxWxD)
  • 14" x 17.6" x 32"
Available Models
  • SBE-820L-822 - Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

  • SBE-820L-622 - Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies

  • SBE-820L-422 - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies

Downloads
6U

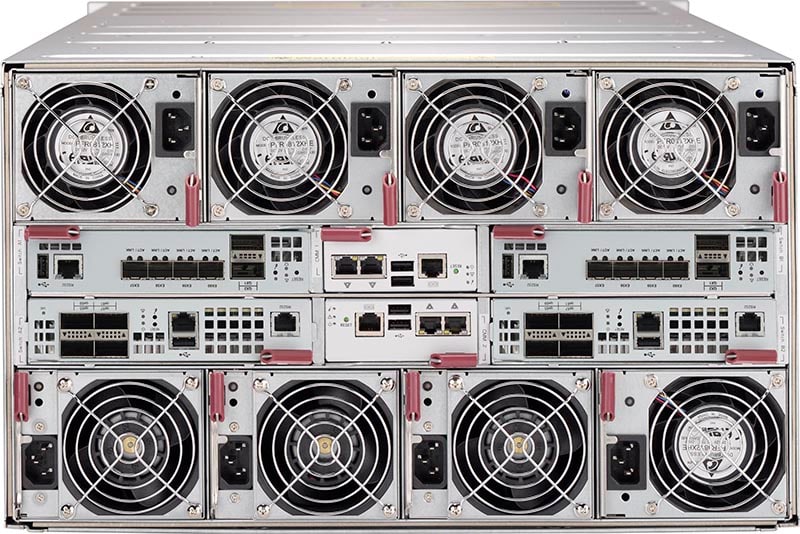

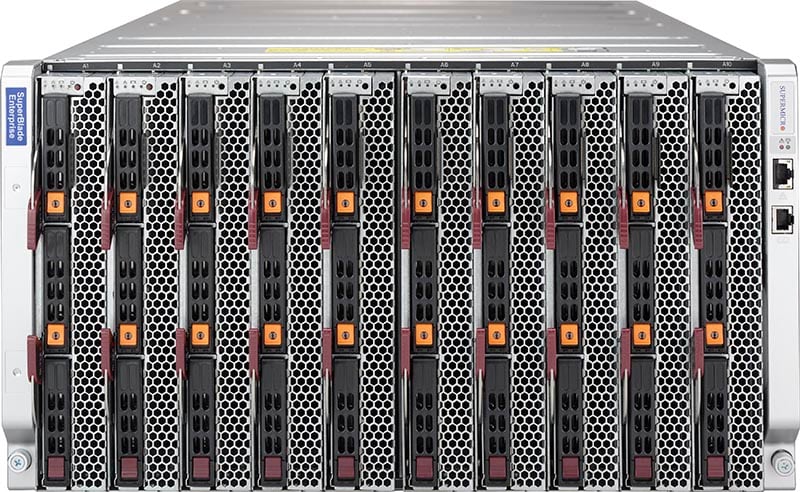

  • SBE-610J
  • 6U
Processor Blade
  • Up to 10x 1-socket blade servers
  • Up to 10x 2-socket blade servers
LED
  • Power LED, Fault LED
Networking
  • Ethernet Switch – Up to 4x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • 2 CMMs for remote system management with software
  • Management Module(s) must be purchased separately
Power Supplies
  • Up to 8 hot-plug 2200W Titanium power supplies
Cooling Design
  • Up to 8 cooling fans in PWS modules
Dimensions (HxWxD)
  • 10.5" x 17.6" x 32"
Available Models
  • SBE-610J-822 - Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

  • SBE-610J-622 - Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans

  • SBE-610J-422 - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4 cooling fans

  • SBE-610JB-422 (EOL) - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + four 1200W BBP

Downloads
  • SBE-610J2
  • 6U
Processor Blade
  • Up to 10 hot-swappable full-height single-width 1-socket or 2-socket blade servers
  • Up to 5 hot-swappable full-height double-width 1-socket or 2-socket blade servers
LED
  • Power LED, Fault LED
Networking
  • Ethernet Switch – Up to 4x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • 2 CMMs for remote system management with software
  • Management Module(s) must be purchased separately
Power Supplies
  • Up to 8 hot-plug 2200/3000W Titanium power supplies
Cooling Design
  • Up to 8 cooling fans in PWS modules
Dimensions (HxWxD)
  • 10.5" x 17.6" x 32"
Available Models
  • SBE-610J2-430 - Up to 4 hot-swappable 3000W Titanium (96% efficiency) power supplies
  • SBE-610J2-630 - Up to 6 hot-swappable 3000W Titanium (96% efficiency) power supplies
  • SBE-610J2-830 - Up to 8 hot-swappable 3000W Titanium (96% efficiency) power supplies
  • SBE-610J2-422 - Up to 4 hot-swappable 2200W Titanium (96% efficiency) power supplies
  • SBE-610J2-622 - Up to 6 hot-swappable 2200W Titanium (96% efficiency) power supplies
  • SBE-610J2-822 - Up to 8 hot-swappable 2200W Titanium (96% efficiency) power supplies
Downloads

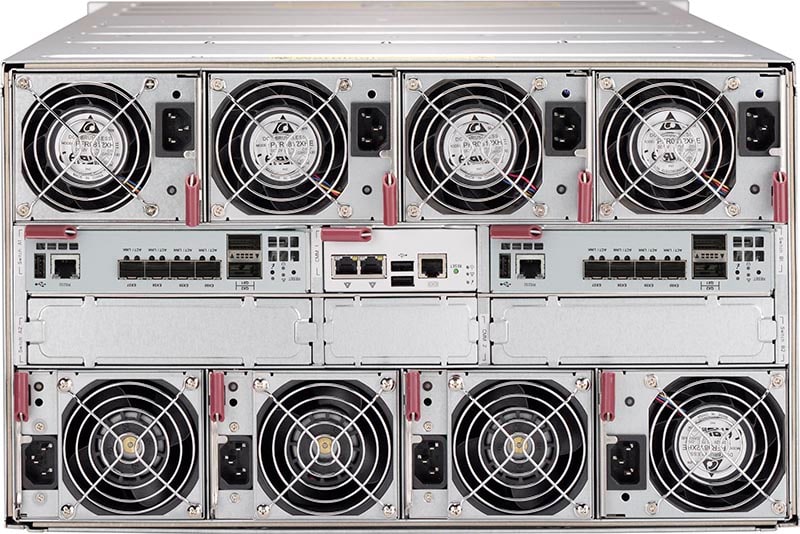

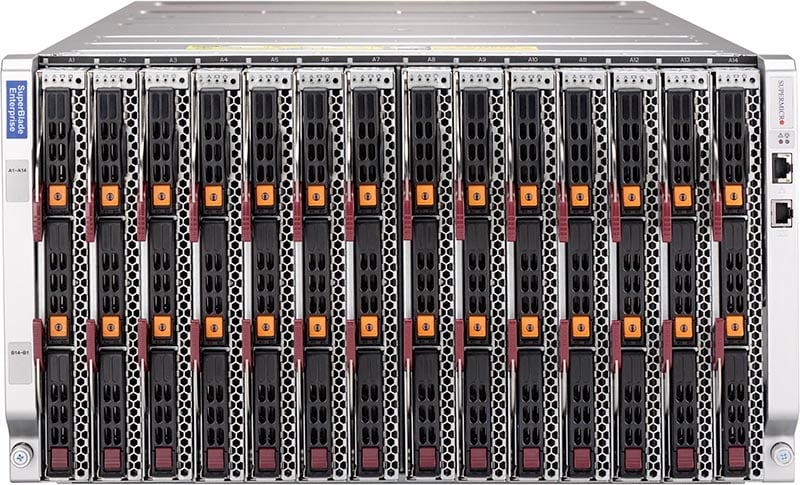

  • SBE-614E
  • 6U
Processor Blade
  • Up to 14x 1-socket blade servers
  • Up to 14x 2-socket blade servers
LED
  • Power LED, Fault LED
Networking
  • Ethernet Switch – Up to 2x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • 1 CMM for remote system management with software
  • Management Module must be purchased separately
Power Supplies
  • Up to 8 hot-plug 2200W Titanium power supplies
  • Battery Backup Enabled (SBE-614EB-422 SKU only)
Cooling Design
  • Up to 8 cooling fans in PWS modules
Dimensions (HxWxD)
  • 10.5" x 17.6" x 32"
Available Models
  • SBE-614E-822 - Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

  • SBE-614E-622 - Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans

  • SBE-614E-422 - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4 cooling fans

  • SBE-614EB-422 (EOL) - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4x 1200W BBP

Downloads
4U

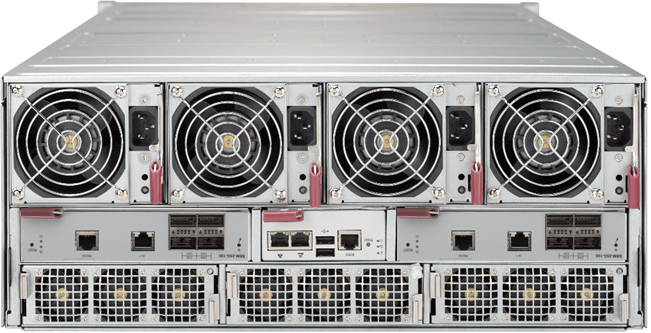

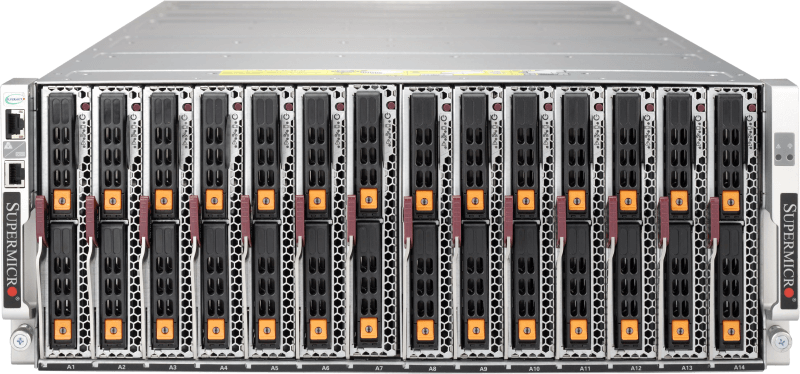

  • SBE-414J
  • 4U
Processor Blade
  • Up to 14x 2-socket blade servers
LED
  • Power LED, Fault LED
Networking
  • Ethernet Switch – Up to 2x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • 1 CMM for remote system management with software
  • Management Module must be purchased separately
Power Supplies
  • Up to 4 hot-plug 2200W Titanium power supplies
Cooling Design
  • Up to 4 cooling fans in PWS modules
  • Includes 3x PWS-DF007-3F system fans Module
Dimensions (HxWxD)
  • 7" x 17.6" x 32"
Available Models
  • SBE-414J-422 - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies
Downloads

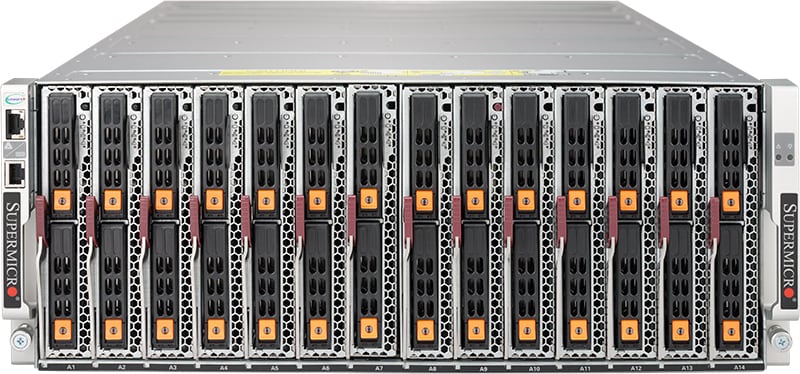

  • SBE-414E
  • 4U
Processor Blade
  • Up to 14x 2-socket blade servers
LED
  • Power LED, Fault LED
Networking
  • Ethernet Switch – Up to 2x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • 1 CMM for remote system management with software
  • Management Module must be purchased separately
Power Supplies
  • Up to 4 hot-plug 2200W Titanium power supplies
  • Battery Backup Enabled (SBE-414EB-222 SKU only)
Cooling Design
  • Up to 4 cooling fans in PWS modules
  • Includes 3x PWS-DF007-3F system fans Module
Dimensions (HxWxD)
  • 7" x 17.6" x 32"
Available Models
  • SBE-414E-422 - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies

  • SBE-414E-222 - Enclosure with 2 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans

  • SBE-414E-420D (EOL) - Enclosure with 4 hot-plug 2000W DC power supplies
    • DC Power cables (CBL-PWEX-0980-1) must be purchased separately

  • SBE-414EB-222 (EOL) - Enclosure with 2 hot-plug 2200W Titanium (96% efficiency) power supplies + 2x 1200W BBP

Downloads
7U (EOL)

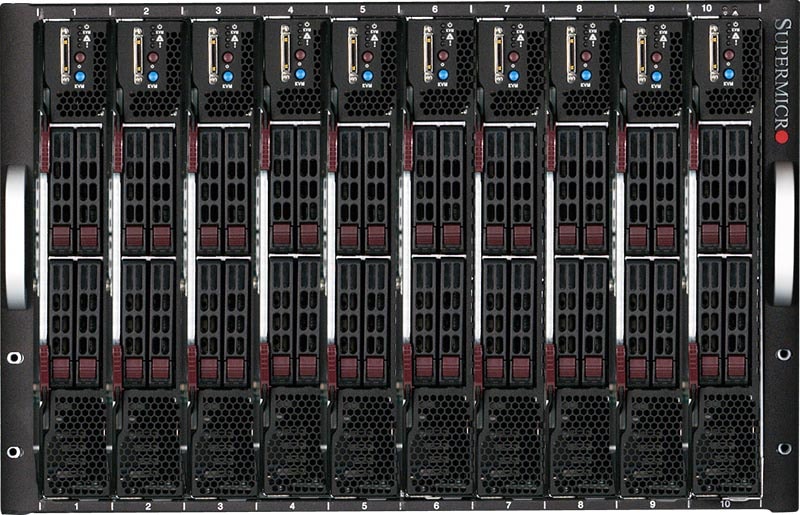

  • SBE-720F
  • EOL
Processor Blade
  • Up to 10 hot-plug Twin processor blades
Module Support
  • Supports Intel based Twinblade®
  • Supports Intel and AMD based 10-blade
LED
  • Power LED, Fault LED
InfiniBand Switch
  • Supports up to two hot-plug IB FDR/QDR switches
  • Switch module not included in the enclosure
GbE Switch / Pass-Through Module
  • Supports up to two hot-plug 1/10 Gigabit Ethernet Layer 2/3 switches Modules
  • Switch modules are not included in the enclosure
Management Module
  • Supports one hot-plug management modules providing remote KVM and IPMI 2.0 functionalities
  • Management module not included in the enclosure
Power Supplies
  • Up to four hot-swap 3000W power supplies, N+1 redundant
Cooling Design
  • Up to 16 cooling fans
Dimensions (HxWxD)
  • 12.1" x 18.5" x 29"
Available Models
  • SBE-720F-R90 (EOL) - Enclosure with four 3000W power supplies

Downloads

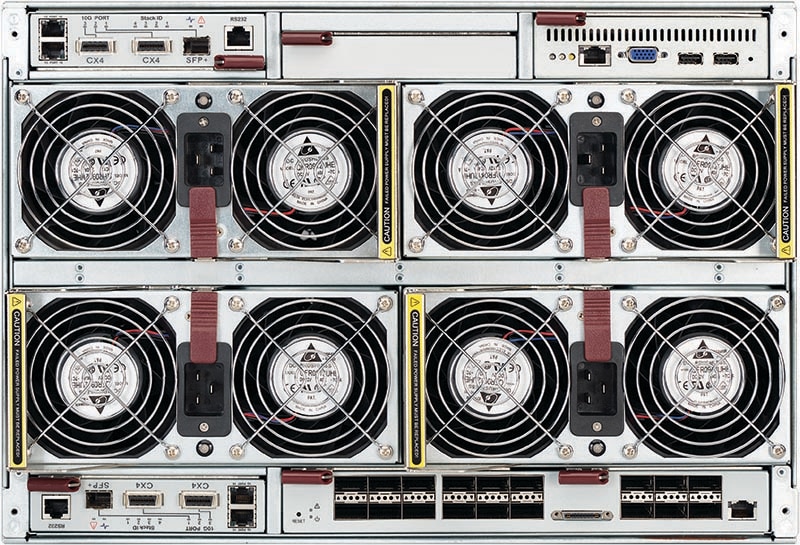

  • SBE-720E
  • EOL
Processor Blade
  • Up to 10 hot-plug Twin processor blades
Module Support
  • Supports Intel based Twinblade®
  • Supports Intel and AMD based 10-blade
LED
  • Power LED, Fault LED
InfiniBand Switch
  • Supports up to two hot-plug IB QDR switches
  • Switch module not included in the enclosure
GbE Switch / Pass-Through Module
  • Supports up to two hot-plug 1/10 Gigabit Ethernet Layer 2/3 switch modules
  • Switch modules are not included in the enclosure
Management Module
  • Supports one hot-plug management modules providing remote KVM and IPMI 2.0 functionalities
  • Management module not included in the enclosure
Power Supplies
  • Up to four hot-swap 2500W / 3000W power supplies, N+1 redundant
Cooling Design
  • Up to 16 cooling fans
Dimensions (HxWxD)
  • 12.1" x 18.5" x 29"
Available Models
  • SBE-720E-R90 (EOL) - Enclosure with four 3000W power supplies

  • SBE-720E-D60 (EOL) - Enclosure with two 3000W power supplies

  • SBE-720E-R75 (EOL) - Enclosure with four 2500W power supplies

  • SBE-720E-D50 (EOL) - Enclosure with two 2500W power supplies

Downloads

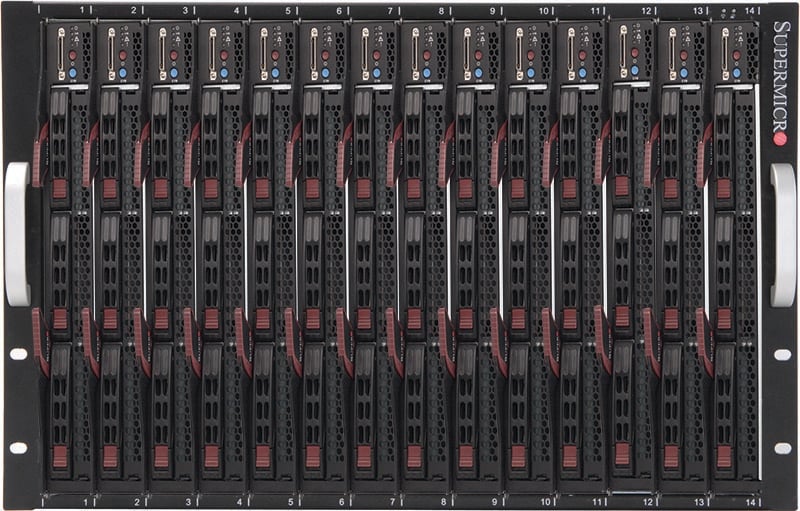

  • SBE-714E
  • EOL
Processor Blade
  • Up to 14 hot-plug processor blades
Module Support
  • Supports Intel based blades
LED
  • Power LED, Fault LED
InfiniBand Switch
  • Supports up to one hot-plug DDR IB switch
  • Switch module not included in the enclosure
GbE Switch / Pass-Through Module
  • Supports up to two hot-plug Gigabit Ethernet switches / Pass-Through Modules
  • Switch modules are not included in the enclosure
Management Module
  • Up to 2 hot-plug management modules providing remote KVM and IPMI 2.0 functionalities
  • One management module comes standard with each enclosure
Power Supplies
  • Up to four hot-swap 1400W / 1620W power supplies, N+1 redundant
Cooling Design
  • Up to 8 cooling fans
Dimensions (HxWxD)
  • 12.1" x 18.5" x 29"
Available Models
  • SBE-714E-R75 (EOL) - Enclosure with four 2500W power supplies

  • SBE-714E-R48 (EOL) - Enclosure with four 1620W power supplies

  • SBE-714E-D32 (EOL) - Enclosure with two 1620W power supplies

Downloads

Certain products may not be available in your region
