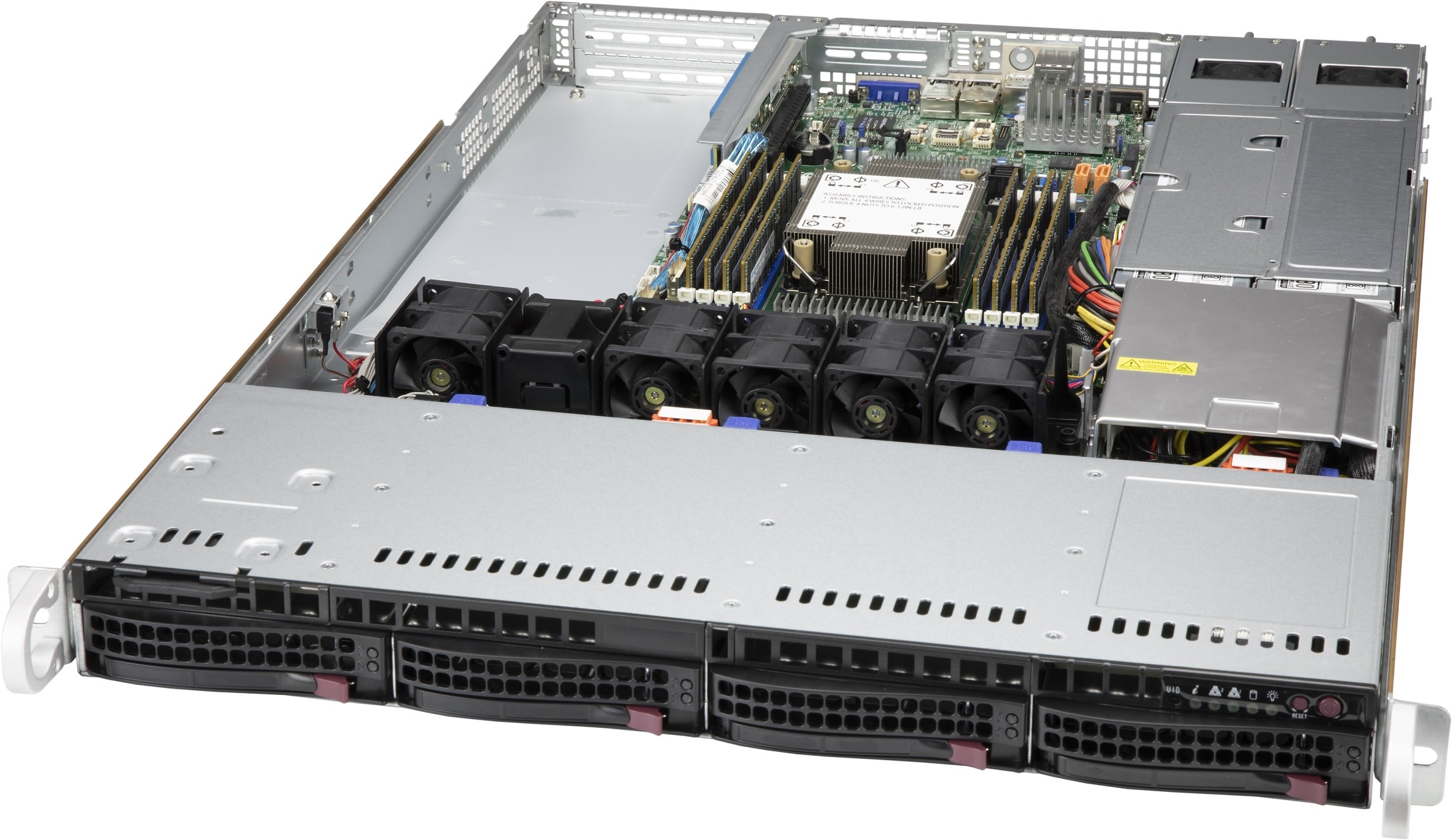

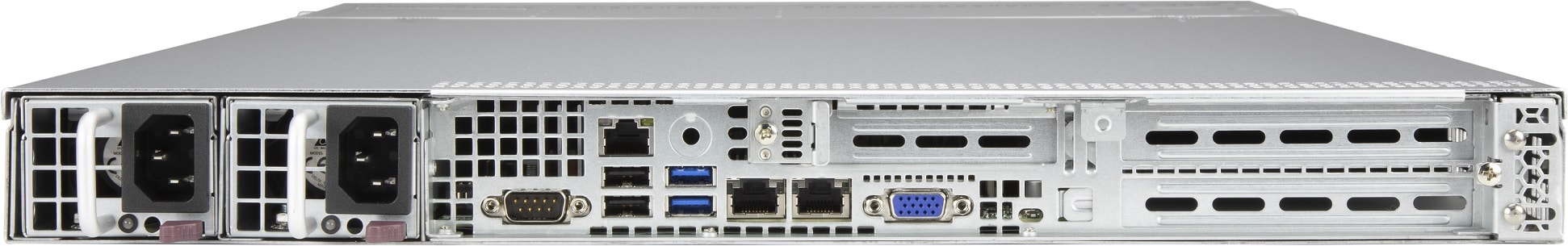

SuperChassis 815TQC4-R504WB3SuperChassis 815TQC4-R504WB3

Key Features


  1. 1U Chassis, Support proprietary WIO MB size 8”x13” and up to 12.3”x13”
  2. 4 x 3.5" hot-swap SAS3/SATA drive bay
    SAS or enterprise SATA HDD only recommended
  3. 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices
  4. 1U 500W/600W redundant single output 80PLUS Platinum
  5. 2 full-height & full-length expansion slot(s) , 1 low-profile expansion slot(s)
  6. 4 x 40x56mm counter-rotation PWM fan(s)
    Optional 2 x fans for AOC cooling
Specifications Resources Parts List
Specifications
Product SKUs
SuperChassis 815TQC4-R504WB3
Form Factor
  • 1U Chassis, Support proprietary WIO MB size 8”x13” and up to 12.3”x13”
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.6" (650 mm)
Gross Weight
  • 36 lbs (16.33 kg)
Packaging (W x H x L)
  • 23.6" (599 mm) x 7.9" (201 mm) x 34.1" (866 mm)
Available Color
  • Black
Expansion Slots
  • 1x Low-profile expansion slot(s)
  • 2x Full-height, Full-length expansion slot(s)
Drive Bays
  • 4x 3.5" hot-swap SAS3/SATA drive bay
  • SAS or enterprise SATA HDD only recommended
Backplane
  • 4-Port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices
Front Panel
Button
  • Power On/Off button
  • System Reset button
  • Unit Identification (UID) button
LED
  • Power status LED
  • HDD activity LED
  • 2 Network Activity LEDs
  • Unit Identification (UID) LED
  • Fan Fail/System Over Heat LED
Systems Cooling
Fans
  • 4x 40x56mm counter-rotation PWM fan(s)
  • Optional 2x fans for AOC cooling
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
1U 500W/600W redundant single output 80PLUS Platinum
Power Efficiency
  • 92%
Total Output Power and Input
  • 600W with Input 200 - 240Vac
  • 500W with Input 100 - 127Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 322 x 54.5 x 40.25 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 50A / Min: 0A (200Vac - 240Vac)
  • Max: 42A / Min: 0A (100Vac - 127Vac)
  • Max: 50A / Min: 0A
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT112-S2424
  • O/P: 12V/54
  • +5V Max: 25A
  • +3.3V Max: 25A
  • -12V Max: 0.6A
Certification
  • Platinum Certified  Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • CCC
  • CE/EMC
  • FCC
  • TUV/CB
  • UL/CUL
