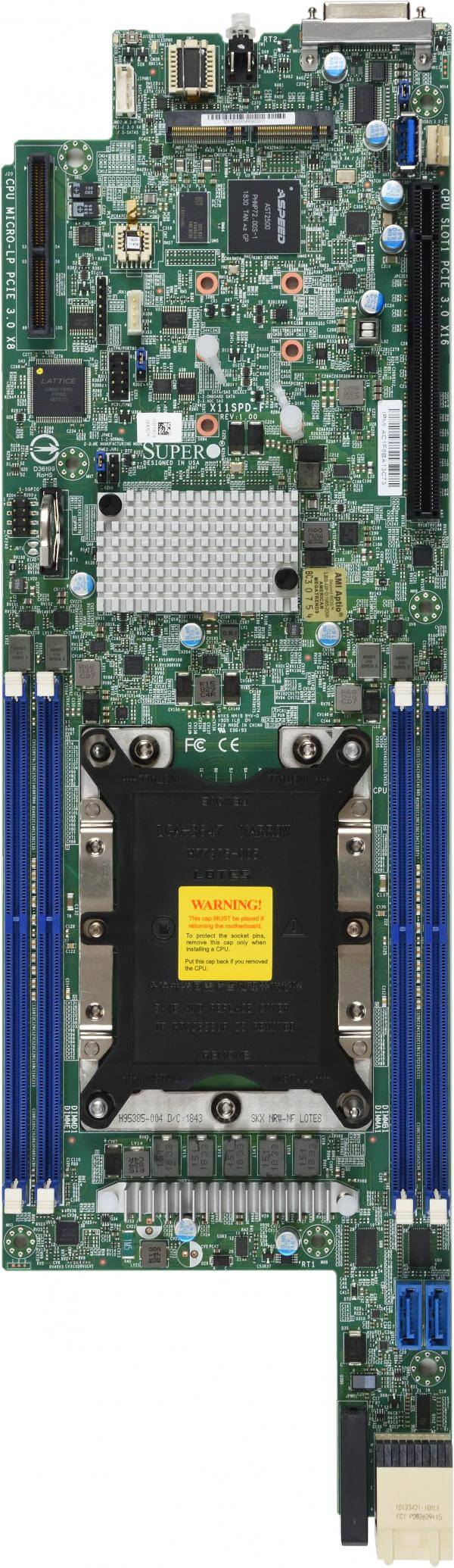

X11SPD-F

MicroCloud

Key Features


  1. 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
    Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 165W TDP
  2. Intel® C621
  3. Up to 1TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 512GB ECC LRDIMM, DDR4-2933MHz, in 4 DIMM slots
  4. 1 PCIe 3.0 x8 (Micro Low Profile),
    1 PCIe 3.0 x16
    M.2 Interface: 2 SATA/PCIe 3.0 x4
    M.2 Form Factor: 2280
    M.2 Key: M-Key
  5. Intel® C621 controller for 2 SATA3 (6 Gbps) ports;
  6. 1 VGA port,
    via KVM Connector
  7. Single LAN with Realtek RTL8211E PHY (dedicated IPMI)
    via Backplane
...
...

Optimized Servers


Specifications Resources Parts List
Specifications
Product SKUs
MBD-X11SPD-F
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 4.66" x 18.5" (11.84cm x 46.99cm)
Processor
CPU
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP
Core
  • Up to 24 cores
Note
  • BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 512GB ECC LRDIMM, DDR4-2933MT/s; Up to 1TB 3DS ECC RDIMM, DDR4-2933MT/s
Memory Type
  • 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (3DS)
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB
  • LRDIMM: 32GB, 64GB, 128GB
  • RDIMM: 8GB, 16GB, 32GB, 64GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C621
SATA
  • Intel® C621 controller for 2 SATA3 (6 Gbps) ports
IPMI
  • ASPEED AST2500
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • 1 ASPEED AST2500 BMC port(s)
  • Via KVM Connector
Network Controllers
  • Single LAN with Realtek RTL8211E PHY (dedicated IPMI), via Backplane
Input / Output
SATA
  • 2 SATA3 (6Gbps) port(s)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 port(s) (2 rear)
  • USB 2.0 via KVM Connector
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 fast UART 16550 Serial
  • 1 COM Port(s) (1 rear), Via KVM Connector
TPM
  • 1 TPM Header
Others
  • 1 KVM Connector for VGA
  • 1 USB 0 and COM Ports
Expansion Slots
PCIe
  • 1 PCIe 3.0 x8 (Micro Low Profile),
  • 1 PCIe 3.0 x16
M.2
  • M.2 Interface: 2 SATA/PCIe 3.0 x4
  • Form Factor: 2280
  • Key: M-Key
System BIOS
BIOS Type
  • 256MB UEFI
Management
Software
  • SuperDoctor® 5, NMI, SUM, KVM with dedicated LAN, IPMI2.0, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, SUM
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss
PC Health Monitoring
Voltage
  • VBAT, System temperature, System level control, Supports system management utility, Monitors CPU voltages, Memory, HT, +5V standby, +5V, +3.3V, +12V, +1.8V, Monitors for CPU Cores, Memory Voltages
LED
  • UID/Remote UID
  • Power LED
  • BMC/IPMI Heartbeat LED
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
  • I2C temperature sensing logic
FAN
  • Thermal control tachometer fan connectors, System level control, PWM fan speed control, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication
Other Features
  • WOL, UID, System level control, RoHS, M.2 NGFF connector, Control of power-on for recovery from AC power loss
Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
