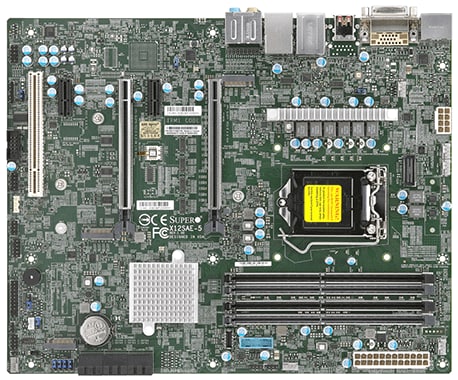

X12SAE-5

Workstation

Key Features


  1. 10th/11th Gen Intel® Core™ i9/i7/i5/i3 Processors, Intel® Xeon® W-1200/W-1300 Processors
    Single Socket LGA-1200 (Socket H5), Up to 125W TDP
  2. Intel® W580
  3. 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
  4. 2 PCIe 4.0 x16 (16/NA or 8/8), 2 PCIe 3.0 x1
    1 PCI 5V 32bit

    M.2 Interface: 1 PCIe 4.0 x4 and 2 PCIe 3.0 x4 (RAID 0, 1)
    M.2 Form Factor: 2280/22110
    M.2 Key: M-Key
    RAID 5 only applied for INTEL Storage Device, M.2-M3 is limited with 10th Gen CPU and W-1200 CPU
  5. Single LAN with Intel® Ethernet i225V
    Single LAN with Intel® PHY I219LM LAN controller
    for AMT/vPro
  6. Intel® W580 controller for 6 SATA3 (6 Gbps) Ports (RAID 0,1,5,10)
  7. 1 DP 1.4a port, 1 HDMI 2.0b port, 1 DVI - D port
...
...

Optimized Servers


Specifications Resources Parts List
Specifications
Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
MBD-X12SAE-5
Physical Stats
Form Factor
  • ATX
Dimension
  • 12" x 9.6" (30.48cm x 24.38cm)
Processor
CPU
  • 10th/11th Gen Intel® Core™ i9/i7/i5/i3 Processors, Intel® Xeon® W-1200/W-1300 Processors
  • Single Socket Socket H5 (LGA-1200) supported, CPU TDP supports Up to 125W TDP
Core
  • Up to 10 cores
System Memory
Memory Capacity
  • 4 DIMM slots
  • 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MT/s
Memory Type
  • 128GB 3200MHz
DIMM Sizes
  • 2GB, 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® W580
SATA
  • Intel® W580 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Audio
  • ALC 888S HD Audio
Network Controllers
  • Single LAN with Intel® PHY I219LM LAN controller
  • Single LAN with Intel® Ethernet i225V
Input / Output
LAN
  • 1 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 2.5 Gigabit Ethernet LAN port
USB
  • 2 USB 2.0 port(s) (2 via header)
  • 4 USB 3.2 Gen2 port(s) (4 rear type A)
  • 2 USB 3.2 Gen1 port(s) (2 via header)
  • 2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header)
Video Output
  • 1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.0b port(s)
Serial Port
  • 1 COM Port(s) (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 2 PCIe 4.0 x16 slots (16/NA or 8/8),
  • 2 PCIe 3.0 x1,
  • 1 PCI PCI 5V 32bit
M.2
  • M.2 Interface: 1 PCIe 4.0 x4, RAID 0 & 1; 2 PCIe 3.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • 256MB SPI Flash with AMI BIOS
BIOS Features
  • ACPI 6.0
  • Plug and Play (PnP)
  • BIOS rescue hot keys
  • Riser card auto-detection support
  • SMBIOS 3.0 or later
Management
System Management Software
  • SuperDoctor 5
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • VBAT, System temperature, PCH temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +1.8V PCH
LED
  • Power LED
  • Catastrophic Error LED
FAN
  • 5x 4-pin fan headers (up to 5 fans)
  • Fan speed control
  • Overheat LED indication
Other Features
  • CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector
Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -20°C - 60°C (-4°F - 140°F)
Resources
Servers (Optimized for X12SAE-5)
Chassis
Component Options
Software
Documentation
Parts List

X12SAE-5
