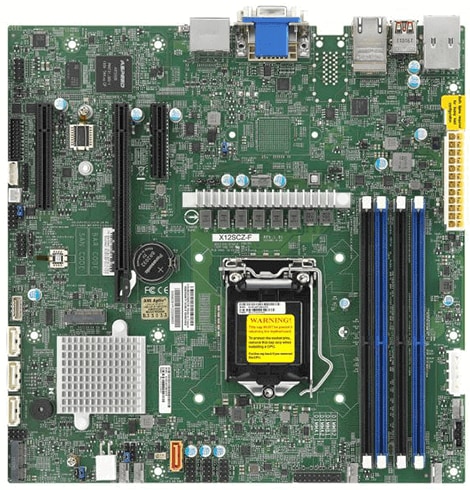

X12SCZ-QF

X12SCZ-QF
High Performance
Embedded
vPro AMT
IPMI

Key Features


  1. 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor
    Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP
  2. Intel® Q470E
  3. Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
  4. 1 PCIe 3.0 x16,
    1 PCIe 3.0 x4 (in x8 slot),
    1 PCIe 3.0 x4
    1 M.2 M-Key SATA/PCIe 3.0 x4, 2280/22110
    1 M.2 E-Key CNVi/PCIe 3.0 x1, 2230
  5. Single LAN with Intel® PHY I219LM LAN controller
    Single LAN with Intel® Ethernet Controller I210-AT
  6. Intel® Q470E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  7. 1 VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port
...
...
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X12SCZ-QF
Physical Stats
Form Factor
  • Micro-ATX
Dimension
  • 9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
  • 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor
  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
  • A graphic integrated CPU is required to have onboard video from the DVI and DP ports
Core
  • Up to 10 cores
Note
  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
    **The X12SCZ does not support the Intel 10th/11th generation processor 2M cache SKUs. These processors will not boot with the latest BIOS version.
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MT/s
Memory Type
  • 2933/2666/2400/2133 MT/s
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® Q470E
SATA
  • Intel® Q470E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500 BMC
Audio
  • ALC 888S HD Audio
Graphics
  • 1 Intel® HD Graphics port(s)
  • 1 ASPEED AST2500 BMC port(s)
Network Controllers
  • Single LAN with Intel® PHY I219LM LAN controller
  • Single LAN with Intel® Ethernet Controller I210-AT
Input / Output
SATA
  • 4 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 3.2 Gen2 port(s) (4 rear type A; 2 via header)
  • 6 USB 2.0 port(s) (6 via header)
Video Output
  • 1 DVI - D port(s), 1 VGA D-Sub Connector port(s), 2 DP++(Dual-Mode DisplayPort) port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 1 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM TPM 2.0 onboard
Expansion Slots
PCIe
  • 1 PCIe 3.0 x4,
  • 1 PCIe 3.0 x16,
  • 1 PCIe 3.0 x4 (in x8 slot)
M.2
  • M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 CNVi/PCIe 3.0 x1
  • Form Factor: 2280/22110, 2230
  • Key: M-Key, E-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.1
  • SMBIOS 3.1
  • PCI FW 3.0
  • UEFI 2.6
  • RTC (Real Time Clock) Wakeup
Management
Software
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • ACPI Power Management, ATX Power connector, +12V DC Power Input
PC Health Monitoring
Voltage
  • VBAT, Memory, CPU, Chassis intrusion header, 5 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
LED
  • UID/Remote UID
  • Power LED
  • BMC/IPMI Heartbeat LED
Temperature
  • Thermal Control for 5 Fan Connectors
FAN
  • 5x 4-pin fan headers (up to 5 fans)
  • Fan speed control
  • Dual Cooling Zone
  • 5 fans with tachometer status monitoring
Other Features
  • UID, RoHS, M.2 NGFF connector, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Resources
Chassis
SC813MFTQC-505CB
(Heatsink1 :SNK-P0049P )
SC510FT-203B
(Heatsink1 :SNK-P0049P )
SC813MFTQC-R407CB
(Heatsink1 :SNK-P0049P )
...
  1. = Optimized SuperServer Chassis
  2. = Optimized Global Chassis
  3. Blue color = Compatible Chassis
  4. = Compatible Global Chassis
Component Options
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
