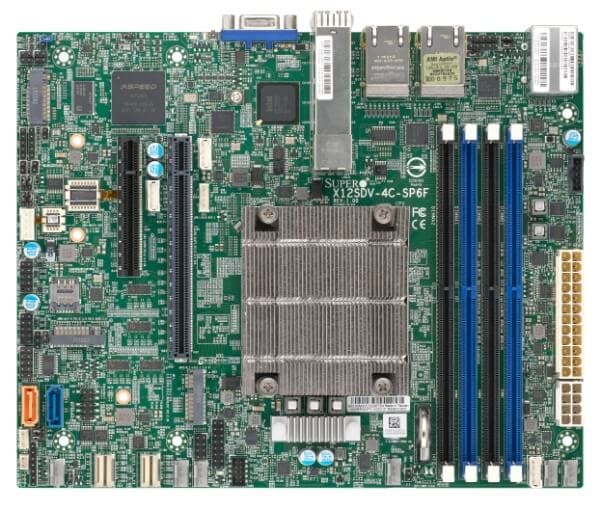

X12SDV-10C-SP6F

X12SDV-10C-SP6F
Embedded
Xeon D SoC
Dual 25GbE LAN
Quad 1GbE LAN
IPMI

Key Features


  1. System on Chip
  2. Intel® Xeon® Processor D-1747NTE, CPU TDP 80W, Intel Quick Assist Technology
  3. Up to 256GB Registered ECC RDIMM, DDR4-2933MHz, in 4 DIMM slots
  4. 1 PCIe 4.0 x16 or 2 PCIe 4.0 x8
  5. 1 M.2 M-Key 2280 (SATA/PCIe 3.0 x4)
    1 M.2 B-Key 2280/3042/3052 (USB/SATA/PCIe 3.0 x2)
    1 M.2 E-Key 2230 (PCIe 3.0 x1)
  6. 2 PCIe 3.0 NVMe x4 SlimSAS Internal Port (4 SATA/PCIe 3.0 x4)
  7. Quad 1G RJ45 with Intel® I350-AM2 and i210-IT
    Dual 25G SFP28 with Intel SoC
  8. SoC controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  9. 12V DC or ATX Power Input
...
...

Optimized Servers


SYS-510D-10C-FN6P SYS-E300-12D-10CN6P
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X12SDV-10C-SP6F
Physical Stats
Form Factor
  • FlexATX
Dimension
  • 9" x 7.25" (22.86cm x 18.42cm)
Processor
CPU
  • Intel® Xeon® Processor D-1747NTE
  • Single Socket FCBGA-2227 supported, CPU TDP supports Up to 80W TDP
Core
  • Up to 10 cores / 15MB Cache
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 256GB ECC RDIMM, DDR4-2933MT/s; Up to 256GB ECC/non-ECC , DDR4-2933MT/s
Memory Type
  • 2933/2666/2400 MT/s ECC/non-ECC DDR4 RDIMM
DIMM Sizes
  • RDIMM: 8GB, 16GB, 32GB, 64GB
  • UDIMM: 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • 8 SATA ports via SlimSAS (or 2 PCIE3.0 x4 for NVMe)
IPMI
  • ASPEED AST2600 BMC
Graphics
  • 1 Aspeed AST2600 BMC port(s)
Network Controllers
  • Dual LAN with 25G SFP28 LAN via SoC
  • Dual LAN with 1GbE with Intel® I210
  • Dual LAN with 1GbE LAN via Intel® i350-AM2
Input / Output
SATA
  • 2 SATA3 (6Gbps) port(s)
LAN
  • 4 RJ45 Gigabit Ethernet LAN ports
  • 2 SFP28 25 Gigabit Ethernet LAN ports
USB
  • 4 USB 2 port(s) (4 via header)
  • 2 USB 3 port(s) (2 rear type A)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 1 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header & Chip both
Expansion Slots
PCIe
  • 2 PCIe 3.0 x4 (or 4x SATA), via SlimSAS,
  • 1 PCIe 4.0 x16 slots or 1 PCIe 4.0 x8 (N/A or 8/8)
M.2
  • M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 USB3.0/SATA3.0/PCIe 3.0 x2; 1 PCIe 3.0 x1
  • Form Factor: 2280, 2280/3042/3052, 2230
  • Key: M-Key, B-Key, E-Key
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.3
  • UEFI 2.7
  • SMBIOS 3.3
  • Plug and Play (PnP)
  • PCI FW 3.0
Management
Software
Power Configurations
  • ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection, Power-on mode for AC power recovery
PC Health Monitoring
Voltage
  • 3.3V standby, +5V standby, +5V, +3.3V, +12V, Memory Voltages, Monitors CPU Core Voltages
LED
  • UID/Remote UID
  • BMC/IPMI Heartbeat LED
  • Overheat/Fan Fail/PWR Fail LED
  • Power Indicator LED
  • LAN temperature
Temperature
  • CPU thermal trip support
  • peripheral temperature
  • System temperature
  • Memory temperature
  • NVMe temperature
  • Platform Environment Control Interface (PECI)/TSI
FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • System level control
  • PWM fan speed control
  • Fan speed control
  • 6 fans with tachometer status monitoring
  • Overheat LED indication
Other Features
  • UID, RoHS, Node Manager Support, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, Intel® QuickAssist Technology
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
