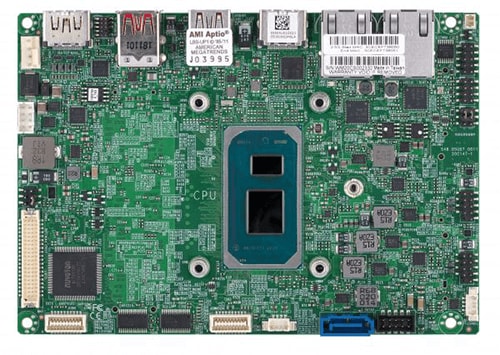

X12STN-H-WOHS

X12STN-H-WOHS
Embedded
vPro AMT
Quad Core
Dual 2.5GbE
M.2-B/E/M Key

Key Features


  1. Intel® 11th Generation Core™ i7-1185GRE Processor
  2. Up to 96 EU with Intel® Iris® Xe graphics capable of 4K60 resolution
  3. High-speed connectivity through dual 2.5GbE, 4 USB3.1 gen2, PCIe 4.0 expansion
  4. 4 display support(HDMI2.0b/1.4b, DP1.4 and 48-bit LVDS)
  5. Rich I/O and expansion: 4 COM, 8 USB, audio with AMP, triple M.2
  6. Accelerated AI inferencing and computer vision in parallel without extra hardware
  7. 100% wide temp grade design and components applied
  8. 12-24V (10% tolerance) wide range power input support
  9. Without heatsink for customers flexible thermal design
  10. Hailo-8™ powerful and efficient Edge AI solution integration ready
...
...
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X12STN-H-WOHS
Physical Stats
Form Factor
  • 3.5" SBC
Dimension
  • 5.7" x 4" (14.6cm x 10.16cm)
Processor
CPU
  • 11th Generation Intel® Core™ i7-1185GRE Processor
  • Single Socket FCBGA-1449 supported, CPU TDP supports Up to 28W TDP
Core
  • Up to 4 cores, 8 threads / 12MB Cache
System Memory
Memory Capacity
  • 2 DIMM slots
  • Up to 64GB Unbuffered non-ECC SODIMM, DDR4-3200MT/s
Memory Type
  • 3200 MT/s non-ECC DDR4 Unbuffered 260pin SODIMM
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • System on Chip
Audio
  • ALC 888S HD Audio
Graphics
  • 1 Intel® Iris® Xe Graphics port(s)
  • Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz), HDMI 2.0b (max. resolution up to 4096x2160@60Hz), HDMI 1.4b (max. resolution up to 4096x2160@30Hz), DP (Alt mode, max. resolution up to 4096x2304@60Hz)
Network Controllers
  • Dual LAN with Intel® Ethernet Controller I225-IT
Input / Output
SATA
  • 1 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 2.5 Gigabit Ethernet LAN port
USB
  • 4 USB 3.2 Gen2 port(s) (3 rear type A; 1 rear type C)
  • 4 USB 2 port(s) (4 via header)
Video Output
  • 2 HDMI port(s), 1 48-bit LVDS port(s), 1 DP (Alt mode) port(s)
Serial Port
  • 4 COM Port(s) (4 header), (2 x RS232, 2 RS232/422/485, RS-485 supports Auto flow control)
TPM
  • 1 TPM Chip
Others
  • 1 HD Audio header Mic-in/Headphone-out (Audio only support at 0~60C)
  • 1 8-bit GPIO header
  • 1 SMBus header
  • 1 System Fan
Expansion Slots
PCIe
  • N/A
M.2
  • Key: B-Key, M-Key, E-Key
  • M.2 2242/3042/2280 B-Key (USB3.0/2.0, SATA Gen3/PCIe Gen3 x1) with nano SIM holder, M.2 2230 E-Key (CNVi/PCIe 3.0 x1/USB2), M.2 2242/2280 M-Key (PCIe 4.0 x4), NVMe support
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.2
  • SMBIOS 3.0 or later
  • UEFI 2.7
  • PCI FW 3.0
  • RTC (Real Time Clock) Wakeup
Management
Software
System Management Software
  • SuperDoctor 5
Power Configurations
  • CPU thermal trip support for processor protection, +12-24V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper, ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • VBAT, System temperature, System level control, Monitors CPU voltages, 3.3V standby, 1.2V (VDIMM), +5V, +3.3V, +12V
LED
  • Standby alert LED
Temperature
  • CPU thermal trip support
Other Features
  • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 8-pin 12-24V DC Power Connector
Operating Environment
Operating Temperature Range
  • -40°C - 85°C (0°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
Resources
Component Options
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Software
BMC Firmware
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List

X12STN-H-WOHS
