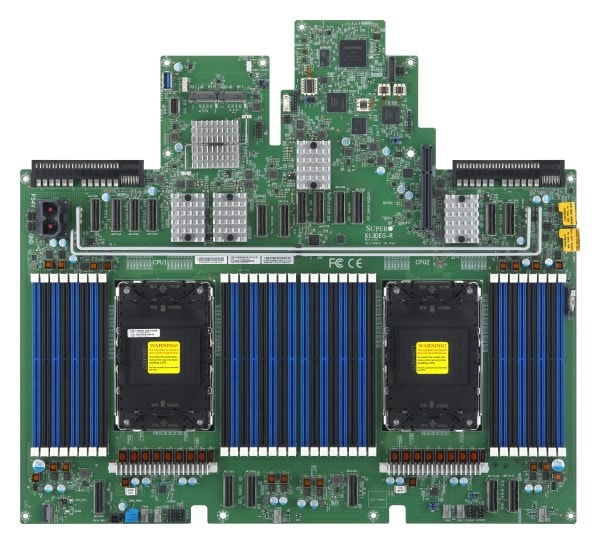

X13DEG-R

X13DEG-R
X13 2U LC Redstone Next

Key Features


  1. 5th/4th Gen Intel® Xeon® Scalable processors and Intel® Xeon® Max series processors, Dual Sockets LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
  2. Intel® C741 Chipset
  3. Up to 8TB 3DS ECC RDIMM, DDR5-5600MT/s in 32 DIMM slots
  4. 18 PCIe 5.0 MCIO x8 (8 for GPU Module; 8 for Riser Card; 2 for NVMe)
  5. Dual LAN with Intel X710 10GbE
  6. 2 PCIe 3.0 x4 Hybrid M.2
  7. 1 VGA via AOM Card
  8. 4 SATA3 port s via SlimSAS-LP x4
  9. 2 USB 3.0 via AOM Card + 1 USB 3.0 onboard
...
...

Optimized Servers


SYS-221GE-TNHT-LCC
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X13DEG-R
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 17.3" x 15.7" (44cm x 39.9cm)
Processor
CPU
Core
  • Up to 64 cores
System Memory
Memory Capacity
  • 32 DIMM slots
  • Up to 8TB 3DS ECC RDIMM, DDR5-5600MT/s
Memory Type
  • 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) or 4400 MT/s (2DPC)
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
  • RDIMM: Up to 256GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C741
SATA
  • Intel® C741 controller for 4 SATA3 ports
IPMI
  • ASPEED AST2600 BMC
Network Controllers
  • AIOM for LAN
Input / Output
USB
  • 1 USB 3.1 Gen1 port(s) (1 Type A)
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 18 PCIe 5.0 x8 PCIe5.0 MCIO connector,
  • 1 PCIe 5.0 x16 AIOM Slot
M.2
  • M.2 Interface: 2 PCIe 3.0 x4
  • Form Factor: 22110, 2280
  • Key: M-Key
System BIOS
BIOS Type
  • AMI 32MB AMI UEFI
BIOS Features
  • ACPI 6.4
  • SMBIOS 2.8/3.5
  • UEFI 2.8A
  • Plug and Play (PnP)
  • PCI FW 3.2
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • PECI
FAN
  • Fan speed control
Other Features
  • UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 60°C (-40°F - 140°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
