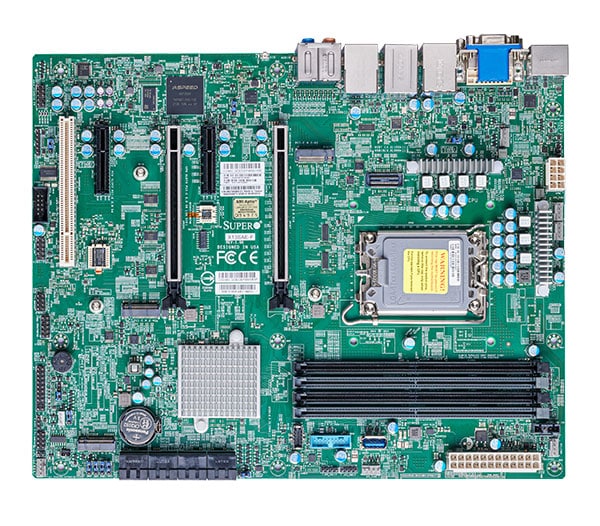

X13SAE-F

X13SAE-F
Workstation

Key Features


  1. 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processors, Single Socket LGA-1700 supported, Up to 150W TDP
  2. Intel® W680
  3. 192GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MT/s, 4 DIMM Slots
  4. 2 PCIe 5.0 x16 slots (16/NA or 8/8), 2 PCIe 3.0 x4 1 5V PCI 32bit
  5. M.2 Interface: 3 PCIe 4.0 x4 (RAID 0, 1, 5) M.2 Form Factor: 2280 M.2 Key: M-Key
  6. Single LAN with Intel® Ethernet I225-LM Single LAN with Intel® PHY I219LM LAN controller for AMT/vPro
  7. 8 SATA3 (6 Gb, RAID 0, 1, 5, 10)
  8. 1 DP 1.4a, 1 HDMI 2.0b, 1 VGA, 1 DVI-D, 1 Dedicated IPMI LAN Port
  9. IPMI Supported
...
...
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X13SAE-F
Physical Stats
Form Factor
  • ATX
Dimension
  • 12" x 9.6" (30.48cm x 24.38cm)
Processor
CPU
  • 14th/13th/12th Gen Intel® Core™ i3/i5/i7/i9 Processors
  • Single Socket Socket V0 (LGA-1700) supported, CPU TDP supports Up to 150W TDP
Core
  • Up to 24 (8+16) cores
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 192GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MT/s
Memory Type
  • 4400/4000/3600 MT/s 192GB
DIMM Sizes
  • 8GB, 16GB, 24GB, 32GB, 48GB
  • UDIMM: 8GB, 16GB, 24GB, 32GB, 48GB
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • Intel® W680
SATA
  • Intel® W680 controller for 8 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
IPMI
  • ASPEED AST2600 BMC
Audio
  • ALC 888S HD Audio
Network Controllers
  • Single LAN with Intel® PHY I219LM LAN controller, for AMT/vPro
  • Single LAN with Intel® Ethernet I225-LM
  • Single LAN with Realtek RTL8211F PHY (Dedicated for IPMI), Dedicated LAN for IPMI
Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 1 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 2.5 Gigabit Ethernet LAN port
USB
  • 3 USB 3.2 Gen1x1 port(s) (1 Vertical Type A; 2 via header)
  • 4 USB 2.0 port(s) (2 via header; 2 rear)
  • 2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header)
  • 3 USB 3.2 Gen2x1 port(s) (3 rear type A)
Video Output
  • 1 VGA port(s), 1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.0b port(s)
Serial Port
  • 1 COM Port(s) (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 2 PCIe 5.0 x16 slots (16/NA or 8/8),
  • 2 PCIe 3.0 x4
M.2
  • M.2 Interface: 3 PCIe 4.0 x4, RAID 0, 1, 5
  • Form Factor: 2280
  • Key: M-Key
Note
  • 1 5V PCI 32bit
System BIOS
BIOS Type
  • 32MB SPI Flash with AMI BIOS
BIOS Features
  • ACPI 6.0
  • Plug and Play (PnP)
  • BIOS rescue hot keys
  • Riser card auto-detection support
  • SMBIOS 3.0 or later
Management
Software
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • VBAT, System temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +1.8V PCH
LED
  • Power LED
  • Catastrophic Error LED
FAN
  • 5x 4-pin fan headers (up to 5 fans)
  • Fan speed control
  • Overheat LED indication
Other Features
  • CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector
Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -20°C - 60°C (-4°F - 140°F)
Resources
Chassis
SC732D4-903B
SC735D4-1K26B
SC735D4-668B
SCGS5A-754K
...
  1. = Optimized SuperServer Chassis
  2. = Optimized Global Chassis
  3. Blue color = Compatible Chassis
  4. = Compatible Global Chassis
Component Options
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Software
BMC Firmware
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
SuperO Booster Utility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List

X13SAE-F

Certain products may not be available in your region
