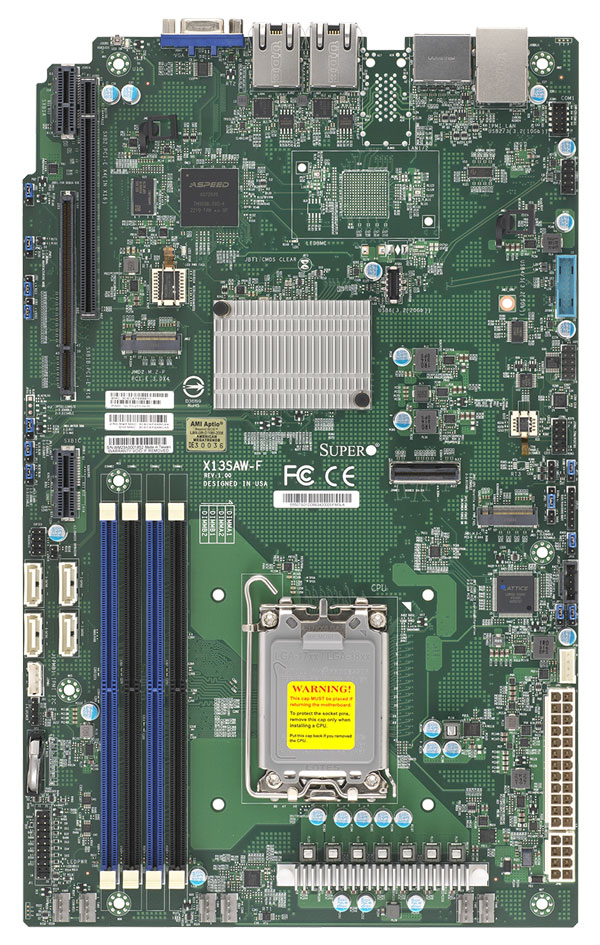

X13SAW-F

X13SAW-F
Embedded
14th/13th/12th Gen CPU, DDR5, PCIe 5.0, Dual 2.5G LAN

Key Features


  1. 14th/13th/12th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processor, Single Socket LGA-1700 supported, CPU TDP supports Up to 125W TDP
  2. Intel® R680E
  3. Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots
  4. 1 PCIe 5.0 x16 slot,
    1 PCIe 4.0 x4 slots,
    2 PCIe 4.0 x4 MCIO
    1 M.2 M-Key 2280 (PCIe 3.0 x4)
    1 M.2 M-Key 2280/22110 (PCIe 4.0 x4)
  5. Dual 2.5 Gigabit LAN with Intel® Ethernet i226 LAN controller
  6. Intel® R680E Controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  7. 2 Independent Display Ports (2 DP1.4)
  8. Supports 12V DC power input
  9. Onboard TPM2.0
...
...

Optimized Servers


SYS-111AD-WRN2
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X13SAW-F
Physical Stats
Form Factor
  • Proprietary Embedded
Dimension
  • 8" x 13" (20.32cm x 33.02cm)
Processor
CPU
  • 14th/13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
Core
  • Up to 24 cores
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MT/s

  • *Supports up to 128GB of DDR5 UDIMM with speeds of up to 4400MT/s with one DIMM, or 4000MT/s with two DIMM single rank, or 3600MT/s with two DIMM dual rank in four memory slots
Memory Type
  • 4400/4000/3600 MT/s
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • Intel R680E
SATA
  • Intel R680E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers
  • Dual LAN with Intel® i226
Input / Output
SATA
  • 4 SATA3 port(s)
USB
  • 2 USB 2.0 port(s) (2 via header)
  • 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear type A)
  • 1 USB 3.2 Gen2 port(s) (1 via header)
Video Output
  • 1 VGA port(s), 2 DP (DisplayPort) port(s)
Serial Port
  • 1 COM Port(s) (1 header)
TPM
  • TPM TPM 2.0 onboard
Expansion Slots
PCIe
  • 1 PCIe 5.0 x16,
  • 1 PCIe 4.0 x4
M.2
  • M.2 Interface: 1 PCIe 4.0 x4; 1 PCIe 3.0 x4
  • Form Factor: 22110, 2280, 2280
  • Key: M-Key, M-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.1
  • SMBIOS 3.0 or later
  • PCI FW 3.0
  • UEFI 2.7
  • RTC (Real Time Clock) Wakeup
Management
Software
System Management Software
  • Wake-on-LAN, Watchdog, KVM with dedicated LAN
Power Configurations
  • ACPI Power Management, ATX Power connector, +12V DC Power Input
PC Health Monitoring
Voltage
  • VBAT, Memory temperature, CPU temperature, Chipset Voltage, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V, BMC/IPMI Heartbeat LED, Dual Cooling Zone, UID, 6 fans with tachometer status monitoring
LED
  • Power LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
Other Features
  • RoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source
FAN
  • 6x 4-pin fan headers (up to 6 fans)
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
