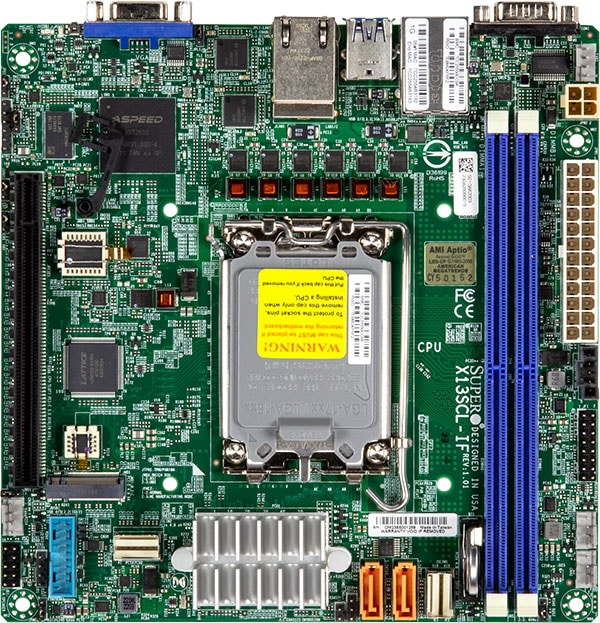

X13SCL-IF

X13SCL-IF

Key Features


  1. Intel® Xeon® E-2400 Series Processor, Pentium®* Processor, Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP
  2. Intel® C262 controller for 6 SATA3 (6 Gbps) ports ; RAID 0,1,5,10
  3. Up to 64GB ECC Unbuffered DIMM, DDR5-4800MHz, in 2 DIMM slots
  4. 1 PCIe 5.0 x16
    2 SlimSAS (2 PCIe 4.0x4 or 1 PCIe 4.0x4 & 4 SATA)
  5. Dual LAN with Intel® i210 Gigabit Ethernet Controller
  6. M.2 Interface: 1 PCIe 4.0 x4
    M.2 Form Factor: 2280
    M.2 Key: M-Key
  7. 4 USB 3.2 Gen1 ports (2 rear + 2 via header)
    2 USB 2.0 ports (2 rear)
...
...

Optimized Servers


SYS-521R-T
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X13SCL-IF
Physical Stats
Form Factor
  • Mini-ITX
Dimension
  • 6.7" x 6.7" (17.02cm x 17.02cm)
Processor
CPU
  • Intel® Xeon® E-2400/Pentium®* Processor
  • Single Socket Socket V0 (LGA-1700) supported, CPU TDP supports Up to 95W TDP
  • *Pentium® G7400 and G7400T
Core
  • Up to 8 cores
System Memory
Memory Capacity
  • 2 DIMM slots
  • Up to 64GB Unbuffered ECC UDIMM, DDR5-4800MT/s
Memory Type
  • 4800/4400/4000 MT/s Up to 64GB of memory with speeds of up to 4800MT/s (1DPC)
DIMM Sizes
  • 8GB, 16GB, 32GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C262
SATA
  • Intel® C262 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Graphics
  • 1 Aspeed AST2600 BMC port(s)
Network Controllers
  • Dual LAN with 1GbE with Intel® I210
Input / Output
SATA
  • 2 SATA3 (6Gbps) port(s)
  • 4 SATA3 (6Gbps) port(s) via Slimline SAS x4 connector
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 port(s) (2 rear)
  • 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 5.0 x16,
  • 1 PCIe 4.0 x4 SlimSAS, 2 PCIe 4.0x4 or 1 PCIe 4.0x4 & 4 SATA
M.2
  • M.2 Interface: 1 PCIe 4.0 x4
  • Form Factor: 2280
  • Key: M-Key
System BIOS
BIOS Type
  • AMI 32MB AMI UEFI
BIOS Features
  • ACPI 6.4
  • SMBIOS 3.5
  • UEFI 2.8
  • Plug and Play (PnP)
  • PCI FW 3.3
Management
Software
Power Configurations
  • ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 4 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages, +3.3V standby
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • PECI
FAN
  • 4x 4-pin fan headers (up to 4 fans)
  • Fan speed control
  • 4 fans with tachometer monitoring
  • Overheat LED indication
Other Features
  • WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion header, ACPI power management
Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Resources
Servers (Optimized for X13SCL-IF)
SYS-521R-T
...
Component Options
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Software
BMC Firmware
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List

X13SCL-IF
