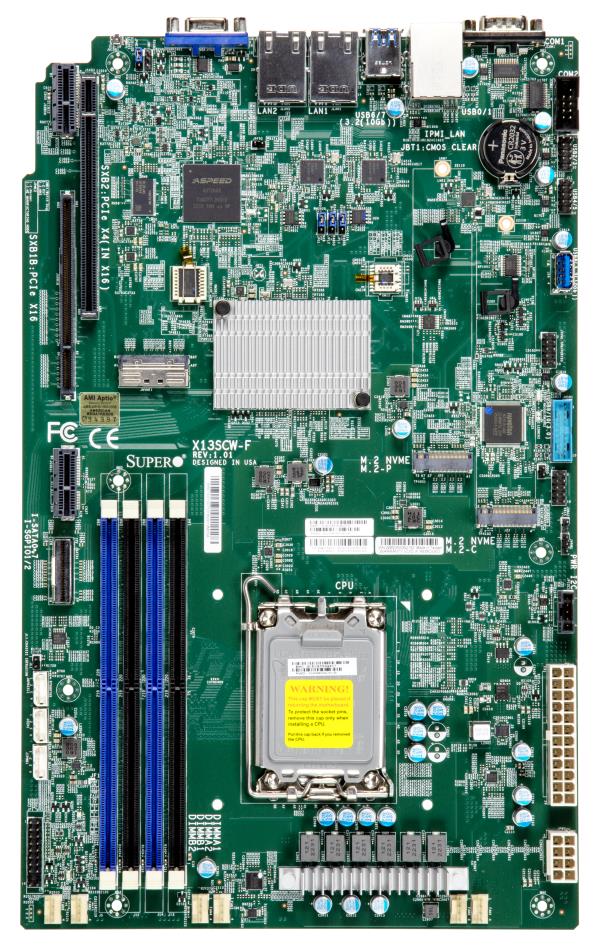

X13SCW-F

X13SCW-F

Key Features


  1. Intel® Xeon® E-2400 Series Processor, Pentium®* Processor, Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP
  2. Intel® C266 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  3. Up to 128GB ECC Unbuffered DIMM, DDR5-4400MHz, in 4 DIMM slots
  4. 1 PCIe 5.0 x16 (Left Riser Slot)
    1 PCIe 4.0 x4 ( in x16, Right Riser slot)
  5. M.2 Interface: 2 PCIe 4.0 x4
    M.2 Form Factor: 2280, 22110
    M.2 Key: M-Key
  6. Dual LAN with Intel® i210 Gigabit Ethernet Controller
  7. 3 USB 3.2 Gen2 ports (2 rear + 1 Type A)
    2 USB 3.2 Gen1 ports (via heaader)
    4 USB 2.0 ports (2 rear + 2 via header)
...
...

Optimized Servers


SYS-511R-W
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X13SCW-F
Physical Stats
Form Factor
  • Proprietary WIO
Dimension
  • 8" x 13" (20.32cm x 33.02cm)
Processor
CPU
  • Intel® Xeon® E-2400/Pentium®* Processor
  • Single Socket Socket V0 (LGA-1700) supported, CPU TDP supports Up to 95W TDP
  • *Pentium® G7400 and G7400T
Core
  • Up to 8 cores
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered ECC UDIMM, DDR5-4400MT/s
Memory Type
  • 4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (1DPC)
DIMM Sizes
  • 8GB, 16GB, 32GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C266
SATA
  • Intel® C266 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Graphics
  • 1 Aspeed AST2600 BMC port(s)
Network Controllers
  • Dual LAN with 1GbE with Intel® I210
Input / Output
SATA
  • 8 SATA3 (6Gbps) port(s) via Slimline SAS x8 connector
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 2.0 port(s) (2 via header; 2 rear)
  • 2 USB 3.2 Gen1 port(s) (2 via header)
  • 3 USB 3.2 Gen2 port(s) (2 rear; 1 type A)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 5.0 x16 Left Riser Slot,
  • 1 PCIe 4.0 x4 Right Riser (in x16) slot
M.2
  • M.2 Interface: 2 PCIe 4.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI 32MB AMI UEFI
BIOS Features
  • ACPI 6.4
  • SMBIOS 3.5
  • UEFI 2.8
  • Plug and Play (PnP)
  • PCI FW 3.3
Management
Software
Power Configurations
  • ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages, +3.3V standby
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • PECI
FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • Fan speed control
  • 6 fans with tachometer status monitoring
  • Overheat LED indication
Other Features
  • WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Resources
Servers (Optimized for X13SCW-F)
SYS-511R-W
...
Component Options
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Software
BMC Firmware
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List

X13SCW-F
