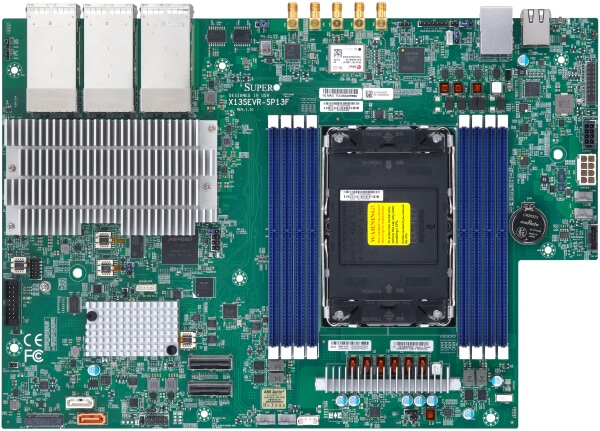

X13SEVR-SP13F

12x 25GbE
IEEE1588 v2 & SyncE support
Short Depth

Key Features


  1. 5th/4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 225W TDP
  2. Intel C741® Chipset
  3. Up to 2TB ECC RDIMM/RDIMM 3DS, DDR5-5600MT/s in 8 DIMM slots
  4. 2 PCIe 5.0 x8 MCIO connector, support riser card: RSC-S-68G5 for FHHL PCIe card
  5. IEEE1588 v2 & Synchronous Ethernet support
    DPLL/OCXO design
    Up to 8 hours hold-over
  6. 12 SFP28 for 25GbE Ethernet and 1 IPMI shared LAN with Intel® Ethernet Controller E810-CAM1
    1 RJ45 for Gigabit Ethernet and IPMI shared LAN with Intel® Ethernet Controller I210-AT
    Note that only port10 support E810 NC-SI function
  7. M.2 Interface: 1 PCIe 4.0 x4, M.2 Form Factor: 2280
  8. 1 COM header;1 VGA header; 2 USB 3.2 Gen1 Ports
  9. 4 SMA for 1PPS & 10MHz (two Input two Output)
    1x SMA for GNSS input with onboard GNSS module
...
...

Optimized Servers


Specifications Resources Parts List
Specifications
Product SKUs
MBD-X13SEVR-SP13F
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 13.94" x 9.6" (35.41cm x 24.38cm)
Processor
CPU
Core
  • Up to 32 cores
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s
Memory Type
  • 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
DIMM Sizes
  • 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel® C741
SATA
  • Intel® C741 controller for 2 SATA3 ports; RAID 0,1
IPMI
  • ASPEED AST2600 BMC
Network Controllers
  • Single LAN with Intel® i210 Gigabit Ethernet Controller
  • 12 LAN with Intel® Ethernet Controller E810-CAM1
Input / Output
SATA
  • 2 SATA3 port(s)
USB
  • 2 USB 3.2 Gen1 port(s) (2 type A)
Video Output
  • 1 Header port(s)
Serial Port
  • 1 COM Port(s) (1 header)
TPM
  • 1 TPM Header & Chip both
Others
  • 1 Dry contact
  • 5 SMA 1PPS & GNSS with 1 for GNSS input
Expansion Slots
PCIe
  • 2 PCIe 5.0 x8 MCIO connector, For RSC-S-68G5 to support FHHL PCIe Card
M.2
  • M.2 Interface: 1 PCIe 4.0 x4
  • Form Factor: 2280
  • Key: M-Key
System BIOS
BIOS Type
  • 32MB AMI UEFI
BIOS Features
  • ACPI 6.5
  • SMBIOS 3.6
  • UEFI 2.9
  • Plug and Play (PnP)
  • PCI FW 3.3
Management
Software
System Management Software
  • IPMI 2.0
Power Configurations
  • ACPI Power Management, Power-on mode control for AC power loss recovery
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 4 -fan status, +5V standby, +5V, +3.3V, +12V, +3.3V standby
LED
  • UID/Remote UID
  • Power LED
  • BMC/IPMI Heartbeat LED
  • Power fail / Fan fail / Overheat LED Indication
Temperature
  • CPU thermal trip support
  • PECI
FAN
  • 4x 4-pin fan headers (up to 4 fans)
  • Fan speed control
  • 4 fans with tachometer monitoring
Other Features
  • WOL, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
Operating Environment
Operating Temperature Range
  • 0°C - 55°C (32°F - 131°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Resources
Parts List

X13SEVR-SP13F

  1. Products
  2. Motherboards
  3. X13SEVR-SP13F
