SuperServer ARS-211ME-FNR (Complete System Only)

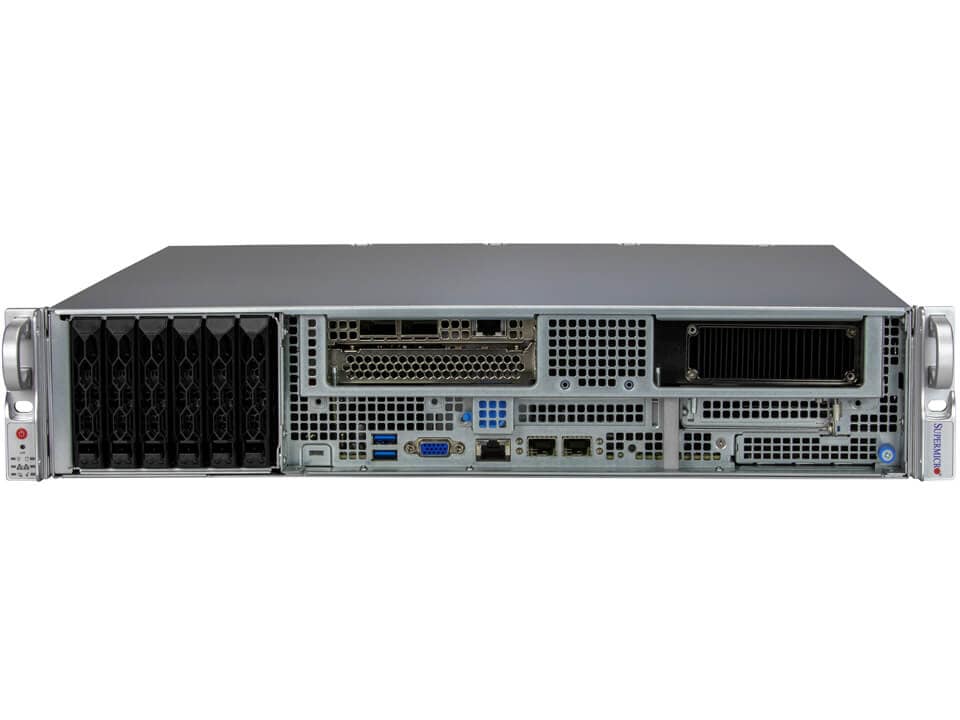

ARS-211ME-FNR Main ARS-211ME-FNR Front ARS-211ME-FNR Front1
Integrated Board: R13SPD
Learn more

Key Applications

  • Telco Edge
  • Cloud Service Providers
  • Open-RAN
  • Artificial Intelligence (AI) on Edge

Key Features

  1. Single Socket Ampere® AmpereOne® Processor (Up to 192 Cores; Up to 3.2Ghz) ; Up to 400W TDP
  2. 16 DIMMs; Up to 4TB ECC Registered DDR5-5600/ 4800MHz RDIMM/LRDIMM
  3. Supports 1 PCIe 5.0 x16 Double Wide FPFL GPU Card (or 1 PCIe 5.0 x16 FPFL Single Slot and 1 PCIe 5.0 x8 FPFL Single Slot), 1 PCIe 5.0 x16 FPHL Slot, 1 PCIe 5.0 x8 FPHL Slot, 1 PCIe 5.0 x16 LP Slot, 1 AIOM Slot (OCP3.0 Mezzanine Compatible)
  4. 2x 25Gb LAN SFP28 Ports via BCM57414 Controller w/NC-SI
  5. 6x 2.5" U.2 NVMe Hot-Swap Drive Bays
  6. 1600W Redundant Titanium Level High-efficiency Power Supplies
  7. 1 VGA, 1 (Serial) Micro USB Port, 2 USB3.0 (2 Rear)
...
...
ARS-211ME-FNR
Specifications Resources & Downloads
Specifications
Product SKUs
ARS-211ME-FNR
Motherboard
Super R13SPD
Processor
CPU
  • Single processor(s)
  • Ampere® AmpereOne® processor
Note
  • Supports 200W - 400W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width GPU
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM/LRDIMM
  • Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
Input / Output
LAN
  • 2 SFP28 25 GbE LAN ports
  • 1 RJ45 1 GBASE-T Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(front)
Video
  • 1 VGA port
Serial
  • 1 port
Management
Power configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-LB23MTS-R000NDP
Dimensions and Weight
Height
  • 3.5" (88.9 mm)
Width
  • 17.2" (436.88 mm)
Depth
  • 17" (431.8 mm)
Package
  • 11" (H) x 26.5" (W) x 34" (D)
Weight
  • Gross Weight: 59 lbs (26.76 kg)
  • Net Weight: 35.3 lbs (16 kg)
Available Color
  • Black

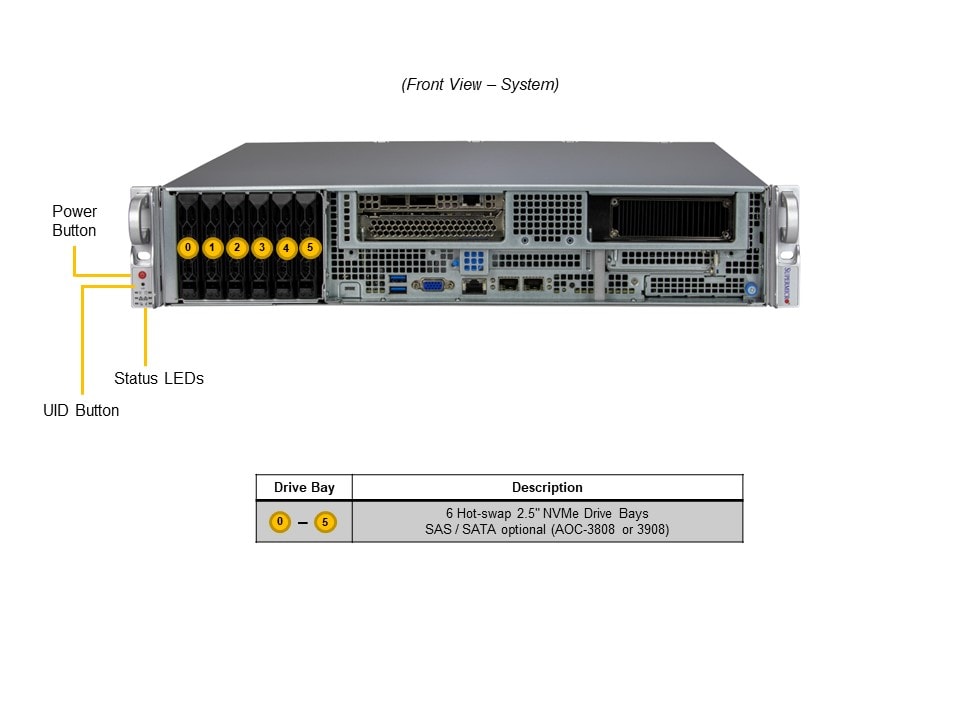

Front Panel
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
  • UID button
Expansion Slots

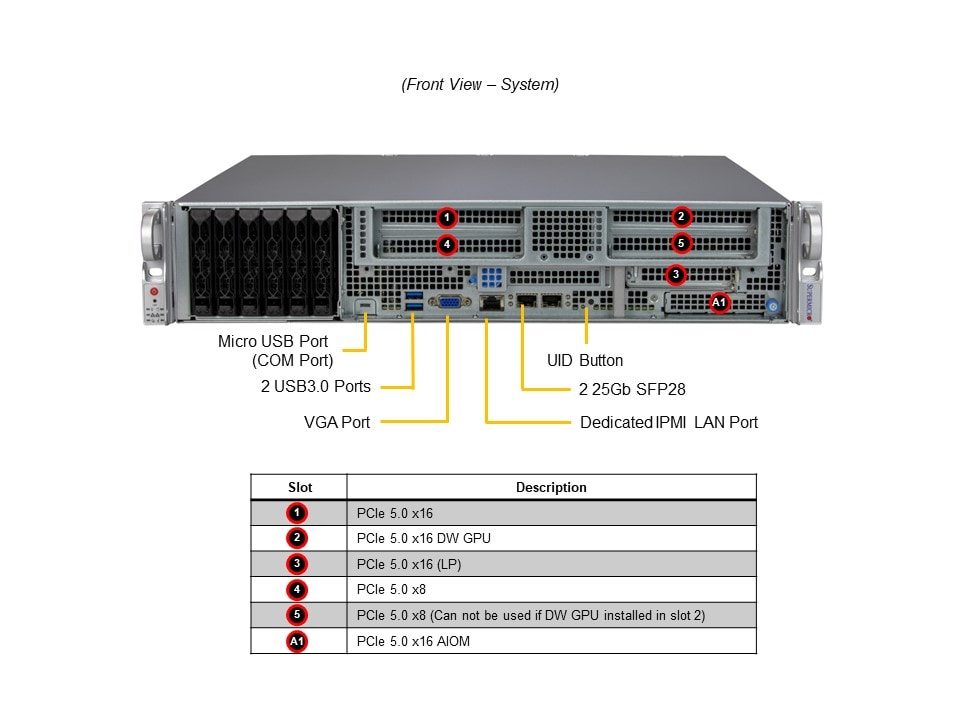

PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 5.0 x8 FHFL slots
    • 2 PCIe 5.0 x16 FHFL slots
    • 1 PCIe 5.0 x16 LP slot
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 6 bays
    • 6 front hot-swap 2.5" NVMe drive bays
M.2
  • 1 M.2 NVMe slot (M-key 22110)
System Cooling
Fans
  • 4 Heavy Duty 8cm Fan(s)
Power Supply
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
