SuperServer AS -3015MR-H10TNR

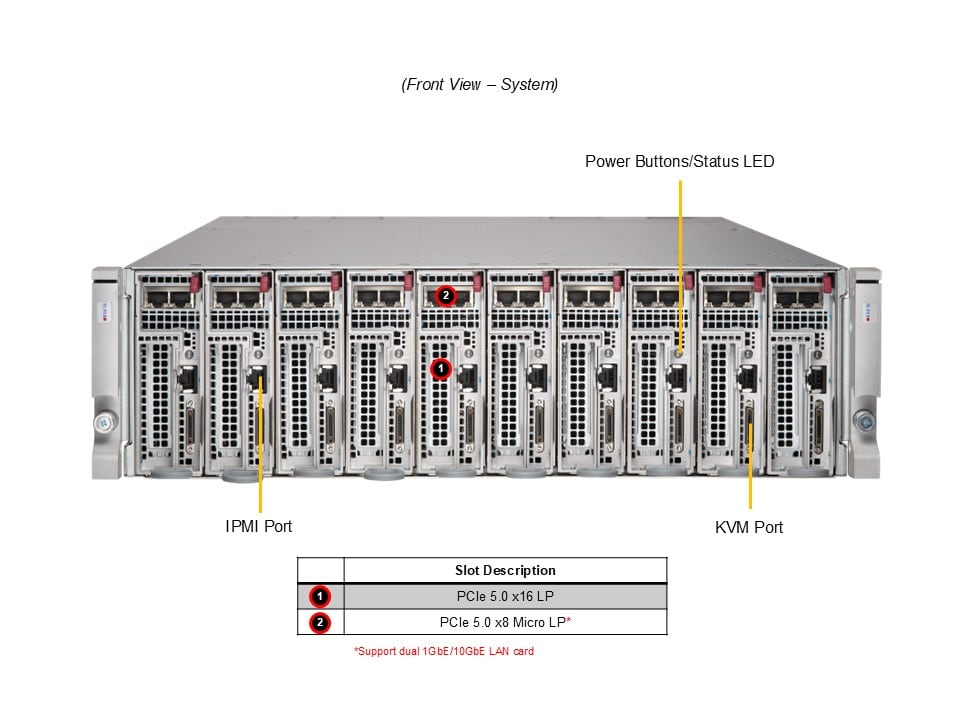

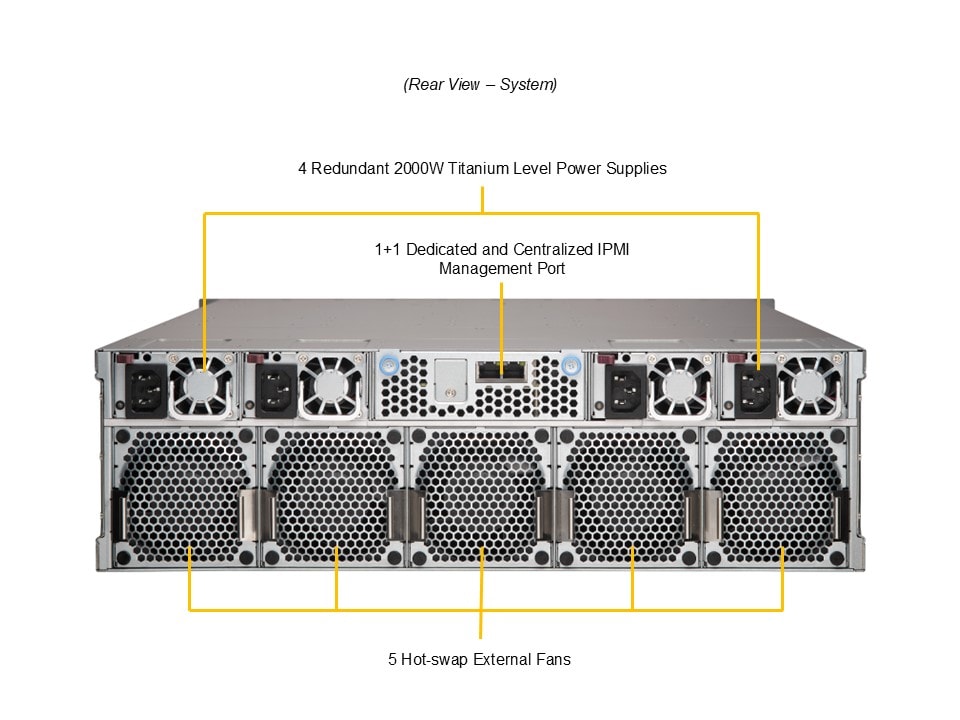

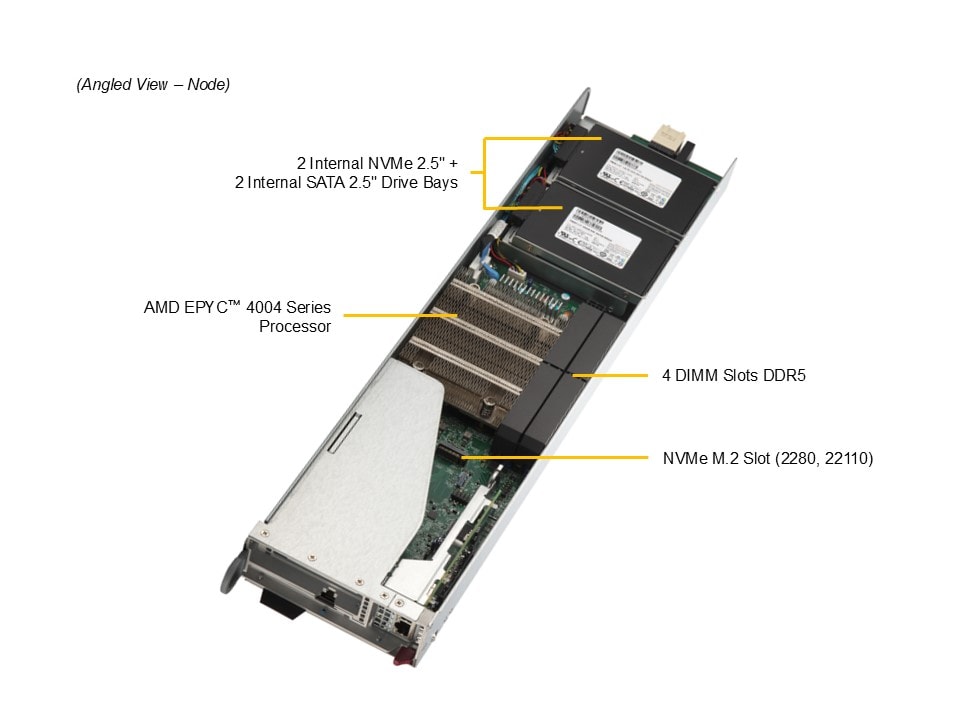

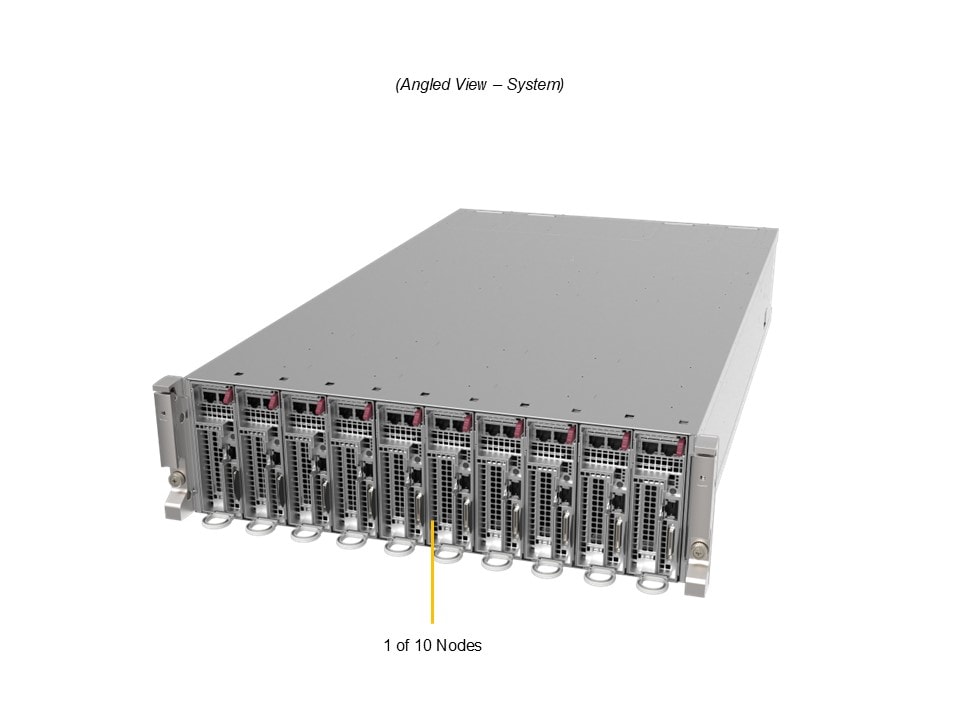

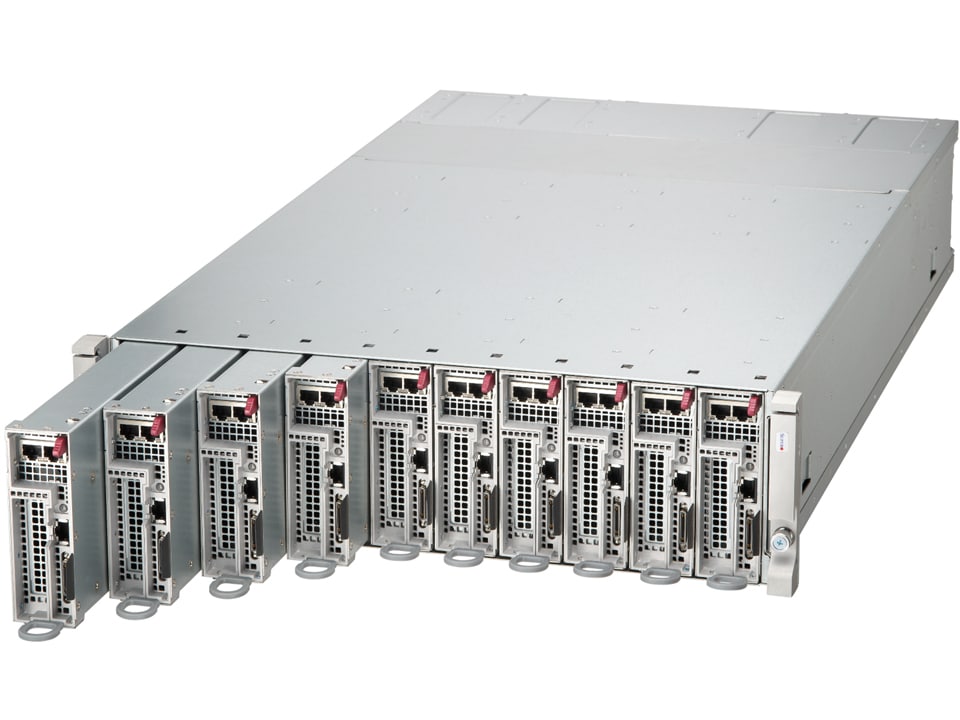

AS -3015MR-H10TNR Main AS -3015MR-H10TNR Angle AS -3015MR-H10TNR Node AS -3015MR-H10TNR Front AS -3015MR-H10TNR Rear
Integrated Board: H13SRE-F

Key Applications

  • Cloud Computing
  • Web/Collocation Services
  • Web Cache, CDN, Video Streaming
  • Social Networking, Downloads
  • Corporate - WINS, DNS, Print, Login

Key Features

  1. Single Socket AM5 (LGA-1718) AMD EPYC™ 4004 Series Processor up to 170W with air cooling
  2. Support for up to 1 single-width PCIe GPU accelerator cards
  3. Up to 4 DIMMs supporting up to 192GB DDR5-5200 in 2DPC
  4. Up to 1 PCIe 5.0 x16 LP + 1 PCIe 5.0 x4 MicroLP slots
  5. Up to 4 internal 2.5" (2 NVMe and 2 SATA) drive bays
  6. 2000W Redundant (2+2 or 3+1) 80+ Titanium Level high-efficiency power supplies
...
...
AS-3015MR-H10TNR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
A+ Server AS -3015MR-H10TNR
Motherboard
Super H13SRE-F
Processor (per Node)
CPU
  • Single Socket AM5 (LGA-1718)
  • AMD EPYC™ 4004 Series Processor
Core Count
  • Up to 16C/32T; Up to 32MB Cache
Note
  • Supports 65W - 170W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 120W only supported under specific conditions. Contact a Supermicro representative for details.
GPU (per Node)
Max GPU Count
  • Up to 1 single-width GPU
Supported GPU
System Memory (per Node)
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM
On-Board Devices (per Node)
NVMe
  • NVMe; (Native)
Chipset
  • System on Chip
Network Connectivity
Input / Output (per Node)
USB
  • 2 USB 2.0 ports
Video
  • 1 port
TPM
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI 6.0 Power Management
PC Health Monitoring
Temperature
  • Monitoring for CPU and chassis environment
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN
  • Fan speed control, Dual Cooling Zone
Chassis
Form Factor
  • 3U Rackmount
Model
  • CSE-MC301-000NDFP
Dimensions and Weight
Height
  • 5.16" (131 mm)
Width
  • 17.68" (449 mm)
Depth
  • 30.51" (775 mm)
Package
  • 12.6" (H) x 24.92" (W) x 44.29" (D)
Weight
  • N/A
Available Color
  • No Paint
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 4 bays
    • 2 internal fixed 2.5" PCIe 5.0 NVMe drive bays
    • 2 internal fixed 2.5" SATA drive bays
  • View Drive Options
M.2
  • 1 M.2 NVMe slot (M-key 2280/22110)
System Cooling
Fans
  • 5 Heavy Duty 8cm Fan(s)
Power Supply
4x 2000W
4x 2000W Redundant (3 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
AC Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc
2000W: 230-240Vac
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for China only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
12V SBMax: 3.5A / Min: 0A
Max: 3.5A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-H13SRE-F

CSE-MC301-000NDFP 		10

1 		Super H13SRE-F Motherboard

3U Chassis
Cable CBL-0218L 1 11.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB
Riser Card RSC-S-6G5 10 1U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H
Software SFT-OOB-LIC 10 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0076V 10 1U Proprietary CPU Heat Sink for AS -531MR-H8TNR MicroCloud Server
Optional Parts List
Part Number Qty Description
Cable CBL-SAST-1230T4S1-100 - For AOC-S3908L-H8iR-16DD
CBL-SAST-0616 • - For AOC-S3008L-L8i
Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
GPU GPU-NVL4 - NVIDIA Ada L4 24GB GDDR6 PCIe Gen 4th-- 70w
GPU-NVA2-NC - NVIDIA Ampere A2 16GB GDDR6 PCIe 4.0 x8 -- w/o CEC 40~60W Configurable
GPU-NFR-NVTT4 - NVIDIA TeslaT4 16GB GDDR6 PCIe3.0x16--PassiveCooling 70w
GPU Air Shroud MCP-310-93807-0B - Mylar air shroud for GPU on MicroCloud 938NH,RoHS
Network Card(s) AOC-CGP-i2 - Intel i350 2-port RJ45 1Gb Gen2 x4 Micro-LP
AOC-CTGS-i2T-O - MicroLP Dual-port 10GbE RJ45, Intel X550 (Retail Pack)
AOC-CTG-i2S - Intel 82599ES 2-port SFP+ 10Gb 2-port USB Gen2 x8 Micro-LP
Software SFT-DCMS-Single - DataCenter Management Package (per node license)
Storage Controller Card(s) AOC-S3008L-L8i - Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/10
AOC-S3908L-H8IR-16DD - 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS

MicroCloud A+ Server AS -3015MR-H10TNR Coming Soon
