SuperServer AS -3015MR-H8TNR

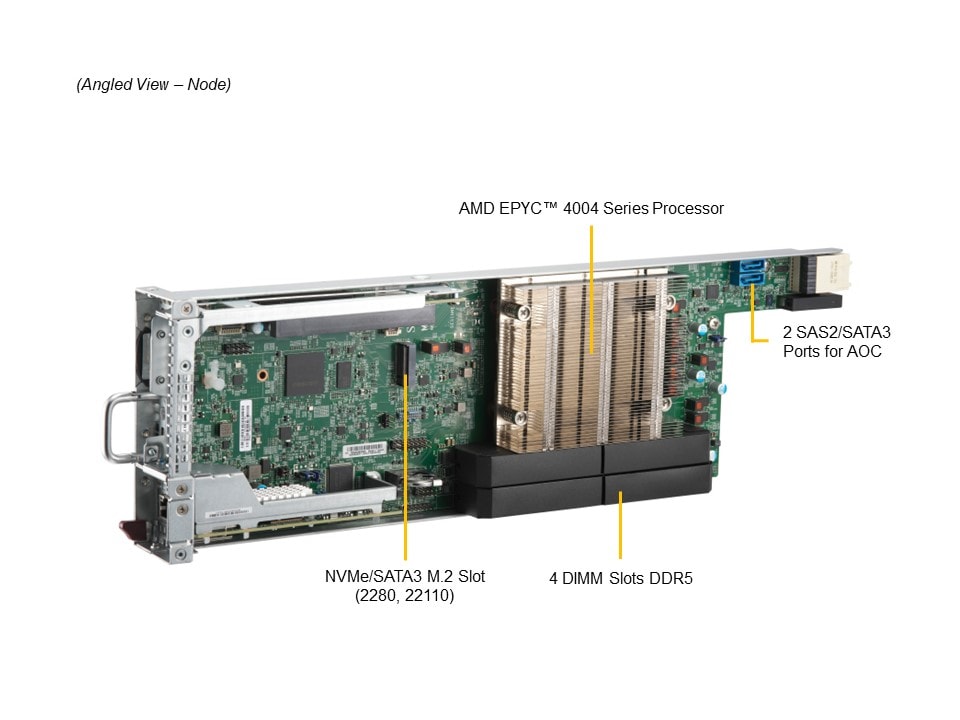

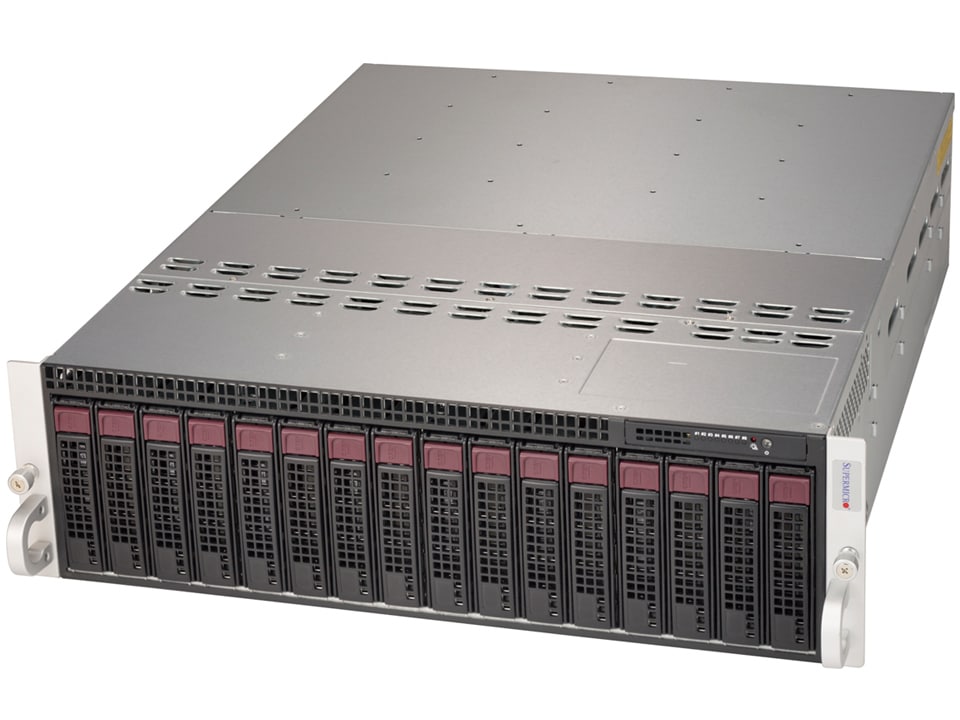

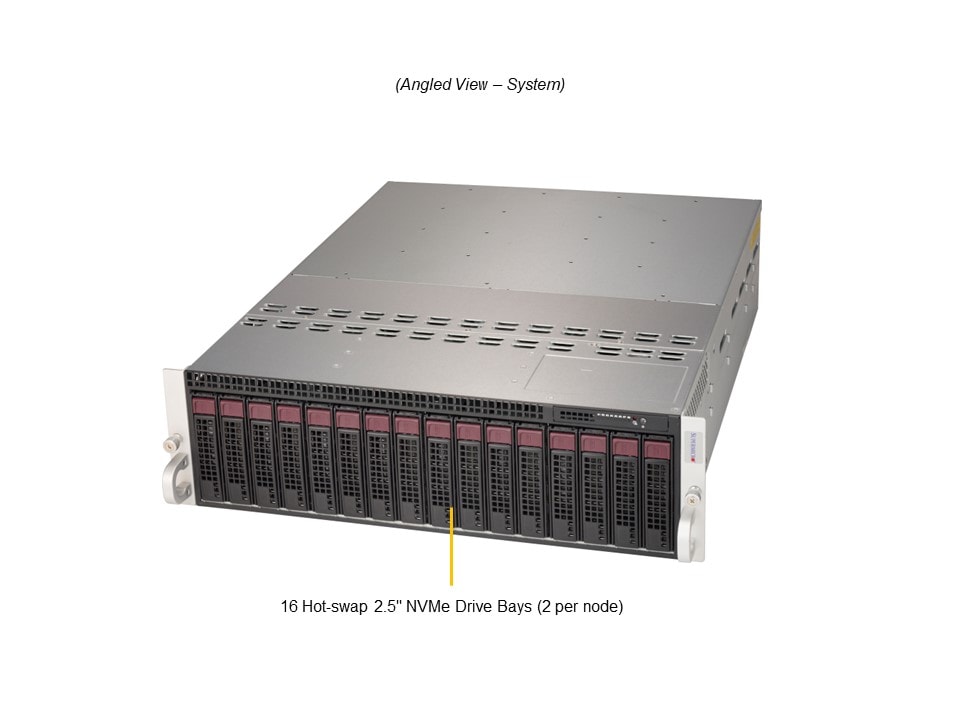

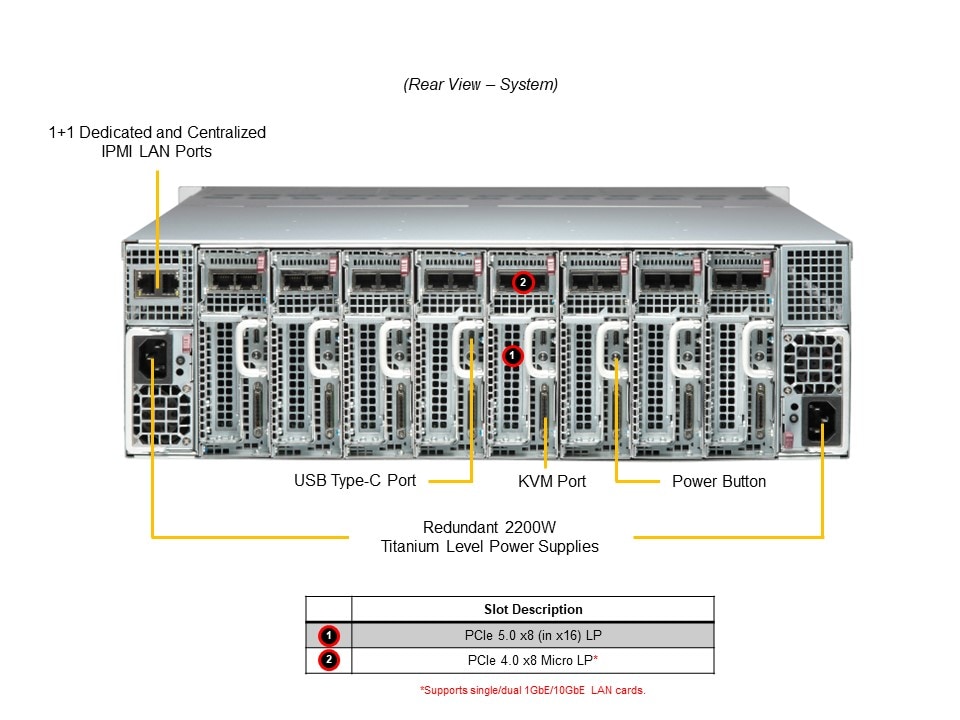

AS -3015MR-H8TNR Main AS -3015MR-H8TNR Angle AS -3015MR-H8TNR Node AS -3015MR-H8TNR Front AS -3015MR-H8TNR Rear
Integrated Board: H13SRD-F
Learn more

Key Applications

  • Cloud Computing
  • Web/Collocation Services
  • Web Cache, CDN, Video Streaming
  • Social Networking, Downloads
  • Corporate - WINS, DNS, Print, Login

Key Features

  1. 8 sets of AMD EPYC™ 4004 Series Processor
  2. AMD Knoll - Integrated I/O Controller Hub
  3. 8 sets of up to 192GB ECC/non ECC UDIMM; DDR5 5200MHz, in 4 DIMM sockets
  4. 8 sets of 1 PCIe 5.0 x8 (in x16) LP slots + 1 Micro-LP slot (MicroLP upgradeable)
  5. 8 sets of 2 front NVMe U.2/ SAS/ SATA3 drive bays with optional kits
  6. 2200W Redundant 80+ Titanium Level high-efficiency power supplies
...
...
AS-3015MR-H8TNR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
A+ Server AS -3015MR-H8TNR
Motherboard
Super H13SRD-F
Processor (per Node)
CPU
  • Single Socket AM5 (LGA-1718)
  • AMD EPYC™ 4004 Series Processor
Core Count
  • Up to 16C/32T; Up to 16MB Cache
Note
  • Supports 65W - 170W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 120W only supported under specific conditions. Contact a Supermicro representative for details.
GPU (per Node)
Max GPU Count
  • Up to 1 single-width GPU
Supported GPU
System Memory (per Node)
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 192GB 5200MT/s non-ECC DDR5 UDIMM
  • View Memory Options
On-Board Devices (per Node)
NVMe
Chipset
  • AMD Knoll - Integrated I/O Controller Hub
Network Connectivity
Input / Output (per Node)
USB
  • 2 USB 2.0 ports
  • 1 Type-C port(front)
Video
  • 1 port
TPM
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI 6.0 Power Management
PC Health Monitoring
Temperature
  • Monitoring for CPU and chassis environment
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN
  • Fan speed control, Dual Cooling Zone
Chassis
Form Factor
  • 3U Rackmount
Model
  • CSE-938NH-R2K20BP2
Dimensions and Weight
Height
  • 5.21" (132 mm)
Width
  • 17.26" (438 mm)
Depth
  • 23.2" (589 mm)
Package
  • 11.65" (H) x 26.26" (W) x 34" (D)
Weight
  • Gross Weight: 88 lbs (39.92 kg)
  • Net Weight: 62.2 lbs (28.21 kg)
Available Color
  • N/A

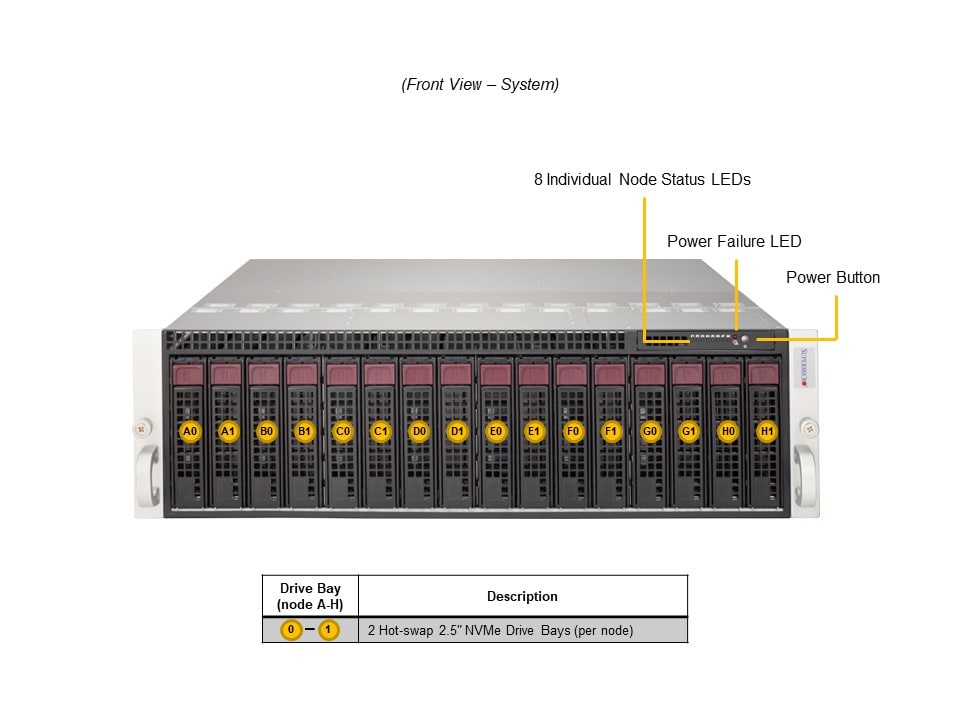

Front Panel
LED
  • 8 Individual Node Status Indicators
  • Power Failure
Buttons
  • Power On/Off
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 5.0 x8 (in x16) LP slot
    • 1 PCIe 5.0 x8 MicroLP slot
  • View AOC Options
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 2 bays
    • 2 front fixed 3.5"/2.5" NVMe/SAS*/SATA* drive bays
  • (*SAS/SATA support may require additional storage controller and/or cables)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 4 Heavy Duty 8cm Fan(s)
Power Supply
2x 2200W
2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)76 x 40 x 336 mm
Total Output Power(for CCC only)
(for UL/cUL use only)
AC Input1200W: 100-127Vac
1200W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
1980W: 220-230Vac / 50-60Hz
2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
2200W: 230-240Vac
2090W: 230-240Vac / 50-60Hz
2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12VMax: 100A / Min: 0A (100Vdc-127Vdc)
Max: 100A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
Max: 183.3A / Min: 0A (220Vac-240Vac)
Max: 174.17A / Min: 0A (230Vac-240Vac)
Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
Max: 183.33A / Min: 0A (230Vdc-240Vdc)
5V SBMax: 1A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-H13SRD-F

CSE-938NH-R2K20BP2 		8

1 		Super H13SRD-F Motherboard

3U Chassis
Add-on Card / Module AOM-BPN-938NH-P 1 AOM-BPN-938NH, Backplane module for 8-node Microcloud system
AOM-LAN-MC8-P 1 AOM-LAN-MC8, LAN front panel module for 8-node Microcloud sy
AOM-PDB-PT938-LSG-P 1 AOM-PDB-PT938-LSG, PDB module for 8-node Microcloud system,H
AOM-PDB-PT938-RSG-P 1 AOM-PDB-PT938-RSG, PDB module for 8-node Microcloud system,H
Cable CBL-0218L 1 11.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB
CBL-PWCD-0578-1 OR 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
CBL-PWCD-0578-IS PWCD,US,IEC60320 C14 TO C13,910mm,14AWG,15A,250V,Black, RoHS
CBL-0355L 2 RJ45 C5E 2ft Green With Cover
CBL-0458L 1 20 cm 30 pin to 30 pin Front control cable with tube. 28AWG
CBL-CDAT-0662 1 8 Pin to 8 Pin Round SGPIO Cable, 61.5cm, 28AWG, Pinout 1-1
Riser Card RSC-S-6G5 8 1U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H
Software SFT-OOB-LIC 8 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0076V 8 1U Proprietary CPU Heat Sink for AS -531MR-H8TNR MicroCloud Server
Fan FAN-0213L4 OR 4 80x80x38 mm, 14.4K RPM Cooling Fan for 3U8N Microcloud Serie
FAN-0194L4 80x80x38 mm, 13.5K RPM Cooling Fan for 3U8N Microcloud Serie
Drive Tray(s) MCP-220-93801-0B OR 16 Black Hotswap Gen 6 3.5 to 2.5 HDD Tray (SC747, 936, 938 and Blade)
MCP-220-00158-0B Black gen 6.5 hot-swap 3.5-to-2.5 Tool-less drive tray,RoHS
MCP-220-00094-0B 16 Black gen 6.5 hot-swap 3.5 inch HDD Tray
*Power Supply PWS-2K20A-1R 2 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
*Control Board MCP-280-93801-0B 1 Control panel module
*Rail Set MCP-290-00057-0N 1 Rail set, quick/quick, default for 4U 17.2" W
*Air Shroud MCP-310-93805-0B 16 Mylar air shroud for 2-DIMMs (quick install on DIMM latch)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Cable CBL-SAST-1230T4S1-100 - For AOC-S3908L-H8iR-16DD
CBL-SAST-0616 • - For AOC-S3008L-L8i
Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
GPU GPU-NVL4 - NVIDIA Ada L4 24GB GDDR6 PCIe Gen 4th-- 70w
GPU-NVA2-NC - NVIDIA Ampere A2 16GB GDDR6 PCIe 4.0 x8 -- w/o CEC 40~60W Configurable
GPU-NFR-NVTT4 - NVIDIA TeslaT4 16GB GDDR6 PCIe3.0x16--PassiveCooling 70w
GPU Air Shroud MCP-310-93807-0B - Mylar air shroud for GPU on MicroCloud 938NH,RoHS
Network Card(s) AOC-CGP-i2 - Intel i350 2-port RJ45 1Gb Gen2 x4 Micro-LP
AOC-CTGS-i2T-O - MicroLP Dual-port 10GbE RJ45, Intel X550 (Retail Pack)
AOC-CTG-i2S - Intel 82599ES 2-port SFP+ 10Gb 2-port USB Gen2 x8 Micro-LP
Software SFT-DCMS-Single - DataCenter Management Package (per node license)
Storage Controller Card(s) AOC-S3008L-L8i - Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/10
AOC-S3908L-H8IR-16DD - 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
