SuperServer AS -2024US-TRT (Complete System Only)

2U Ultra with 12 SATA bays and 4 PCIe 3.0 x16 slots

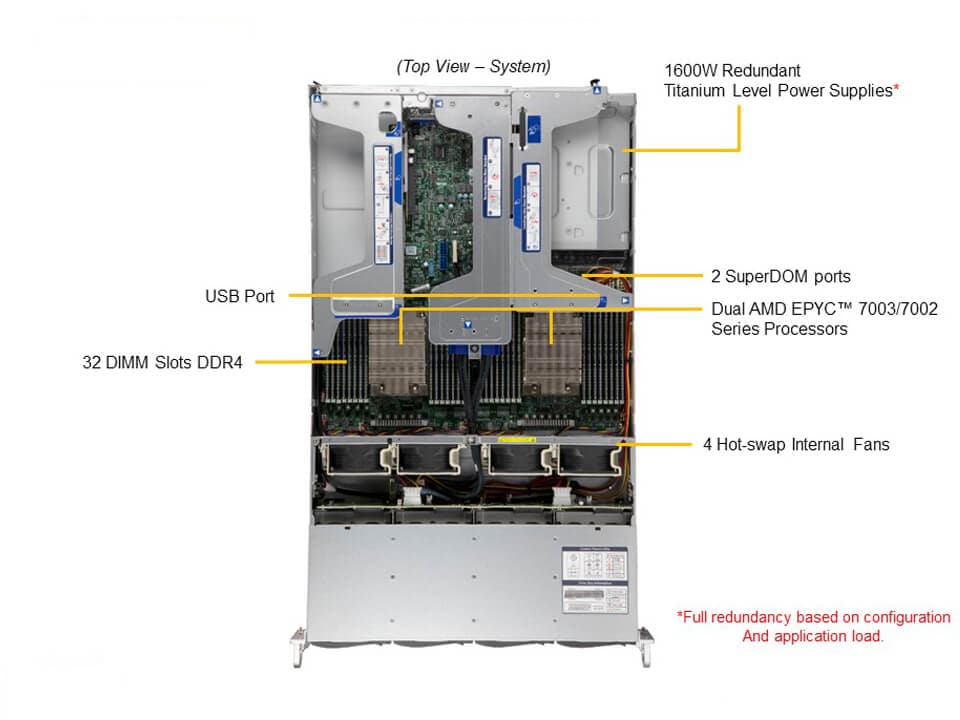

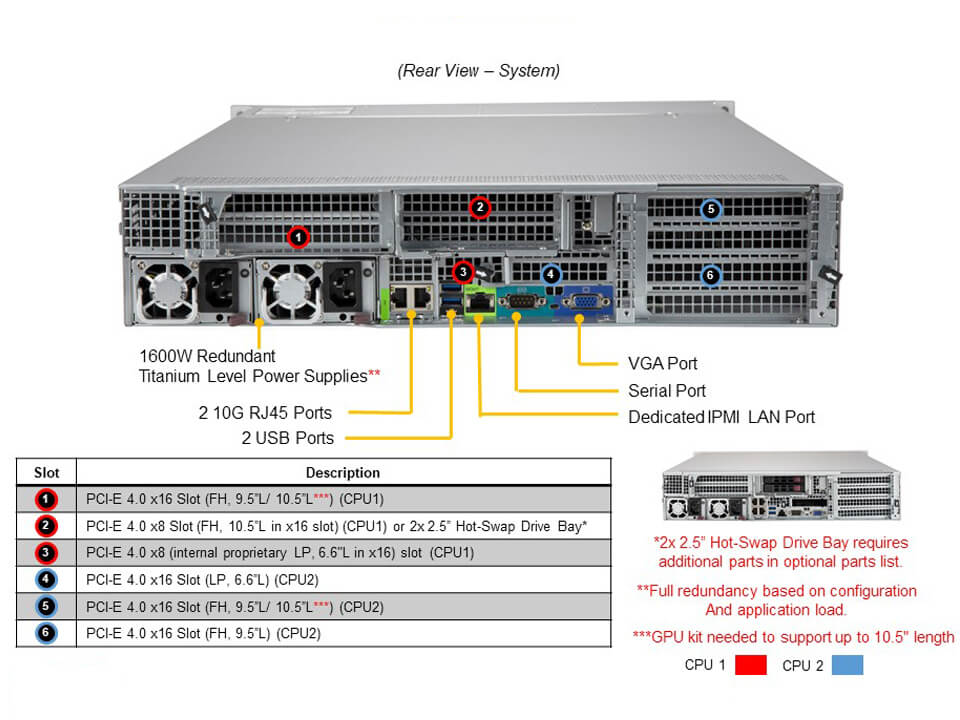

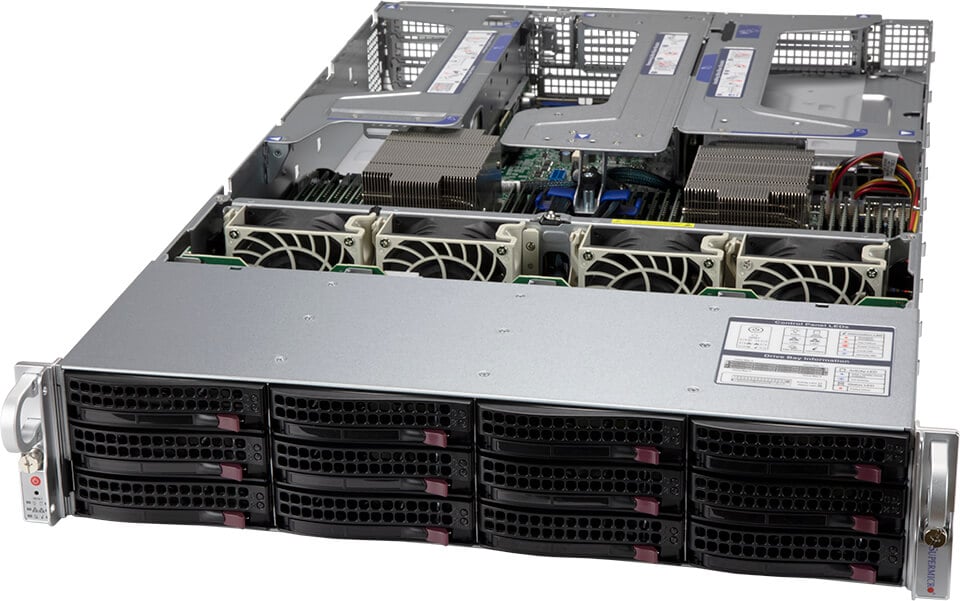

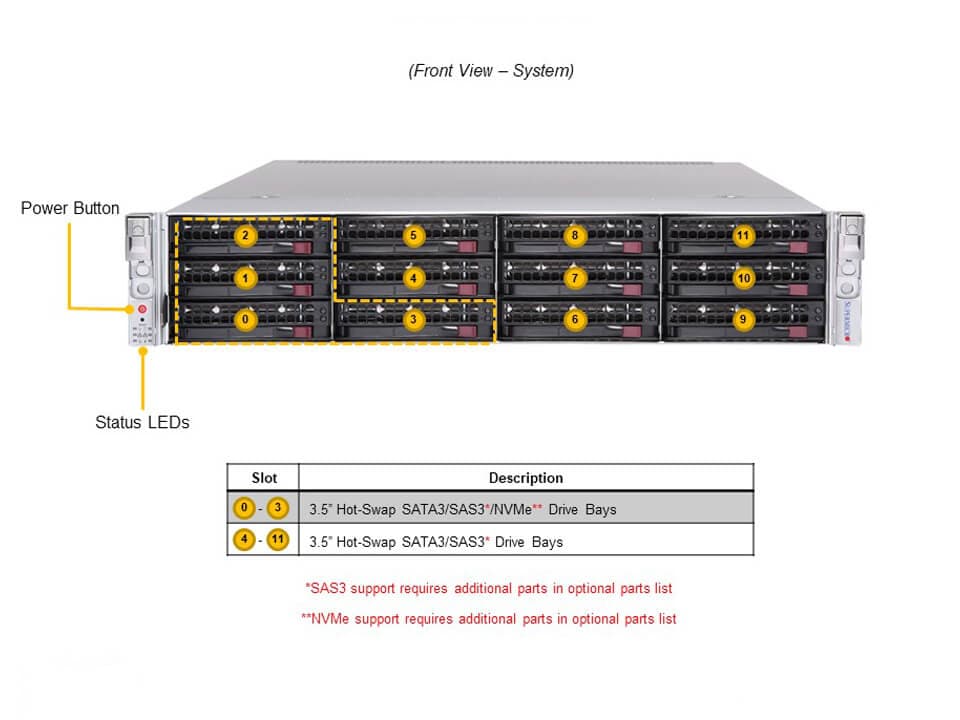

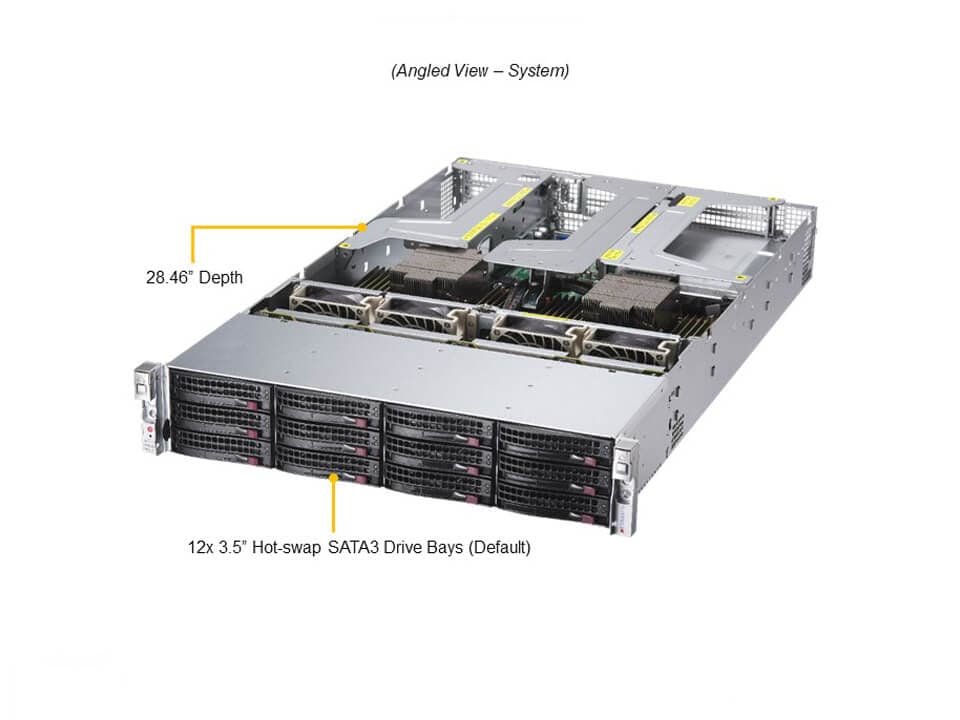

AS -2024US-TRT Main AS -2024US-TRT Angle AS -2024US-TRT Top AS -2024US-TRT Front AS -2024US-TRT Rear
Integrated Board: H12DSU-iN
Learn more

Key Applications

  • Virtualization
  • Cloud Computing
  • High End Enterprise Server
  • Hyperconverged Storage
  • Flexible Networking Options

Key Features

  1. Dual AMD EPYC™ 7003/7002 Series Processors
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  2. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
  3. 2 PCIe 4.0 x16 (FH, 10.5" L) slots,
    1 PCIe 4.0 x16 (FH, 9.5" L) slot,
    1 PCIe 4.0 x16 (LP) slot,
    1 PCIe 4.0 x8 (FH, 9.5" L, in x16) slot,
    1 PCIe 4.0 x8 (internal proprietary LP in x16) slot
  4. Dual 10GBase-T LAN ports via Intel® X710-AT2
  5. 12 SATA3 by default
    or 8 SATA3 + 4 NVMe via optional tray
    or 12 SAS3 via optional SAS kit
...
...
AS-2024US-TRT
Specifications Resources & Downloads
Specifications
Product SKUs
A+ Server AS -2024US-TRT
Motherboard
Super H12DSU-iN
Processor
CPU
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width or 4 single-width GPUs
Supported GPU
  • NVIDIA PCIe: T4, RTX A6000, RTX A5000, RTX A4000, RTX A2000, RTX 8000, RTX 6000, RTX 4000, A40, A16, A2, A100, A10
  • AMD PCIe: Instinct MI210, Instinct MI100
  • View GPU Options
System Memory
Memory
  • Slot Count: 32 DIMM slots/8 Channels
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • System on Chip
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 3 USB 3.0 Type-A ports(Rear)
Video
  • 1 VGA port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
BIOS Features
  • PCI 2.2
  • Plug and Play (PnP)
  • USB Keyboard support
  • DMI 2.3
  • ACPI 5.1
  • SMBIOS 3.1.1
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal control for 8x Fan connectors
  • I²C Temperature Sensing Logic
FAN
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Up to 8-fan status tachometer monitoring
  • Up to eight 4-pin fan headers
CPU
  • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
  • CPU switching voltage regulator
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-829U2TS-R1K62P3-T
Dimensions and Weight
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 28.46" (723 mm)
Package
  • 10.28" (H) x 24.65" (W) x 45.39" (D)
Weight
  • Gross Weight: 72 lbs (32.7 kg)
  • Net Weight: 36 lbs (16.4 kg)
Available Color
  • N/A
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 4.0 x16 FH/10.5"L slots
    • 1 PCIe 4.0 x16 LP slot
    • 1 PCIe 4.0 x8 LP slot
    • 1 PCIe 4.0 x16 FH, 9.5"L slot
    • 1 PCIe 4.0 x8 FH, 9.5"L, in x16 slot
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bays
    • 12 front hot-swap 3.5" SATA drive bays
  • Option A: Total 12 bays
    • 8 front hot-swap 3.5" SATA drive bays
    • 4 front hot-swap 3.5"/2.5" NVMe* drive bays
  • Option B: Total 12 bays
    • 12 front hot-swap 3.5" SAS* drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 4 heavy duty fans with optimal fan speed control
Power Supply
2x 1600W
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
AC Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
+12VMax: 83.3A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
12V SBMax: 2.1A / Min: 0A
Output TypeBackplanes (gold finger)
CertificationTitanium Level94%+  Titanium Level

[ Test Report ]
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
