SuperServer AS -2124US-TNRP (Complete System Only)

2U Ultra with 24 NVMe bays and dual 10GbE + dual 10G SFP+

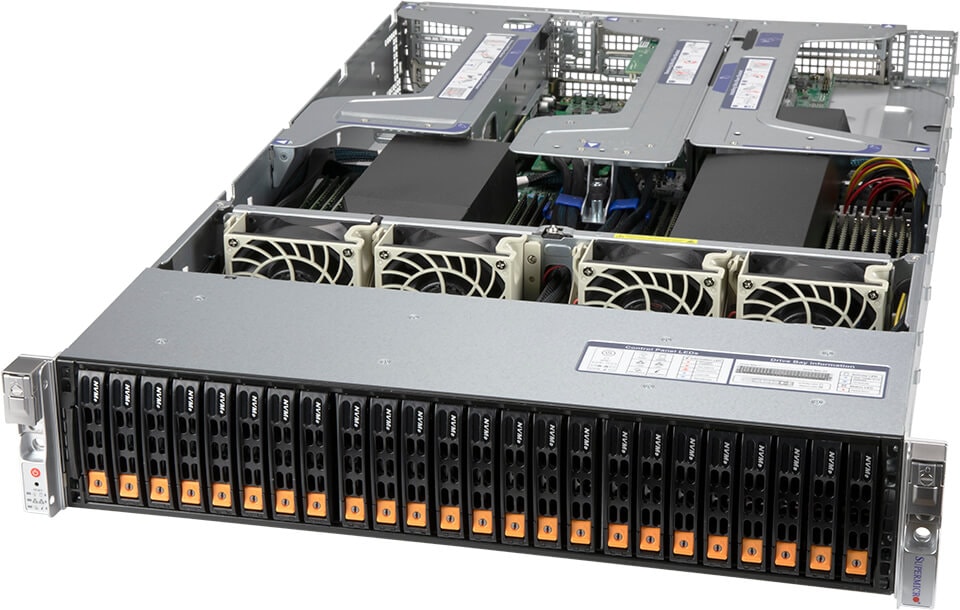

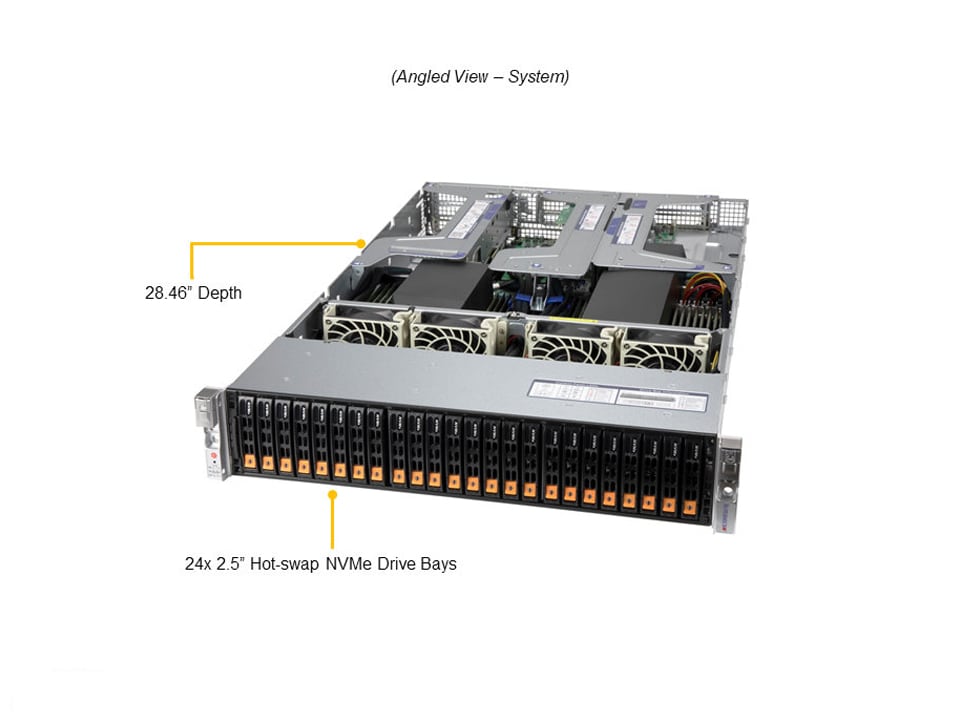

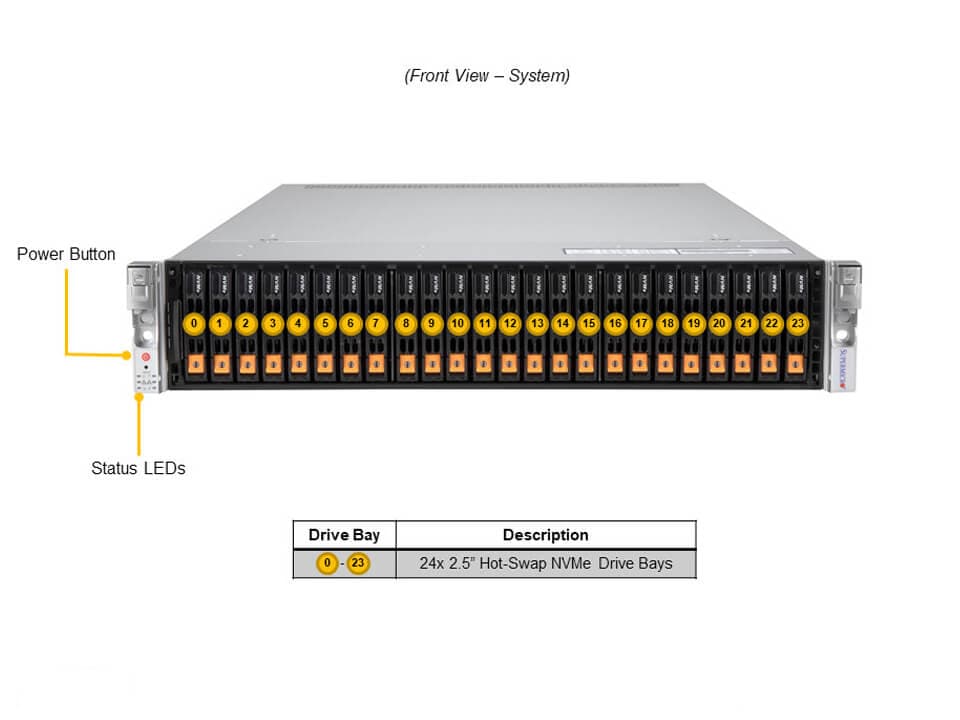

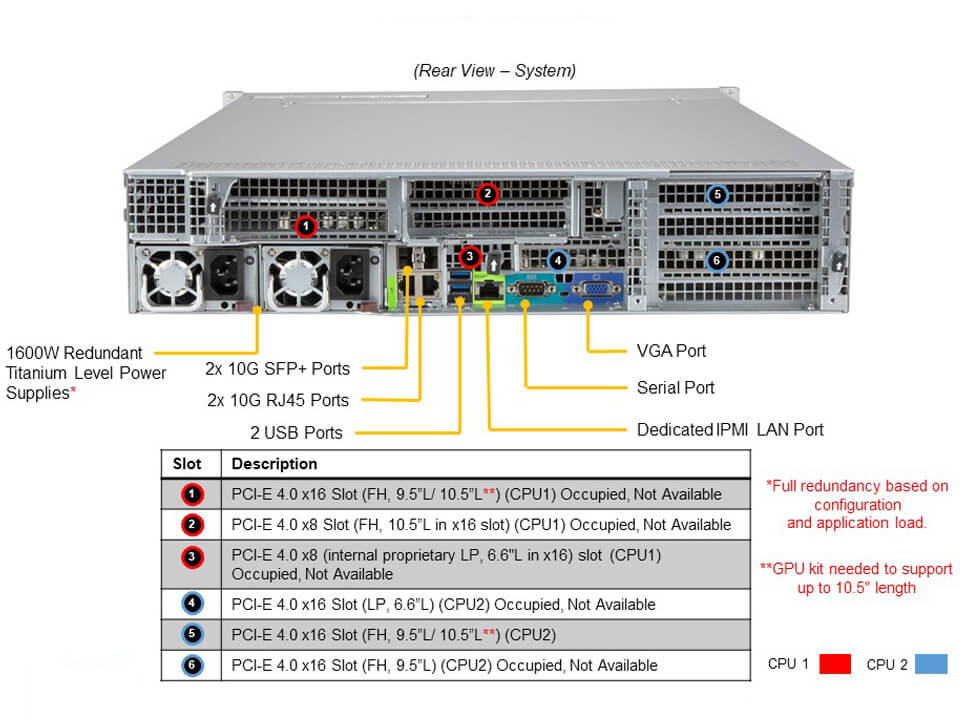

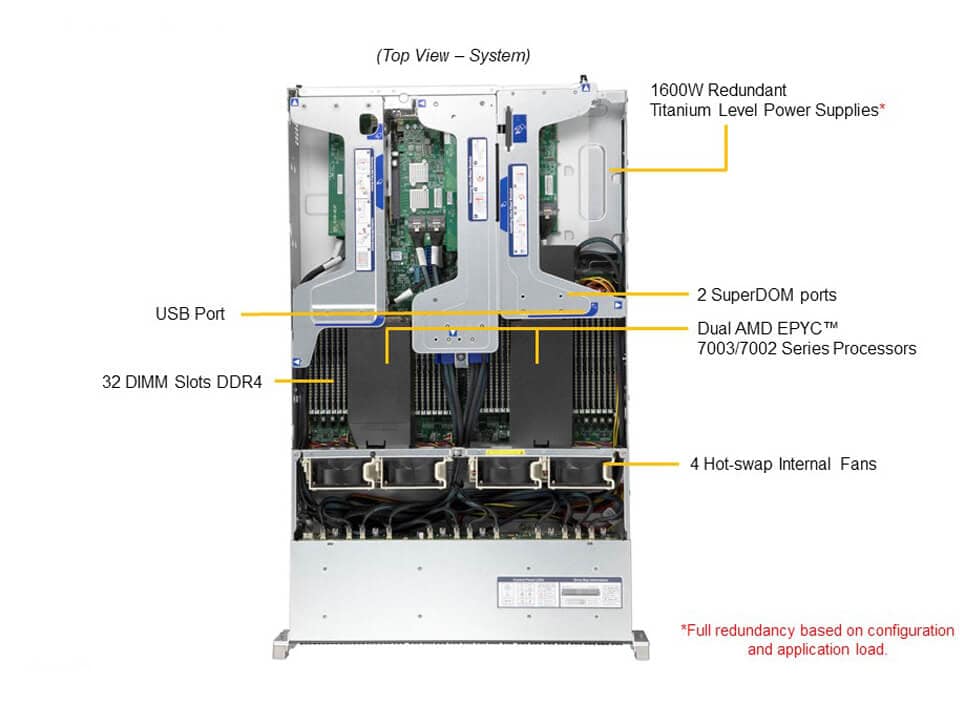

AS -2124US-TNRP Main AS -2124US-TNRP Angle AS -2124US-TNRP Top AS -2124US-TNRP Front AS -2124US-TNRP Rear
Integrated Board: H12DSU-iN
Learn more

Key Applications

  • Virtualization
  • Cloud Computing
  • High End Enterprise Server
  • Hyperconverged Storage

Key Features

  1. Dual AMD EPYC™ 7003/7002 Series Processors
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  2. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
  3. 1 PCIe 4.0 x16 slot (FH, 9.5" L)
    Additional PCIe slots may available if using the 24 SAS Kits solution (Please contact SMC for more information)
  4. 24 Hot-swap 2.5" NVMe drive bays
    Up to 24 SATA/SAS drive support via optional SAS kit
...
...
AS-2124US-TNRP
Specifications Resources & Downloads
Specifications
Product SKUs
A+ Server AS -2124US-TNRP
Motherboard
Super H12DSU-iN
Processor
CPU
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 2 RJ45 10 GBASE-T LAN ports
  • 2 SFP+ 10 GbE LAN ports
USB
  • 2 USB 3.0 ports(rear)
  • 1 USB 3.0 Type-A port
Video
  • 2 VGA ports
DOM
  • 2 SATA DOM (Disk on Module) ports
TPM
  • 1 TPM header
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal control for 4x Fan connectors
FAN
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Up to 4-fan status tachometer monitoring
  • Up to four 4-pin fan headers
CPU
  • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
  • CPU switching voltage regulator
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-829U2TS-R1K62P3-T
Dimensions and Weight
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 28.46" (723 mm)
Package
  • 10.28" (H) x 24.65" (W) x 45.39" (D)
Weight
  • Gross Weight: 63 lbs (28.6 kg)
  • Net Weight: 39 lbs (17.7 kg)
Available Color
  • N/A
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 24 bays
    • 24 front hot-swap 2.5" NVMe drive bays
  • Option A: Total 24 bays
    • 24 front hot-swap 2.5" SAS*/SATA* drive bays
  • (*SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 4 heavy-duty PWM with optimal fan speed control Fan(s)
Power Supply
2x 1600W
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
AC Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
+12VMax: 83.3A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
12V SBMax: 2.1A / Min: 0A
Output TypeBackplanes (gold finger)
CertificationTitanium Level94%+  Titanium Level

[ Test Report ]
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
