SuperServer AS -8125GS-TNHR (Complete System Only)

DP AMD 8U System with NVIDIA HGX H100/H200 8-GPU

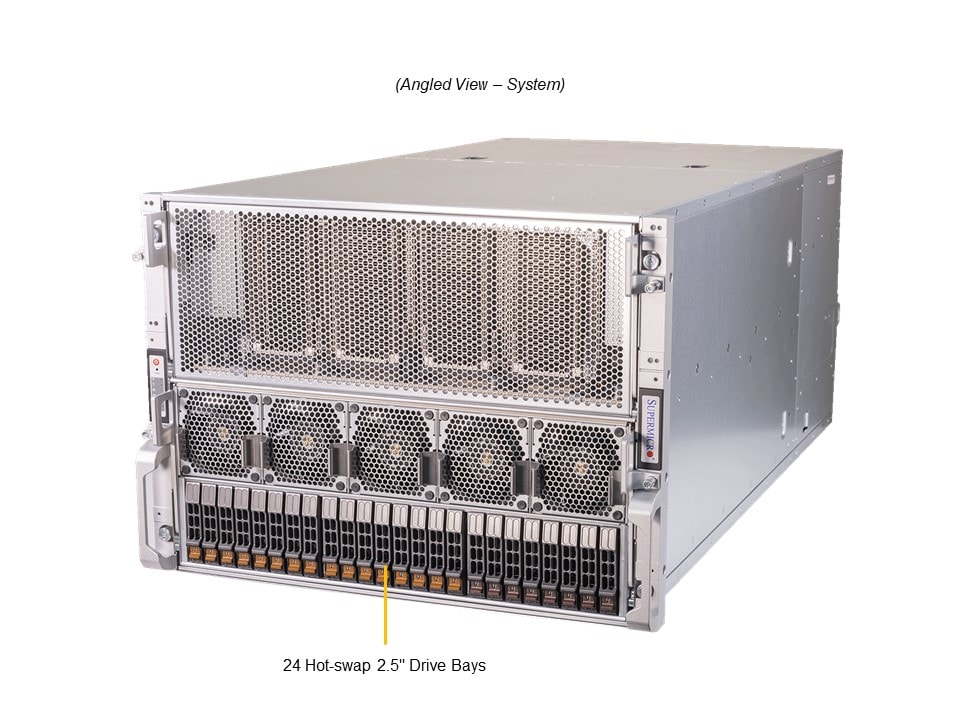

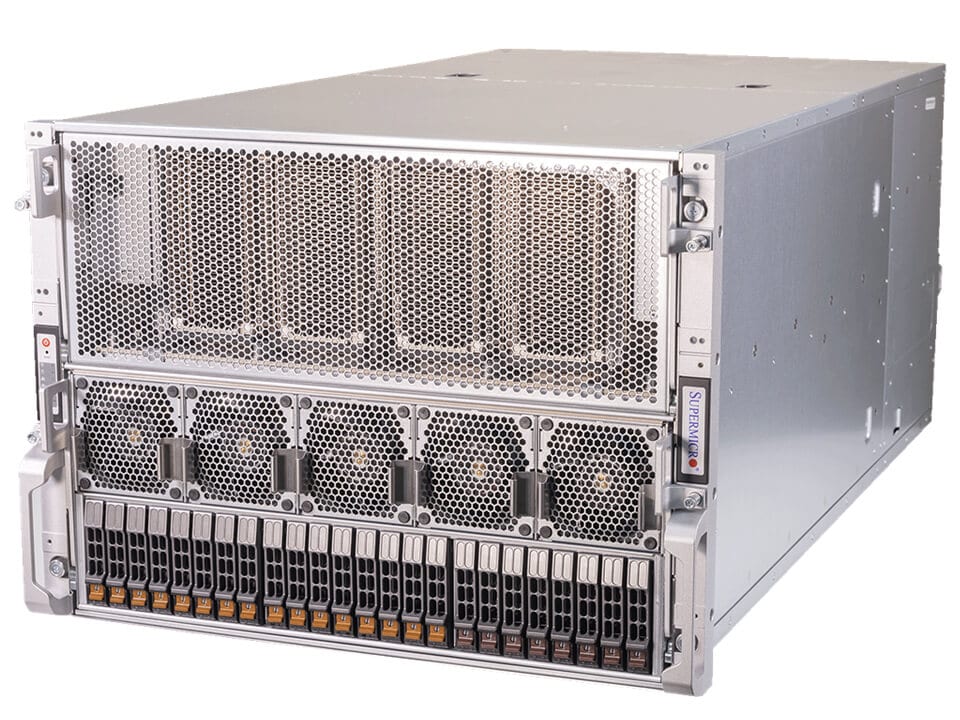

AS -8125GS-TNHR Main AS -8125GS-TNHR Angle AS -8125GS-TNHR Top AS -8125GS-TNHR Top1 AS -8125GS-TNHR Front AS -8125GS-TNHR Rear
Integrated Board: H13DSG-O-CPU-D
Learn more

Key Applications

  • High Performance Computing
  • AI/Deep Learning Training
  • Industrial Automation, Retail
  • Climate and Weather Modeling

Key Features

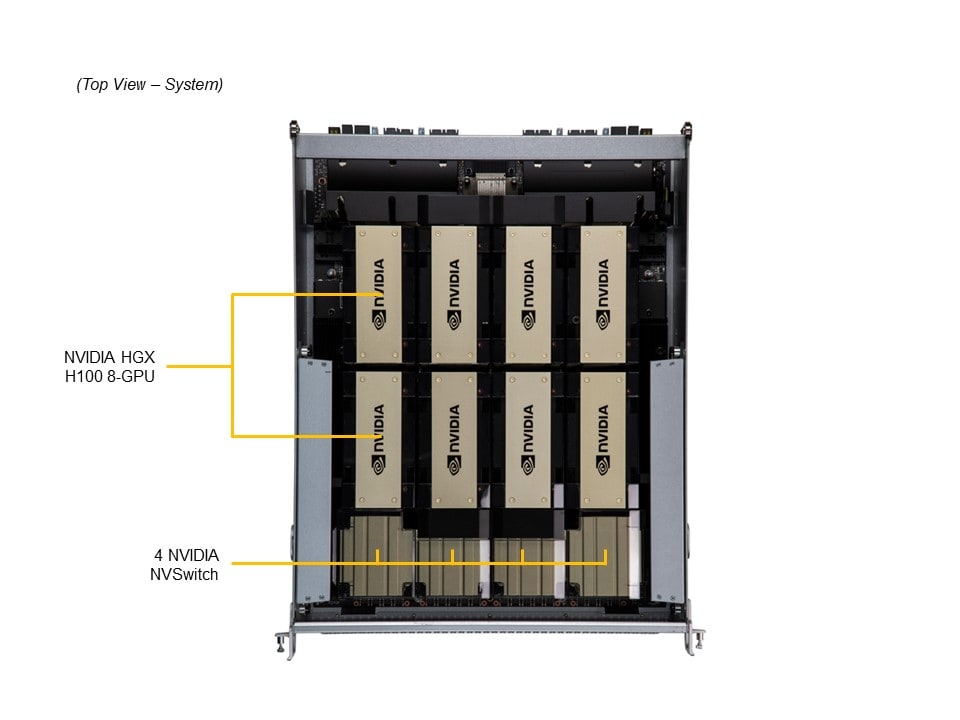

  1. High density 8U system for NVIDIA® HGX™ H100/H200 8-GPU
    Highest GPU communication using NVIDIA® NVLINK™ + NVIDIA® NVSwitch™
    8 NIC for GPU direct RDMA (1:1 GPU Ratio)
  2. 24 DIMM slots DDR5; up to 6TB 4800MT/s ECC LRDIMM/RDIMM
  3. Up to 8 PCIe 5.0 x16 LP + 4 PCIe 5.0 x16 FHFL slots
  4. Flexible networking options
  5. 12 Hot-swap 2.5" NVMe drive bays + 2 hot-swap 2.5" SATA drive bays
    + 4 hot-swap 2.5" NVMe drive bays (optional)
    1 M.2 NVMe for boot drive only
  6. 10 heavy duty fans with optimal fan speed control
  7. 6x 3000W redundant Titanium level power supplies
...
...
AS-8125GS-TNHR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
A+ Server AS -8125GS-TNHR
Motherboard
Super H13DSG-O-CPU-D
Processor
CPU
Core Count
  • Up to 128C/256T
Note
  • Supports up to 400W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 8 onboard GPUs
Supported GPU
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink® with NVSwitch™
Certification

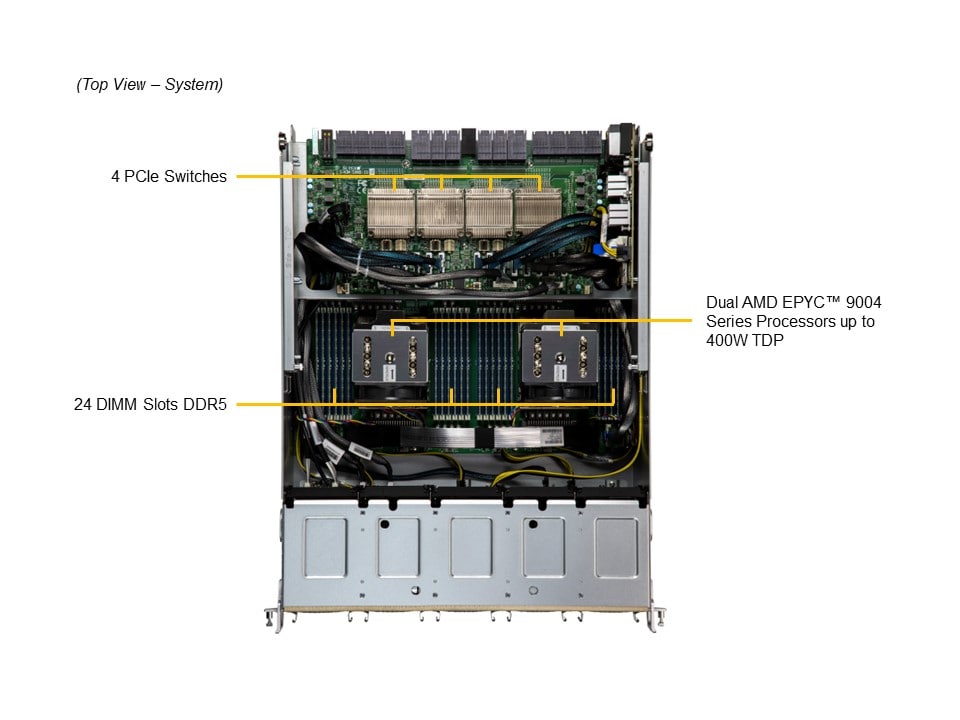

System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • AMD SP5
Network Connectivity
Input / Output
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 +1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 8U Rackmount
Model
  • CSE-GP801TS
Dimensions and Weight
Height
  • 14" (355.6 mm)
Width
  • 17.2" (437 mm)
Depth
  • 33.2" (843.28 mm)
Package
  • 29.5" (H) x 27.5" (W) x 51.2" (D)
Weight
  • Gross Weight: 225 lbs (102.1 kg)
  • Net Weight: 166 lbs (75.3 kg)
Available Color
  • Black front & silver body
Front Panel
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED
Buttons
  • Power On/Off button
  • System Reset button

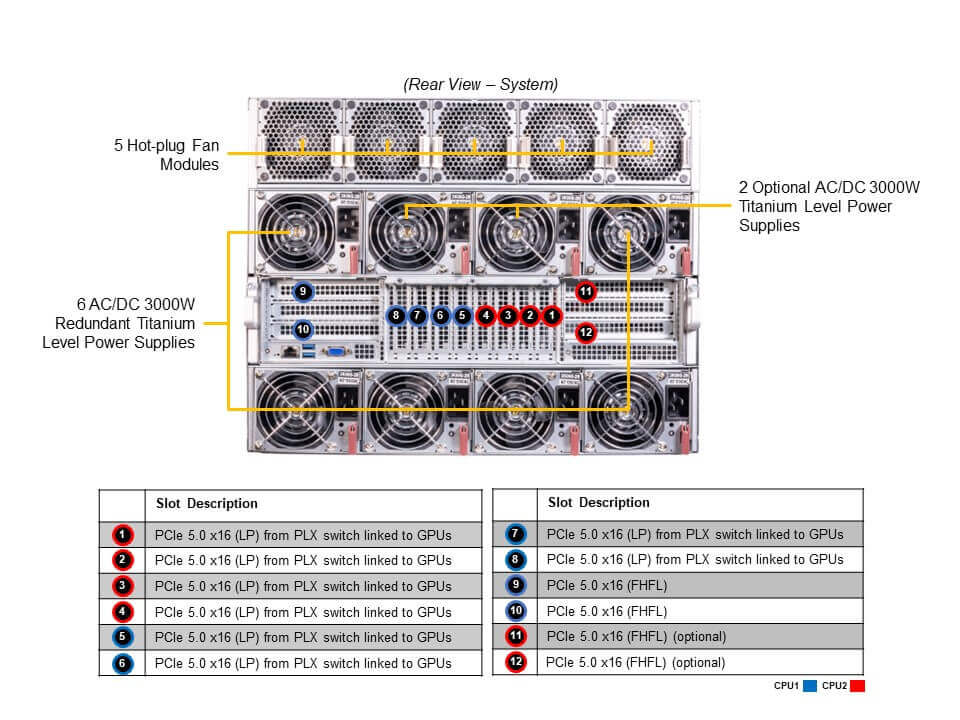

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 8 PCIe 5.0 x16 LP slots
    • 2 PCIe 5.0 x16 FHFL slots
  • Option A
    • 8 PCIe 5.0 x16 LP slots
    • 4 PCIe 5.0 x16 FHFL slots
  • View AOC Options

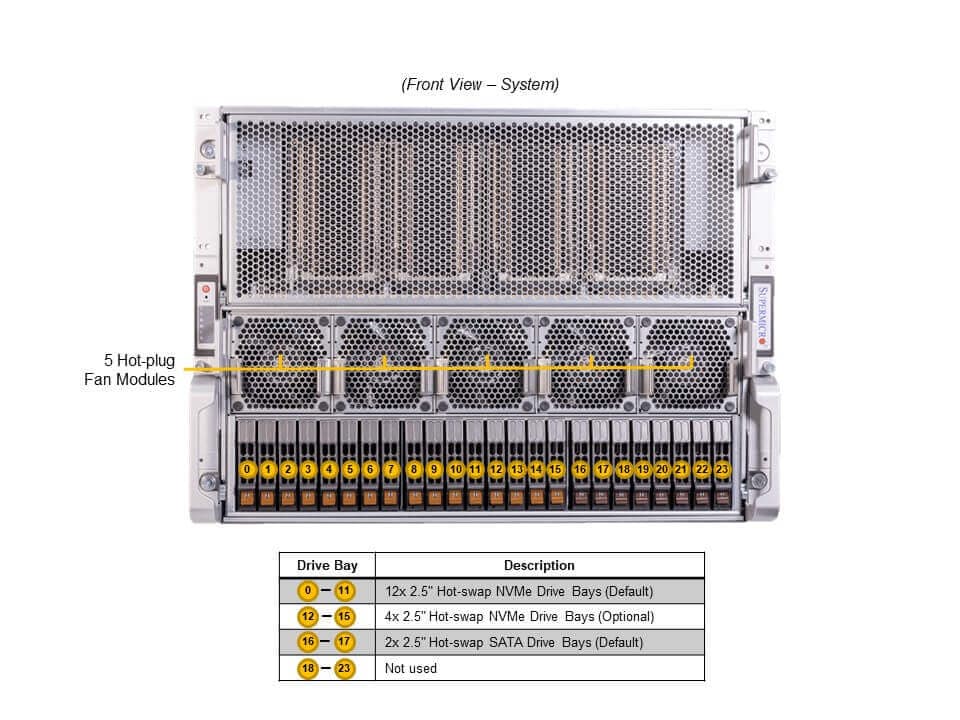

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 18 bays
    • 2 front hot-swap 2.5" SATA drive bays
    • 4 front hot-swap 2.5" NVMe* drive bays
    • 12 front hot-swap 2.5" NVMe drive bays
  • (*NVMe support may require additional storage controller and/or cables)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 10 heavy duty fans with optimal fan speed control
Power Supply
6x 3000W
6x 3000W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)106.5 x 82.1 x 245.5 mm
AC Input3000W: 0240Vdc / 50-60Hz (for CQC only)
2880W: 200-207Vac / 50-60Hz
3000W: 207-240Vac / 50-60Hz
3000W:
DC Input
+12VMax: 91.66A / Min: 0A (200Vac-240Vac)
12V SBMax: 3A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
NVMe and PCIe add on Kit AOM-DP801-PCIE-P AOM-DP801-SW-P CBL-MCIO-1255M5 • CBL-PWEX-1142-40 1 1 4 1 Enables additional 4x NVMe drive bay support, and 2x additional PCIe Gen5 x16 slots.
