SuperServer SYS-420GP-TNR (Complete System Only)

DP Intel, Dual-Root System with 10 PCIe GPUs

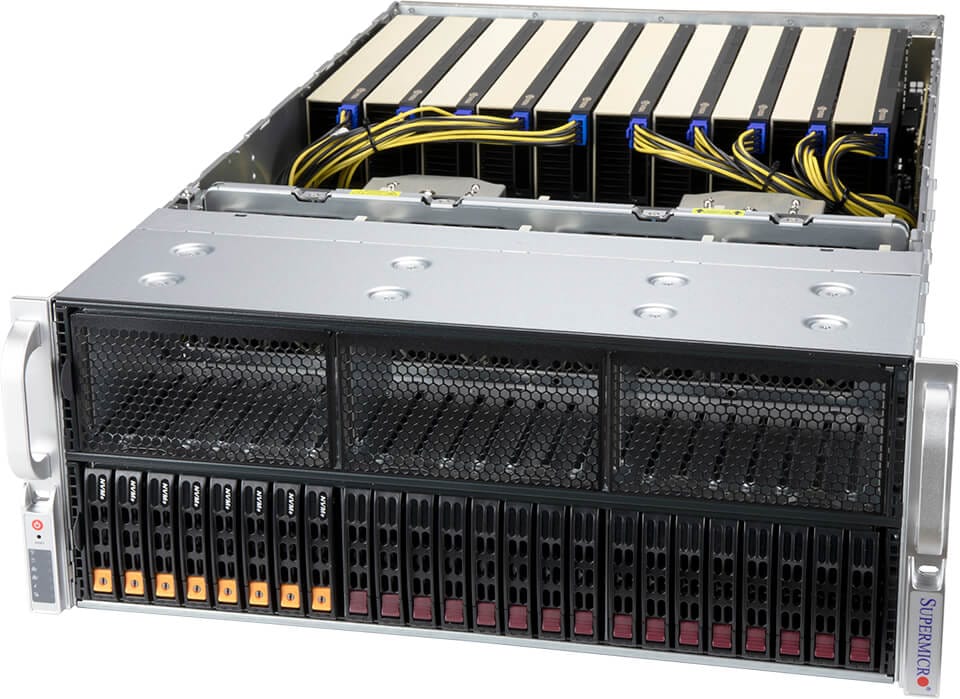

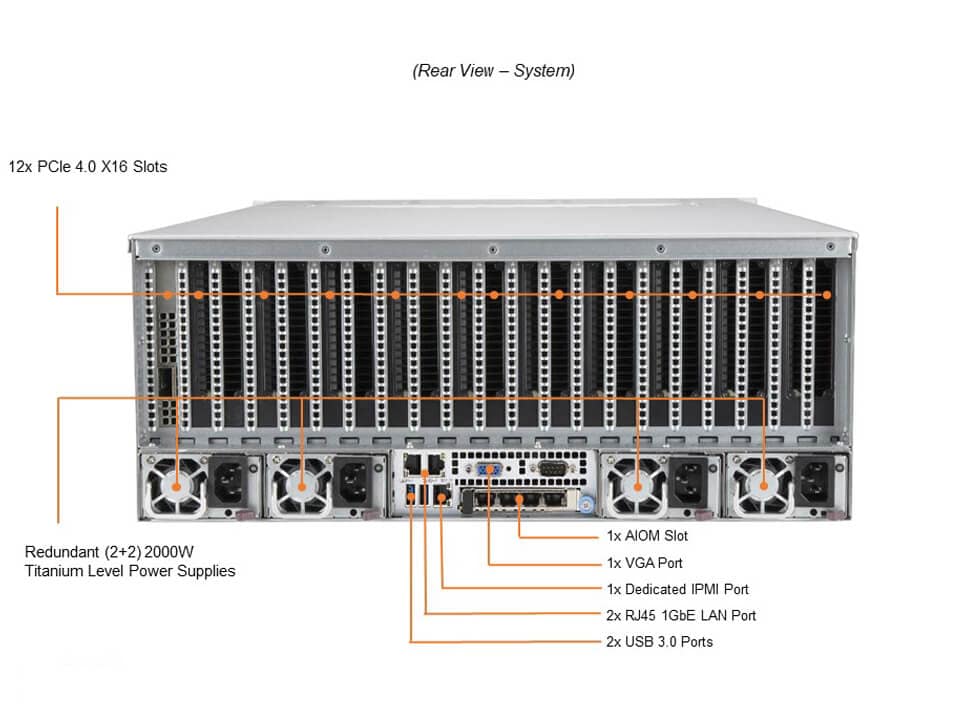

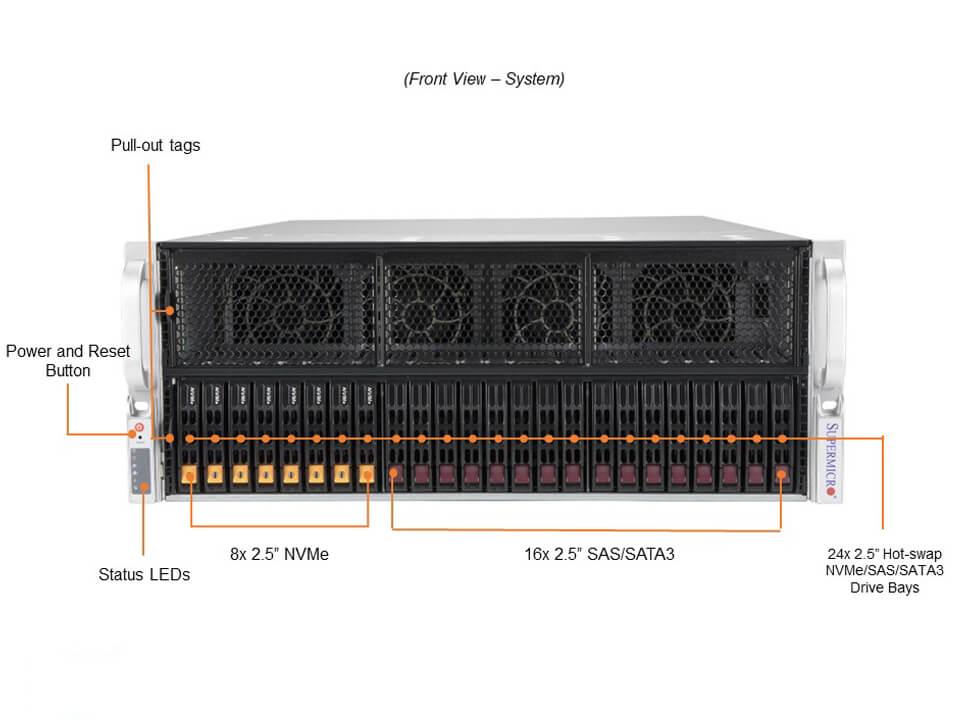

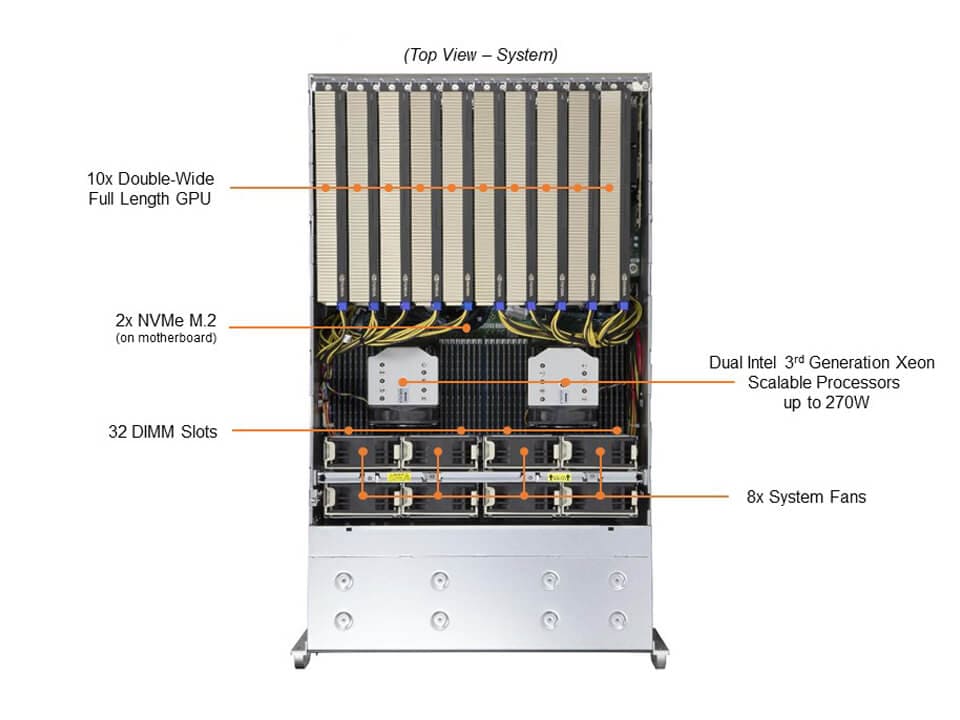

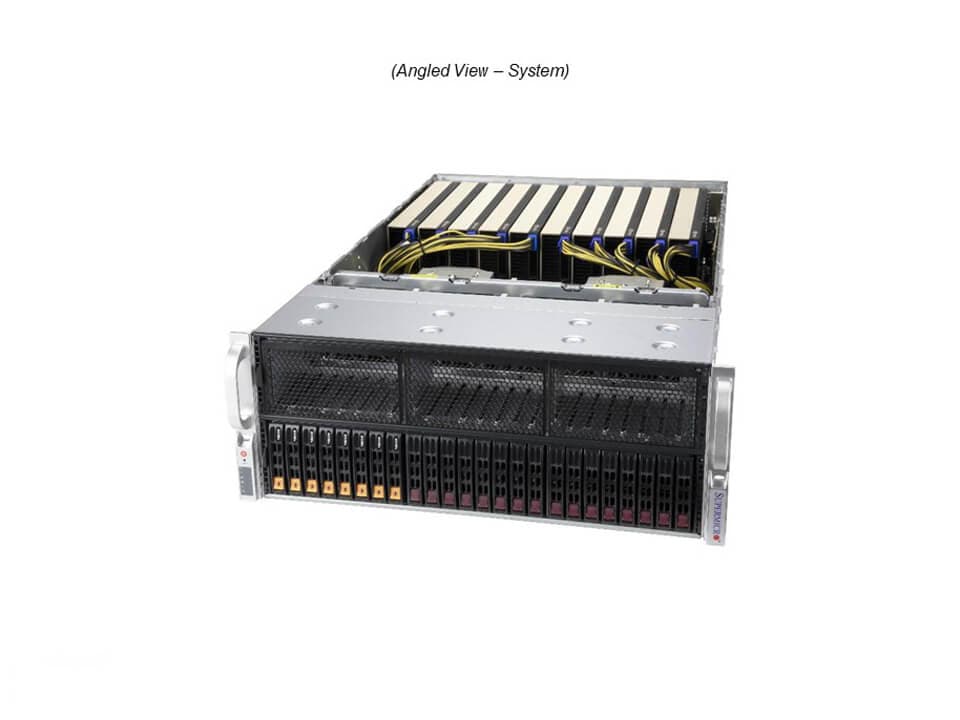

SYS-420GP-TNR Main SYS-420GP-TNR Angle SYS-420GP-TNR Top SYS-420GP-TNR Front SYS-420GP-TNR Rear
Integrated Board: X12DPG-OA6
Learn more

Key Applications

  • High Performance Computing
  • Rendering
  • VDI
  • AI/Deep Learning Training

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
  4. AIOM/OCP 3.0 Support
    12 PCIe Gen 4.0 X16 FHFL Slots
  5. Flexible networking options
  6. Total 24x 2.5" Hot-swap drive bays
    8x HOT SWAP 2.5” NVMe
    8x HOT SWAP 2.5” SATA
    8x HOT SWAP 2.5” SATA/SAS (AOC required)
    2x M.2 NVMe for boot drive only
  7. 8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
  8. 4x 2000W redundant Titanium level power supplies
...
...
SYS-420GP-TNR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-420GP-TNR
Motherboard
Super X12DPG-OA6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 10 double-width or 10 single-width GPUs
Supported GPU
  • NVIDIA PCIe: H100, L40, RTX A5500, A40, RTX A6000, RTX A5000, RTX A4500, RTX A4000, RTX A2000, A40, A30, A16, A2, A100, A10
  • Intel PCIe: Intel Data Center GPU Flex 170
  • View GPU Options
CPU-GPU Interconnect
  • PCIe 4.0 x16 Switch Dual-Root
GPU-GPU Interconnect
  • NVIDIA® NVLink® Bridge (optional)
Certification
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 +1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-418G2TS-R4016BP
Dimensions and Weight
Height
  • 7" (178 mm)
Width
  • 17.2" (437 mm)
Depth
  • 29" (737 mm)
Package
  • 26.57" (H) x 27" (W) x 41" (D)
Weight
  • Gross Weight: 100 lbs (45.3 kg)
  • Net Weight: 65.5 lbs (29.7 kg)
Available Color
  • Black Front & Silver Body
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 24 bays
    • 8 front hot-swap 2.5" NVMe drive bays
    • 16 front hot-swap 2.5" SAS/SATA drive bays
  • Option A: Total 24 bays
    • 24 front hot-swap 2.5" NVMe*/SAS/SATA drive bays
  • (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 8 heavy duty fans with optimal fan speed control
Power Supply
4x 2000W
4x 2000W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
AC Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc
2000W: 230-240Vac
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for China only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
12V SBMax: 3.5A / Min: 0A
Max: 3.5A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
2.5" NVMe Drive Trays MCP-220-00121-0B 1 per drive Black Gen-3 2.5" NVMe drive tray. Orange tab with lock.
MCP-220-00167-0B 1 per drive Black Gen-3 2.5" NVMe drive tray. Orange tab with lock. Tool-less.
2.5" SATA Drive Trays MCP-220-00047-0B 1 per drive Black gen 3rd hot-swap 2.5inch HDD tray
Global Services & Support OSNBD3/2/1 - 3/2/1 Year Onsite NBD Service
OS4HR3/2/1 - 3/2/1 Year Onsite 24x7x4 Service
GPU Cables CBL-PWEX-1040 1 per GPU GPU power cable. 8pin MALE CPU to 2x 6pin FEMALE / 2x 1pin FEMALE. 5cm 20AWG/16AWG.- NVIDIA A4000
CBL-PWEX-1028 (* 10 qty. included with each system.)* 1 per GPU GPU power cable. 8 pin FEMALE CPU BLUE to 8 pin FEMALE CPU BLUE. 30CM. 16AWG. - NVIDIA A100 40GB / 80GB- NVIDIA A16- NVIDIA A30- NVIDIA A40- NVIDIA A6000
CBL-PWEX-0665 1 per GPU GPU power cable. 8 pin FEMALE CPU BLUE to 8 pin FEMALE 20CM.  20AWG/16AWG. - NVIDIA A10- NVIDIA A5000
GPU Dummy Tray MCP-240-00096-0N 1 GPU / Add-on Card Dummy Assembly (2 Slots)
Network and Cables CBL-NTWK-0942-MQ28E20M 1 InfiniBand, EDR, QSFP28, 100GbE, PASSIVE, 28 AWG, 2M, Mellanox,RoHS
AOC-ATG-i2TM 1 AIOM 2-port 10GBase-T RJ45, Intel X550,RoHS
AOC-683105AN-HDAT 1 Nvidia MCX683105AN-HDAT PCIe 1-port HDR 200G QSFP56 Gen4x16 Cx-6 DE, RoHS
AOC-STGS-i2T 1 Intel X550-AT2 2 RJ45 (10Gb/port) Gen3 x4 Standard Low Profile
AOC-S40G-I2Q 1 Intel XL710-BM2 2-port QSFP+ (40Gb/port) Gen3 x8 Standard Low Profile
AOC-ATG-i2T2SM 1 AIOM Quad-Port 10GbE (2x RJ45 & 2x SFP+) based on Intel X710-TM4,RoHS
AOC-ATG-i4SM 1 AIOM Quad-Port 10GbE SFP+, based on Intel XL710-BM1,RoHS
AOC-ATG-i2SM 1 AIOM Dual-Port 10GbE SFP+, based on X710-BM2,RoHS
AOC-653105A-HDAT 1 Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card Single port, QSFP56, PCIe 3.0/4.0 x16, RoHS
AOC-653106A-ECAT 1 ConnectX-6 VPI Card. 100Gb/s InfiniBand & Ethernet Adapter Card, Dual ports, QSFP56, PCIe 3.0/4.0 x16. HF, RoHS.
AOC-S25G-I2S 1 Standard Low Profile 25G dual port SFP28, based on Intel XXV710
AOC-A100G-b2C 1 AIOM Dual Port 100GbE QSFP28, based on Broadcom BCM57508,RoHS
AOC-A25G-M2S 1 AIOM Dual-Port 25GbE SFP28, Mellanox CX-6 LX w/ 1U height bracket,RoHS
AOC-S100GC-i2C 1 Standard PCIe 4.0 x 16 dual port 100GbE with QSFP28 based on Intel E810-CAM2,RoHS
MCX653106A-HDAT 1 Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card dual ports, QSFP56 PCIe 3.0/4.0 x16. HF, RoHS
CBL-NTWK-0942-MQ28E50M 1 InfiniBand, EDR, QSFP28,100GbE,PASSIVE, 28 AWG, 5M, Mellanox,RoHS
CBL-NTWK-0942-MQ28C30M 1 ETHERNET,QSFP28,100GbE,PASSIVE,LSZH,3m,Mellanox
MCX653105A-ECAT 1 Mellanox MCX653105A-ECAT PCIe 1-port IB-HDR100 & 100GbE QSFP56 Gen3.0/4.0 x16 CX-6 VPI. HF, RoHS.
AOC-S25G-M2S 1 2 Port 25 Gigabit SFP28 PCIe X8 Ethernet card. Based on Mellanox ConnectX-4 LX EN
AOC-A25G-m2SM 1 AIOM 2-port 25GbE SFP28, Mellanox CX-6 LX w/ 0.5U height bracket,RoHS
AOC-S25G-i2S 1 Standard Low Profile 25G dual port SFP28, based on Intel XXV710+ Marvell Unionville,RoHS
Note * Requires x2 CBL-SAST-1281-100 - -
** Requires x1 CBL-SAST-1281-100 - -
*** Requires MCP-240-00203-0N - -
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Storage Control Cards and Cables CBL-SAST-1281-100 1 Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM,
AOC-S3808L-L8IT ** 1 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS
BTR-CVPM05 *** 1 Supermicro Broadcom CACHEVAULT FOR AOC-S3916L-H16IR
MCP-240-00203-0N 1 Remote Mounting Board for Supercap / Cache Vault. Occupies single PCIE SLOT.
AOC-S3916L-H16IR-32DD * 1 16 int 12Gb/s ports, x8 Gen4, ROC - LP, 32 HDD w/ exp,RoHS

GPU SuperServer SYS-420GP-TNR (Complete System Only )
