SuperServer SYS-421GE-TNRT (Complete System Only)

DP Intel 4U Dual-Root PCIe GPU System with up to 10 GPUs

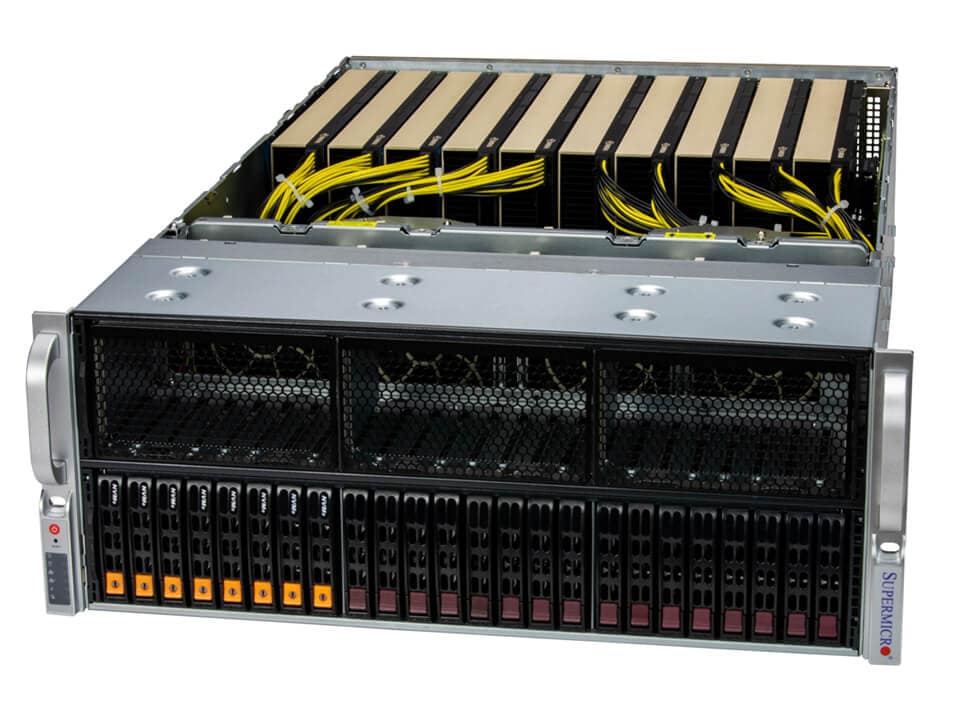

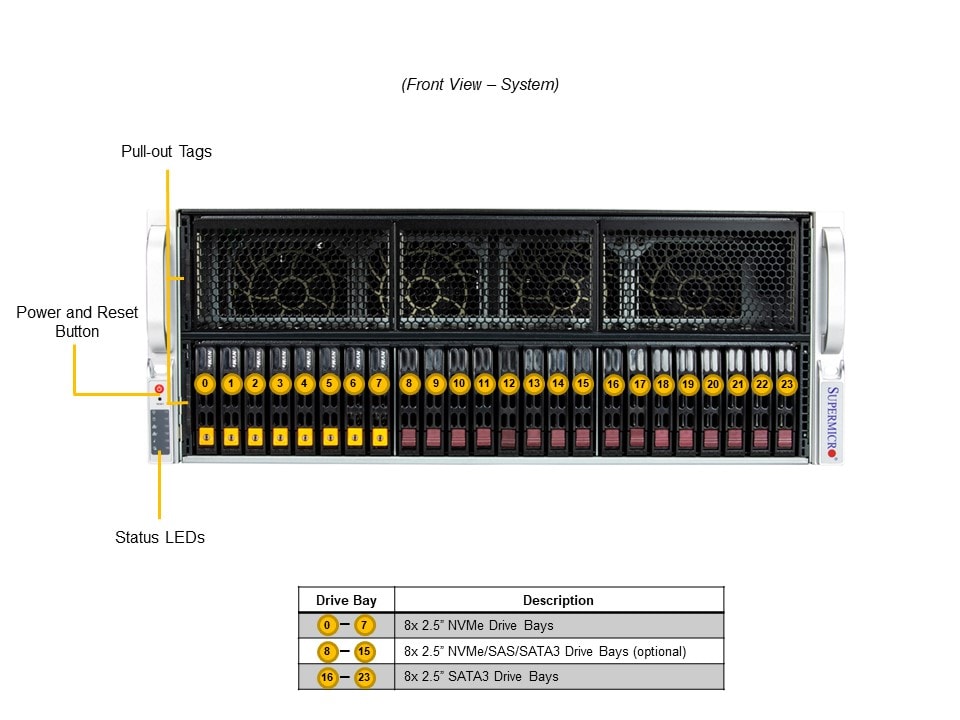

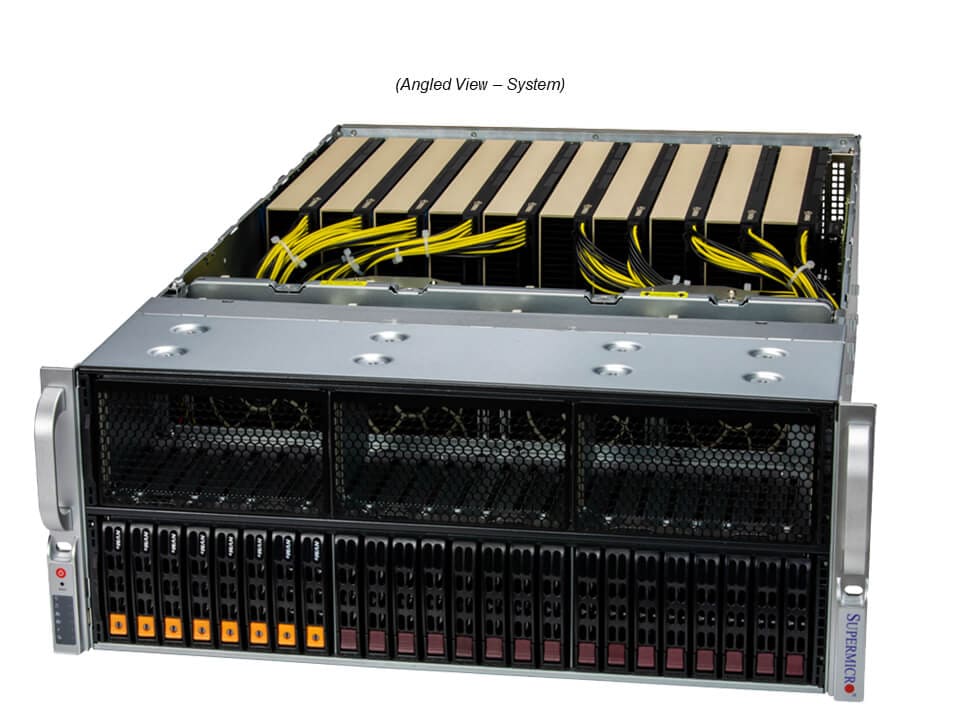

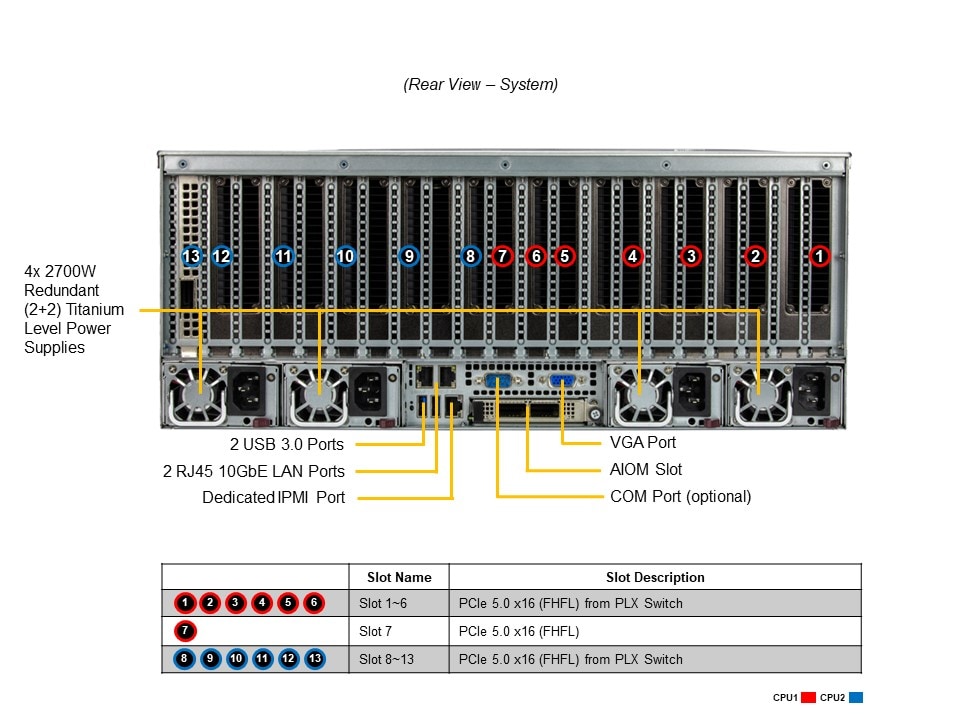

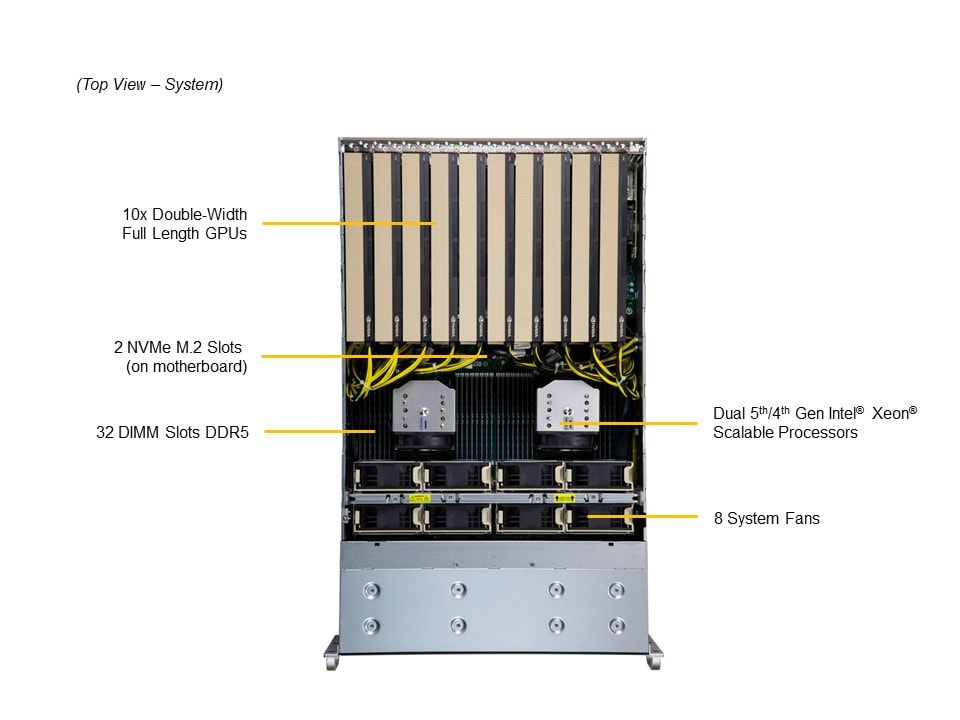

SYS-421GE-TNRT Main SYS-421GE-TNRT Angle SYS-421GE-TNRT Top SYS-421GE-TNRT Front SYS-421GE-TNRT Rear
Integrated Board: X13DEG-OA
Learn more

Key Applications

  • High Performance Computing
  • VDI
  • AI/Deep Learning Training
  • Media/Video Streaming
  • Cloud Gaming
  • Animation and Modeling
  • Design & Visualization
  • 3D Rendering
  • Diagnostic Imaging

Key Features

  1. 5th/4th Gen Intel®  Xeon® Scalable processor support
  2. 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
  3. AIOM/OCP 3.0 Support
    13 PCIe Gen 5.0 X16 FHFL Slots
  4. 8x HOT SWAP 2.5” SATA/SAS (AOC required)
    8x 2.5" Hot-swap  SATA drive bays
    8x2.5" Hot-swap  NVMe drive bays
  5. 8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
  6. 4x 2700W (2+2) Redundant Power Supplies, Titanium Level
...
...
SYS-421GE-TNRT
Specifications Resources & Downloads
Specifications
Product SKUs
SuperServer SYS-421GE-TNRT
Motherboard
Super X13DEG-OA
Processor
CPU
Core Count
  • Up to 64C/128T; Up to 320MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
  • Supports up to 385W TDP CPUs (Liquid Cooled)​
GPU
Max GPU Count
  • Up to 10 double-width or 10 single-width GPUs
Supported GPU
  • NVIDIA PCIe: H100, L40, RTX A4000, RTX 6000 Ada Generation, L40S, A100, A10
  • Intel PCIe: Data Center GPU Max 1100
  • View GPU Options
CPU-GPU Interconnect
  • PCIe 5.0 x16 Switch Dual-Root
GPU-GPU Interconnect
  • NVIDIA® NVLink® Bridge (optional), Intel® Xe Link Bridges
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC RDIMM
  • Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
Input / Output
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 8+4 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-418G2TS-R5K40P
Dimensions and Weight
Height
  • 7" (178 mm)
Width
  • 17.2" (437 mm)
Depth
  • 29" (737 mm)
Package
  • 26.57" (H) x 27" (W) x 41" (D)
Weight
  • Gross Weight: 100 lbs (45.3 kg)
  • Net Weight: 65.5 lbs (29.7 kg)
Available Color
  • Black Front & Silver Body
Front Panel
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED
Buttons
  • Power On/Off button
  • System Reset button
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 16 bays
    • 8 front hot-swap 2.5" NVMe drive bays
    • 8 front hot-swap 2.5" SATA drive bays
  • Option A: Total 24 bays
    • 8 front hot-swap 2.5" NVMe drive bays
    • 8 front hot-swap 2.5" NVMe* drive bays
    • 8 front hot-swap 2.5" SATA drive bays
  • (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 8 heavy duty fans with optimal fan speed control
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
