SuperServer SYS-530MT-H12TRF

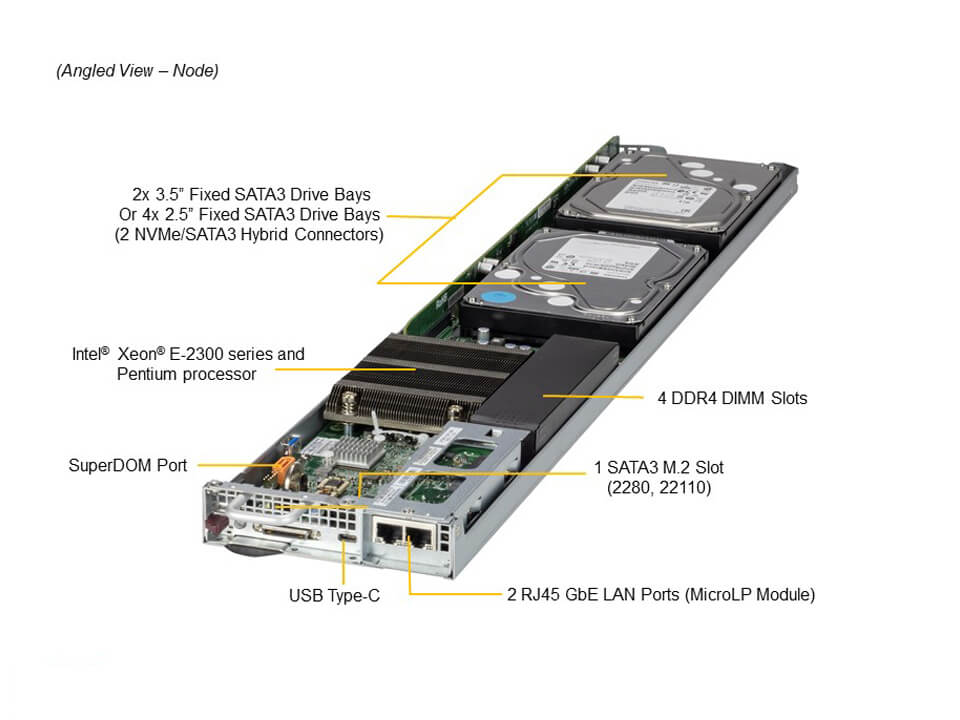

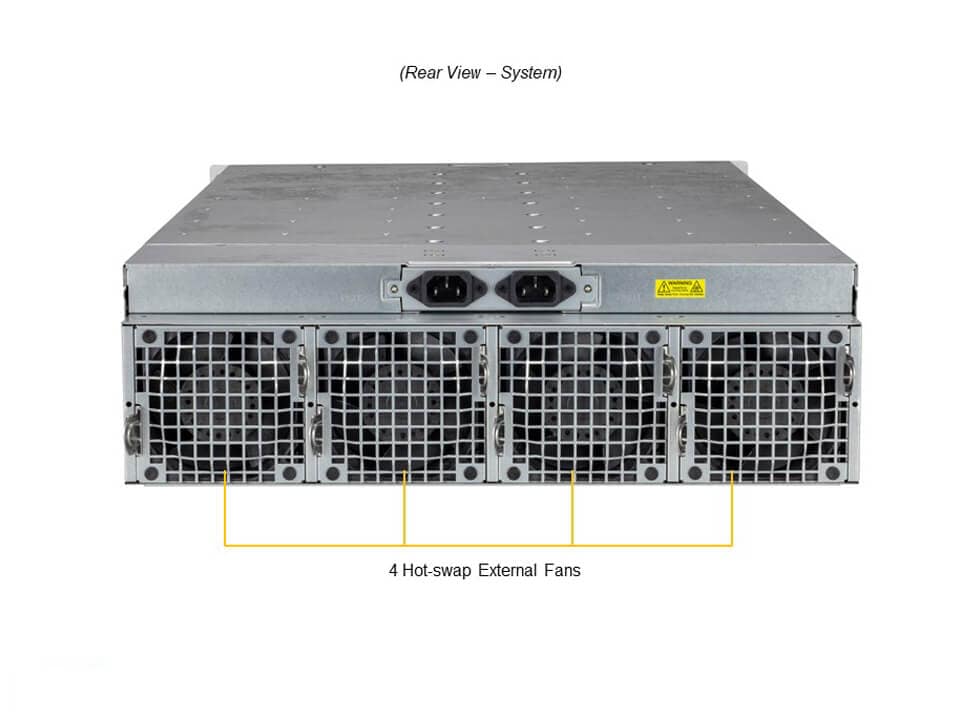

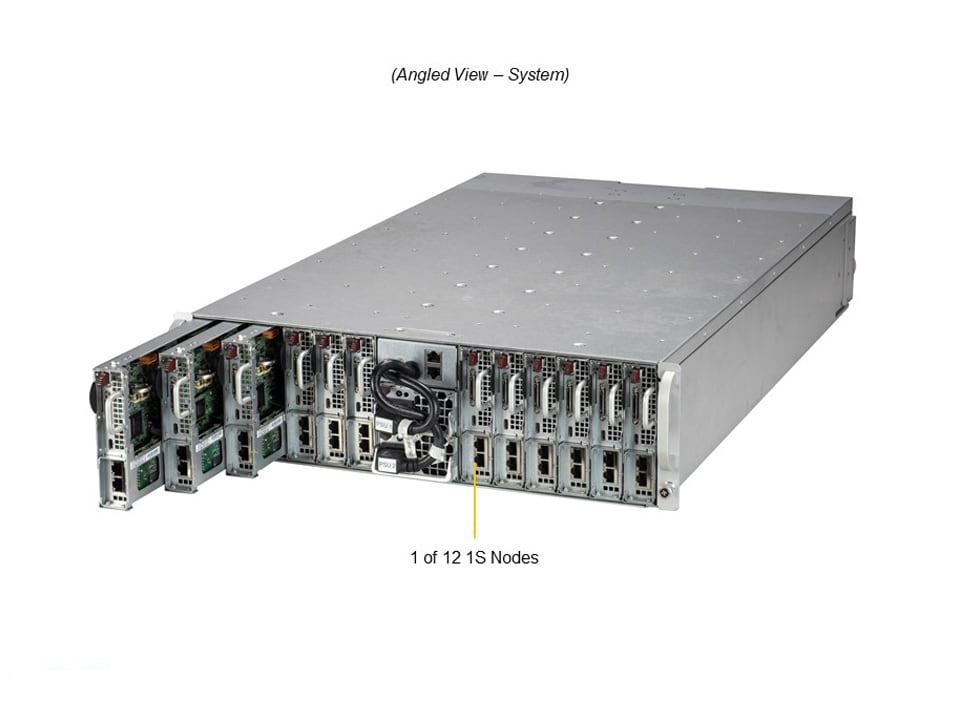

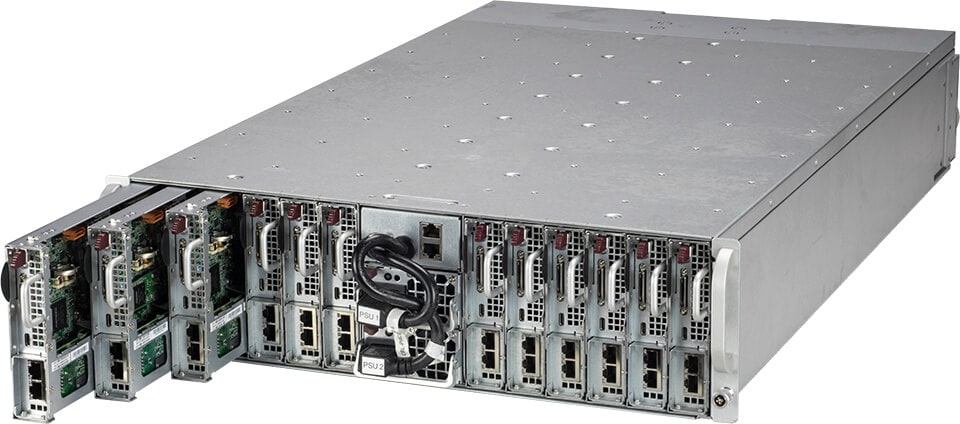

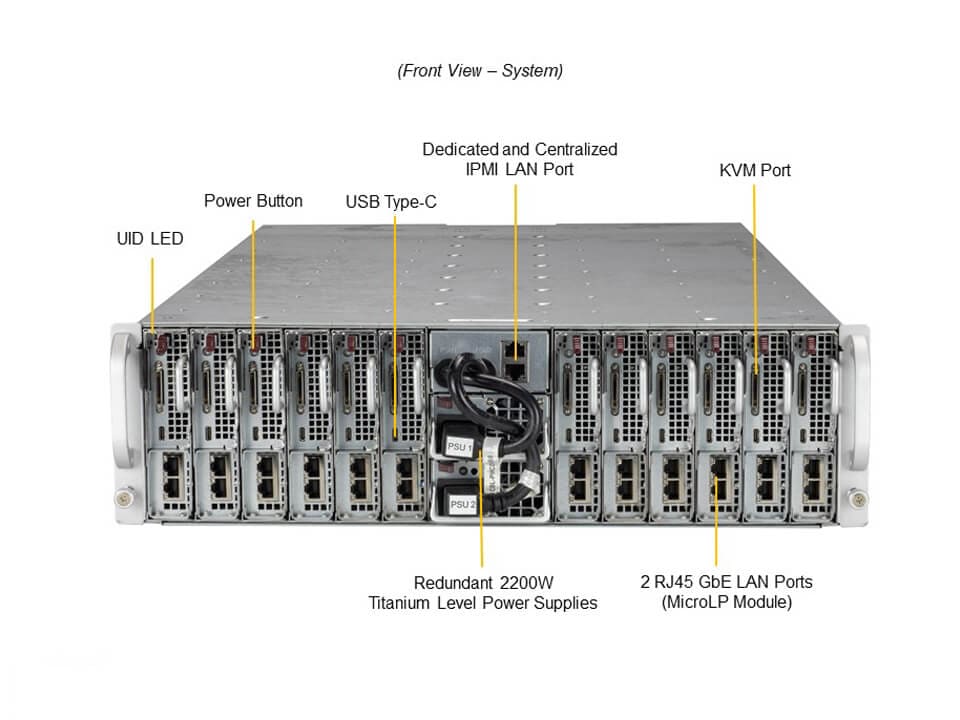

SYS-530MT-H12TRF Main SYS-530MT-H12TRF Angle SYS-530MT-H12TRF Node SYS-530MT-H12TRF Front SYS-530MT-H12TRF Rear
Integrated Board: X12STE-F
Learn more

Key Applications

  • Cloud Computing
  • Web Hosting, VM
  • Online Game Server Hosting
  • IT Infrastructure
  • Web Cache
  • Social Networking

Key Features

  1. 12 set of Intel® Xeon® E-2300 series and Pentium processor
  2. Intel® C256
  3. 12 set of Up to 128GB ECC/non ECC Very Low Profile UDIMM; DDR4 3200MHz, in 4 DIMM sockets
  4. 12 set of PCIe 4.0 x8 Micro-LP slots (MicroLP upgradable)
  5. 12 set of Dual 1GbE LAN Ports
  6. 12 set of 2x internal 3.5" SATA3 (6Gbps) (or) 4x 2.5" SATA3 drives with 2x Hybrid NVMe U.2; Intel® RSTe RAID
  7. 4x 8cm Heavy duty fans with optimal cooling zone
  8. 2200W Redundant Titanium Level high-efficiency power supplies with PMBus
...
...
SYS-530MT-H12TRF
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-530MT-H12TRF
Motherboard
Super X12STE-F
Processor (per Node)
CPU
  • Single Socket H5 (LGA-1200)
  • Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors
Core Count
  • Up to 8C/16T; Up to 16MB Cache
Note
  • Supports 80W - 95W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
  • View Memory Options
On-Board Devices (per Node)
SATA
  • SATA (6Gbps) via Intel® C256; RAID 0/1/5/10 support
Chipset
  • Intel® C256
Network Connectivity
Input / Output (per Node)
LAN
  • 2 RJ45 1 GbE LAN ports (Intel® I350)
USB
  • 2 USB 2.0 ports
  • 1 Type-C port(front)
Video
  • 1 port
DOM
  • 1 SATA DOM (Disk on Module) port
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI 6.0 Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
Temperature
  • Monitoring for CPU and chassis environment
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN
  • Fan speed control, Dual Cooling Zone
Chassis
Form Factor
  • 3U Rackmount
Model
  • CSE-939HN-R2K20BP
Dimensions and Weight
Height
  • 5.21" (132.5 mm)
Width
  • 17.5" (444.5 mm)
Depth
  • 29.5" (749.3 mm)
Package
  • 16.1" (H) x 28.35" (W) x 42.36" (D)
Weight
  • Gross Weight: 125 lbs (56.7 kg)
  • Net Weight: 95 lbs (43.09 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off
LED
  • UID LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
Drive Bays / Storage (per Node)
Drive Bays Configuration
M.2
System Cooling
Fans
  • 4 Heavy Duty 9cm Fan(s)
Power Supply
2x 2200W
2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)76 x 40 x 336 mm
AC Input1200W: 100-127Vac
1200W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
1980W: 220-230Vac / 50-60Hz
2200W: 220-240Vac
2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
2090W: 230-240Vac / 50-60Hz
2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12VMax: 100A / Min: 0A (100Vdc-127Vdc)
Max: 100A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 183.33A / Min: 0A (220Vdc-240Vdc)
Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
Max: 174.17A / Min: 0A (230Vac-240Vac)
Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
5V SBMax: 1A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12STE-F

CSE-939HN-R2K20BP 		12

1 		Super X12STE-F Motherboard

3U Chassis
Add-on Card / Module AOM-BPN-MC12SN-P 12 2x NVMe U.2 + 2 NVMe SATA connectors BPNforMicroCloud12n
AOM-CGP-I2M-P 12 MicroLP 2-port GbE RJ45, Intel i350 for 12 node MicroCloud
AOM-LAN-MC12S-P 1 AOM-LAN-MC12S-P
AOM-PDB-MC12S-P 12 AOM-PDB-MC12S-O-P
AOM-GEM-001-P 1 AOM-GEM-001-O-P
Backplane BPN-SAS-939HS 1 (EOL)CSE939HS MicroCloud (12 nodes) Hot-Swap Backplane
Cable CBL-0218L 1 11.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB
CBL-PWCD-0578-1 OR 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
CBL-PWCD-0578-IS PWCD,US,IEC60320 C14 TO C13,910mm,14AWG,15A,250V,Black, RoHS
CBL-0355L 2 RJ45 C5E 2ft Green With Cover
CBL-CDAT-0662 1 8 Pin to 8 Pin Round SGPIO Cable, 61.5cm, 28AWG, Pinout 1-1
CBL-PWCD-0859 1 PWCD,US,IEC60320 C14 TO RA C13 w/SR for 939HS PSU1,3FT,14AWG
CBL-PWCD-0860 1 PWCD,US,IEC60320 C14 TO RA C13 w/SR for 939HS PSU2,3FT,14AWG
Air Shroud MCP-310-93904-0N 12 Mylar air shroud for VLP 4 DIMM (short gap, quick install)
Software SFT-OOB-LIC 12 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0047PSR OR 12 LP CPU Heat Sink for 12-node Micro Cloud Series Servers
SNK-P0047PSRK Low Profile CPU Heat Sink for MBI-6119G-C2 Micro Blade Server
*Power Supply PWS-2K20F-1R 2 1U 2200W Redundant, Titanium,76(W) X 40(H) X 360(L) mm, flow in air
*Power Distributor PDB-PT939-DSG 2 Adapter Board for SC939 special gold finger directly plug to BP.
*Fan FAN-0195L4 4 92x92x76 mm Counter-rotating Cooling Fan for 3U12N Microclou
*Rail Set MCP-290-41803-0N 1 Fat twin F418 / F424 Static Rail set support 28.5-33.7 inch depth rail,RoHS/REACH,PBF
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Add-on Card / Module AOM-BPN-MC12S4-P 12 4x NVMe U.2 connectors BPN for MicroCloud 12 node system,HF,RoHS
Bracket MCP-290-93903-0N-PACK 1 SC939HN bracket with FAN
MCP-240-93912-0N 12 Bracket for 4NVMe MB tray with NVMe standoff
Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
Network Card(s) AOM-C25G-m1SM - MicroLP, 1x 25GbE SFP28, PCIe 3.0 x8, Mellanox®
AOM-CTGS-i2TM - MicroLP, 2x 10GbE Base-T, PCIe 3.0 x4, Intel® X550
AOM-CTG-i1SM - MicroLP, 1 x 10GbE SFP+, PCIe 2.0 x8, Intel® 82599EN, ver 1.21 only
AOM-CIBF-m1M - MicroLP, 1 x 40GbE QSFP, PCIe 3.0 x8, Mellanox® ConnectX-3 FDR controller
AOM-CTG-i2SM-12 - MicroLP 2x 10GbE SFP+, PCIe 3.0 x8, Intel 82599ES
AOM-C25G-i2SM-12 - MicroLP module 2-Port 25G SFP28, Intel E810-XXVAM2, for MicroCloud 12node
AOM-CTG-B2TM - MicroLP 2-port 10G RJ45, Broadcom BCM57416. RoHS
SATA DOM MEM-IDSAHM3A-016G - SATA3 DOM SH 3ME 16GB MLC 1ch Horizontal
MEM-IDSAHM3A-032G - SATA3 ServerDOM MH 3ME 32GB MLC w/ Pin8 VCC Horizontal
MEM-IDSAHM3A-064G - SATA3 ServerDOM MH 3ME 64GB MLC w/ Pin8 VCC Horizontal
MEM-IDSAHM3A-128G - SATA3 DOM SH 3ME3 V2 128GB MLC w/ Pin8 VCC Horizontal
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
