SuperServer SYS-531MC-H8TNR

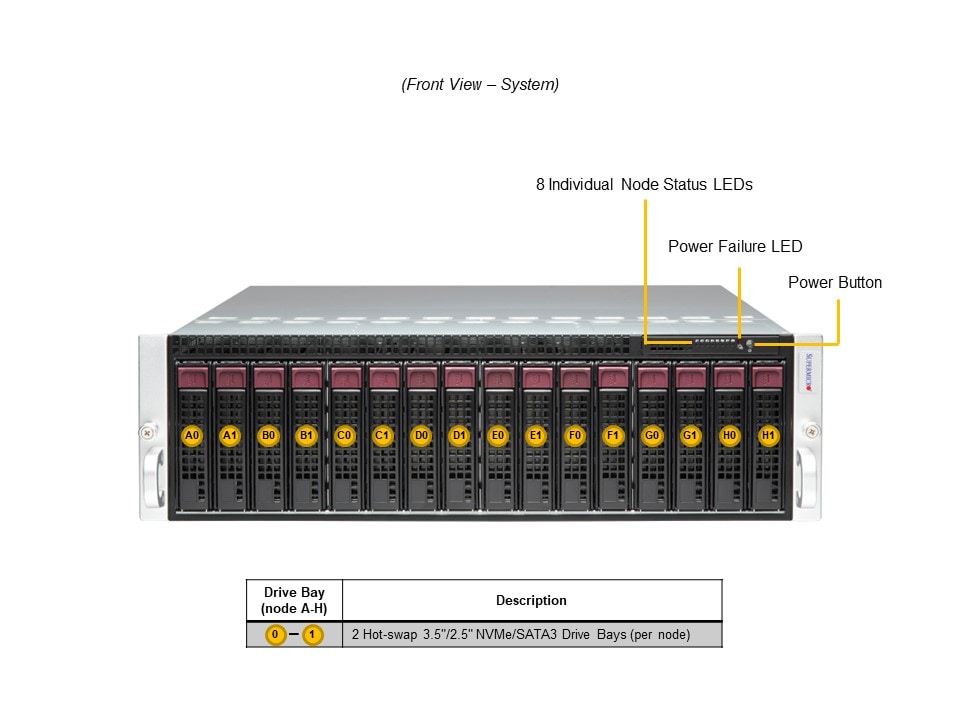

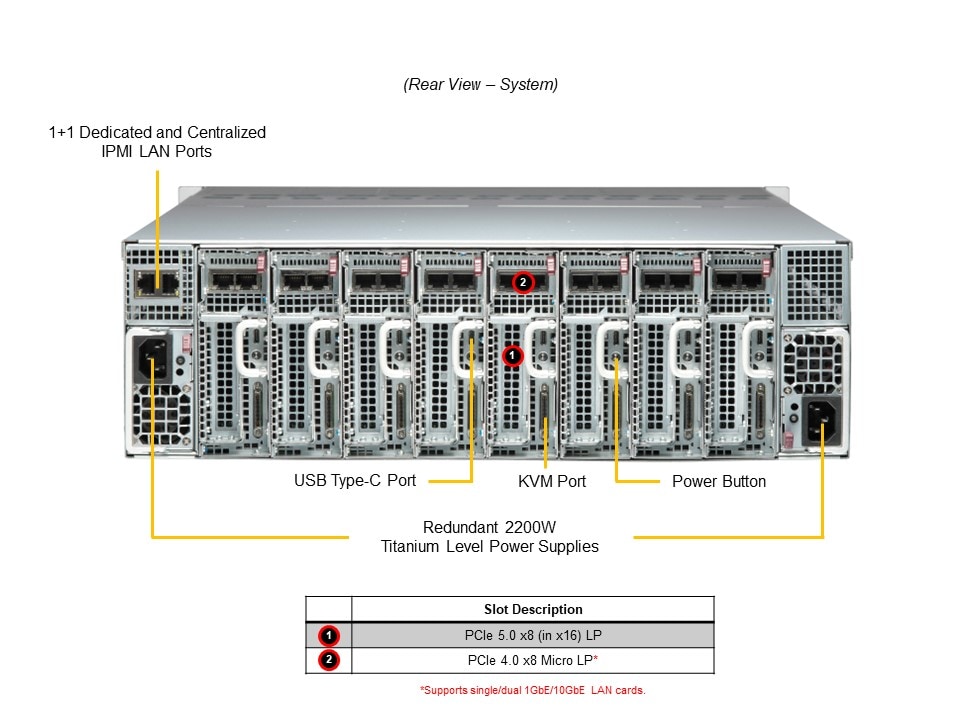

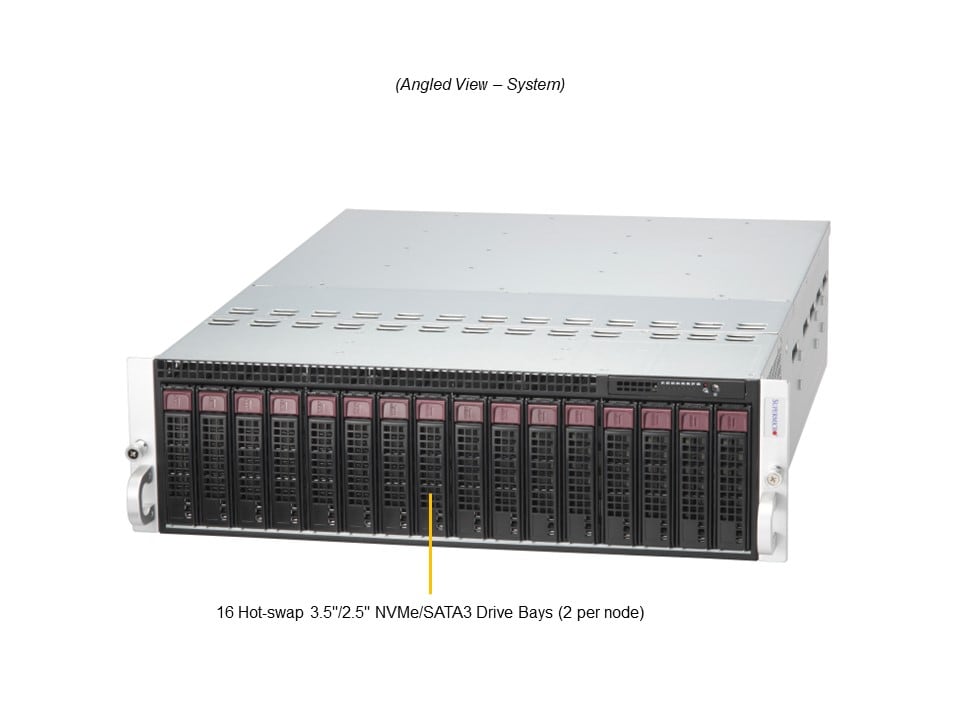

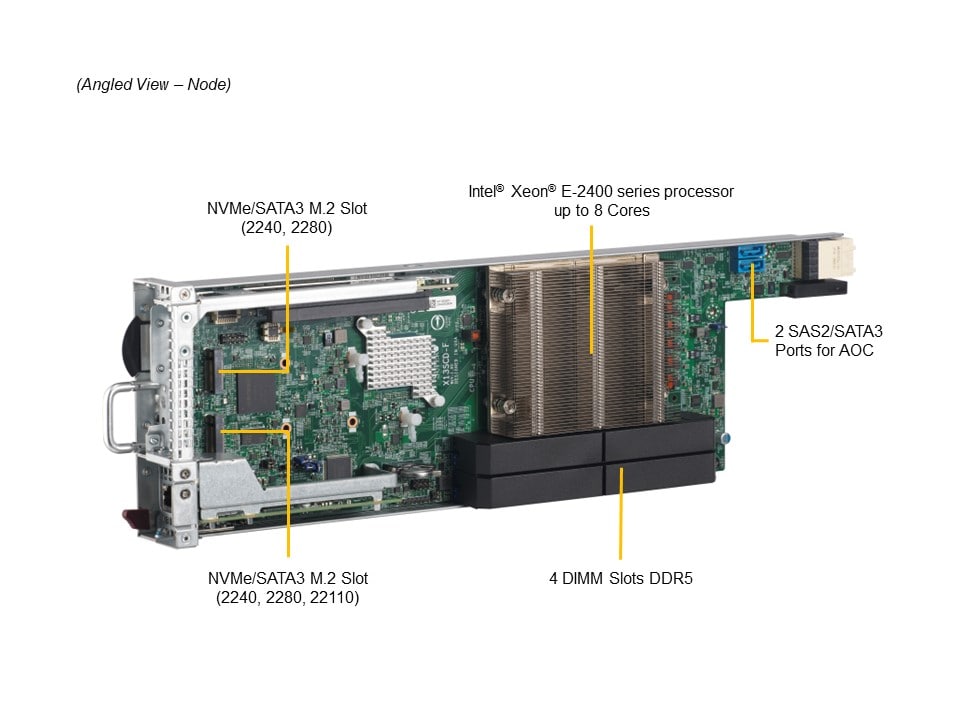

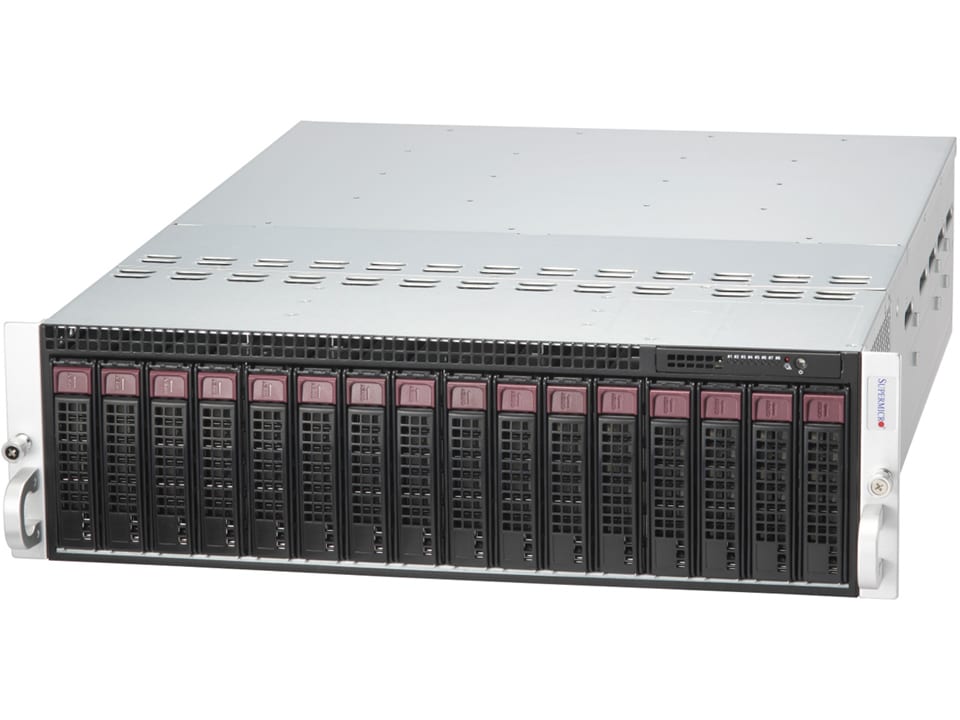

SYS-531MC-H8TNR Main SYS-531MC-H8TNR Angle SYS-531MC-H8TNR Node SYS-531MC-H8TNR Front SYS-531MC-H8TNR Rear
Integrated Board: X13SCD-F
Learn more

Key Applications

  • Cloud Computing
  • Web Hosting, VM
  • Online Game Server Hosting
  • IT Infrastructure
  • Web Cache
  • Social Networking

Key Features

  1. Intel® Xeon® E-2400/Pentium®* Processor Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP *Pentium® G7400 and G7400T
  2. Intel® C266
  3. 8 set of Up to 128GB ECC UDIMM; DDR5 4400MHz, in 4 DIMM sockets
  4. 8 set of PCIe 5.0 x8 (in x16 slot) low profile slot and 8 set of PCIe 4.0 x8 Micro-LP slots (MicroLP upgradable)
  5. 8 set of 2x Front Hot-swappable 3.5" SATA3 HDD or Hybrid 2x 2.5" SAS/SATA3/NVMe U.2 drives w/ option kits
  6. 2200W Redundant Titanium Level high-efficiency power supplies
...
...
SYS-531MC-H8TNR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-531MC-H8TNR
Motherboard
Super X13SCD-F
Processor (per Node)
CPU
  • Single processor(s)
  • Intel® Xeon® E-2400/Pentium® G7400 and G7400T Processors
Note
  • Supports up to 95W TDP CPUs (Air Cooled)
GPU (per Node)
Max GPU Count
  • Up to 1 single-width GPU
System Memory (per Node)
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM
  • View Memory Options
On-Board Devices (per Node)
SATA
  • SATA (6Gbps) ; RAID 0/1 support
Chipset
  • Intel® C266
Network Connectivity
Input / Output (per Node)
USB
  • 1 Type-C port(front)
  • 2 USB 2.0 Type-A ports
Video
  • 1 port
TPM
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 256MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI 6.0 Power Management
PC Health Monitoring
Temperature
  • Monitoring for CPU and chassis environment
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN
  • Fan speed control, Dual Cooling Zone
Chassis
Form Factor
  • 3U Rackmount
Model
  • CSE-938NH-R2K20BP2
Dimensions and Weight
Height
  • 5.21" (132 mm)
Width
  • 17.26" (438 mm)
Depth
  • 23.2" (589 mm)
Package
  • 11.65" (H) x 26.26" (W) x 34" (D)
Weight
  • Gross Weight: 88 lbs (39.92 kg)
  • Net Weight: 62.2 lbs (28.21 kg)
Available Color
  • N/A
Front Panel
LED
  • 8 Individual Node Status Indicators
  • Power Failure
Buttons
  • Power On/Off
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 5.0 x8 (in x16) LP slot
    • 1 PCIe 4.0 x8 (in x8) MicroLP slot
  • View AOC Options
Drive Bays / Storage (per Node)
Drive Bays Configuration
M.2
System Cooling
Fans
  • 4 Heavy Duty 8cm Fan(s)
Power Supply
2x 2200W
2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)76 x 40 x 336 mm
Total Output Power(for CCC only)
(for UL/cUL use only)
AC Input1200W: 100-127Vac
1200W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
1980W: 220-230Vac / 50-60Hz
2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
2200W: 230-240Vac
2090W: 230-240Vac / 50-60Hz
2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12VMax: 100A / Min: 0A (100Vdc-127Vdc)
Max: 100A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
Max: 183.3A / Min: 0A (220Vac-240Vac)
Max: 174.17A / Min: 0A (230Vac-240Vac)
Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
Max: 183.33A / Min: 0A (230Vdc-240Vdc)
5V SBMax: 1A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 8% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13SCD-F

CSE-938NH-R2K20BP2 		8

1 		Super X13SCD-F Motherboard

3U Chassis
Add-on Card / Module AOM-BPN-938NH-P 1 AOM-BPN-938NH, Backplane module for 8-node Microcloud system
AOM-LAN-MC8-P 1 AOM-LAN-MC8, LAN front panel module for 8-node Microcloud sy
AOM-PDB-PT938-LSG-P 1 AOM-PDB-PT938-LSG, PDB module for 8-node Microcloud system,H
AOM-PDB-PT938-RSG-P 1 AOM-PDB-PT938-RSG, PDB module for 8-node Microcloud system,H
Cable CBL-0218L 1 11.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB
CBL-PWCD-0578-1 OR 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
CBL-PWCD-0578-IS PWCD,US,IEC60320 C14 TO C13,910mm,14AWG,15A,250V,Black, RoHS
CBL-0355L 2 RJ45 C5E 2ft Green With Cover
CBL-0458L 1 20 cm 30 pin to 30 pin Front control cable with tube. 28AWG
CBL-CDAT-0662 1 8 Pin to 8 Pin Round SGPIO Cable, 61.5cm, 28AWG, Pinout 1-1
Riser Card RSC-S-6G5 8 1U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H
Software SFT-OOB-LIC 8 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P1041V 8 1U Prop. Passive CPU HS for 6U 10-blade SuperBlade Series
Fan FAN-0213L4 OR 4 80x80x38 mm, 14.4K RPM Cooling Fan for 3U8N Microcloud Serie
FAN-0194L4 80x80x38 mm, 13.5K RPM Cooling Fan for 3U8N Microcloud Serie
*Power Supply PWS-2K20A-1R 2 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
*Drive Tray(s) MCP-220-00094-0B 16 Black gen 6.5 hot-swap 3.5 inch HDD Tray
*Control Board MCP-280-93801-0B 1 Control panel module
*Rail Set MCP-290-00057-0N 1 Rail set, quick/quick, default for 4U 17.2" W
*Air Shroud MCP-310-93805-0B 16 Mylar air shroud for 2-DIMMs (quick install on DIMM latch)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Cable CBL-SAST-1230T4S1-100 1 For AOC-S3908L-H8iR-16DD
Global Services & Support OSNBD3/2/1 - 3/2/1-year onsite NBD service
OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
GPU GPU-IATS-M75 1 Intel GPU Arctic Sound ATS-M75 PCIE Gen4 x16, RoHS
GPU-NVA2-NC 1 NVIDIA Ampere A2 16GB GDDR6 PCIe 4.0 x8 -- w/o CEC
GPU-NVL4 1 NVIDIA Ada L4 24GB GDDR6 PCIe Gen 4th-- 70w
GPU-NVQT1000 1 NVIDIA PNY Quadro T1000 4GB GDDR6 PCIe 3.0-ActiveCooling
GPU-NVTT4 1 NVIDIA Tesla T4 16GB GDDR6 PCIe 3.0, Passive Cooling
GPU Air Shroud MCP-310-93807-0B 1 Mylar air shroud for GPU on MicroCloud 938NH, RoHS
Network Card(s) - Micro LP AOC-CGP-I2 1 2-ports GbE RJ45 Intel i350, Gen2 x4, MicroLP
AOC-CTG-b2T-O 1 2-ports MicroLP 10G RJ45, based on Broadcom BCM57416
AOC-CTG-I2S 1 2-ports 10GbE SFP+ and 2-ports USB 2.0 Intel 82599ES, Gen2 x8, MicroLP
AOC-CTGS-i2T-O 1 2-ports 10GbE RJ45 Intel X550, Gen3 x4, MicroLP
Network Card(s) - PCIe AOC-S100GC-i2C-O 1 2-ports 100GbE with QSFP28 based on Intel E810-CAM2, RoHS
AOC-S25GC-i2S-O 1 2-ports 25Gb SFP28 Intel E810-XXVAM2 Gen 4.0
Software SFT-DCMS-Single - DataCenter Management Package (per node license)
Storage Controller Card(s) AOC-S3908L-H8IR-16DD-O 1 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
AOC-SLG4-2H8M2-O • 1 2x Hybrid Gen 4 NVMe/SATA M.2 RAID 0/1 Carrier, Standard LP, RoHS
