SuperServer SYS-620C-TN12R (Complete System Only)

2U CloudDC with 12 3.5" NVMe/SAS/SATA bays and up to 4 PCIe 4.0 x16 slots

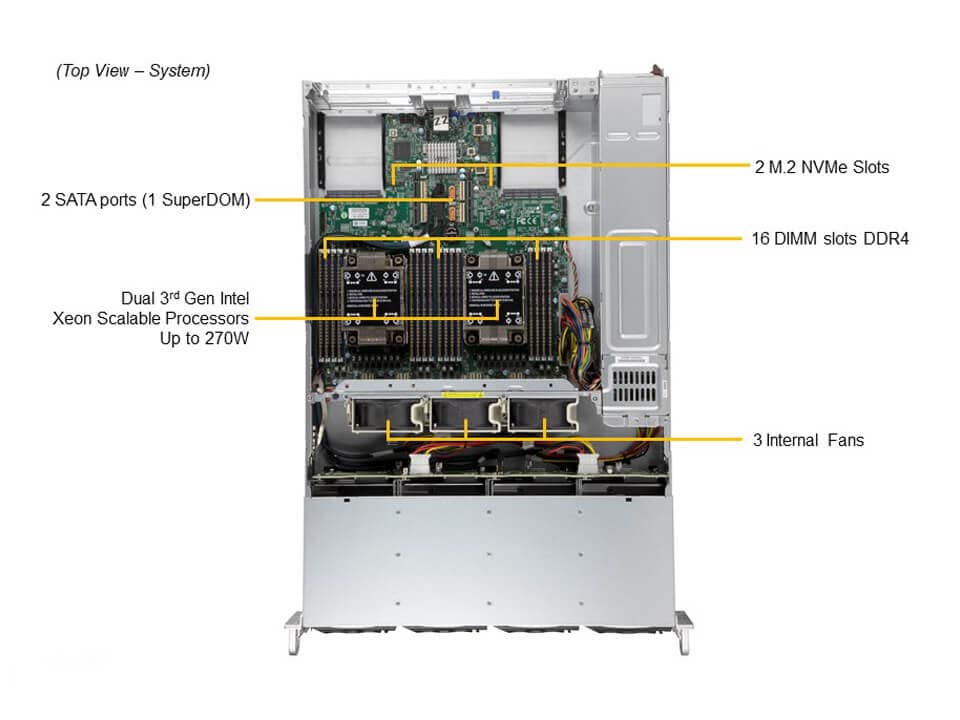

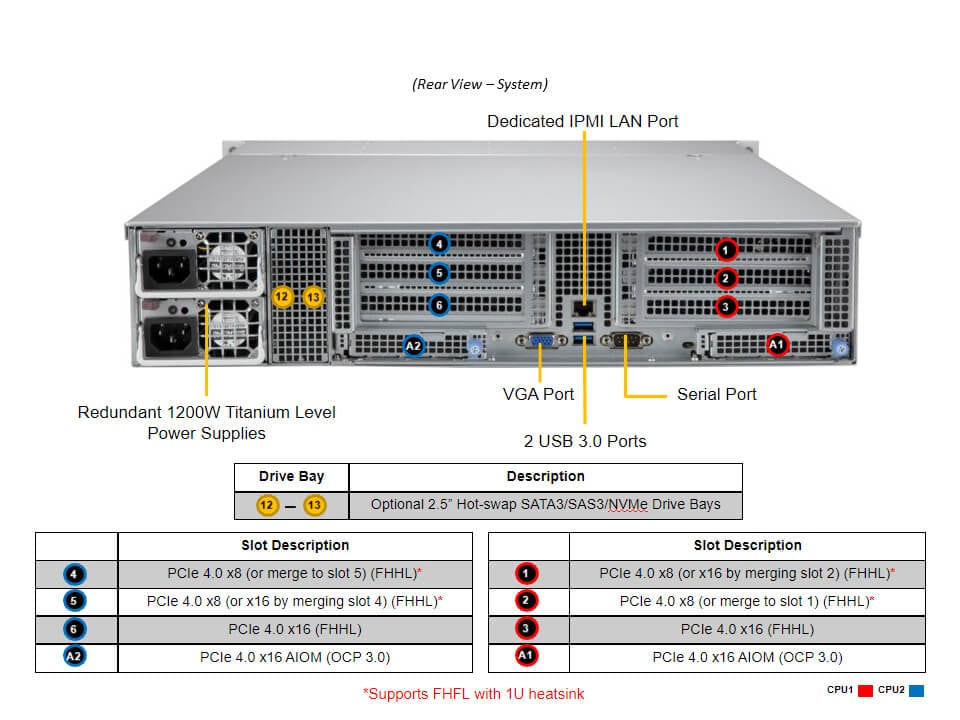

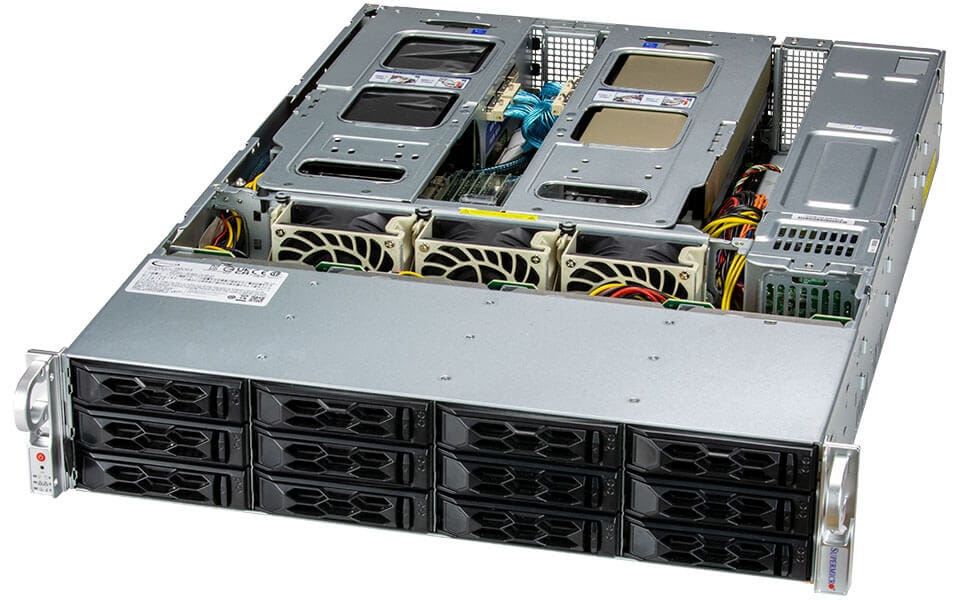

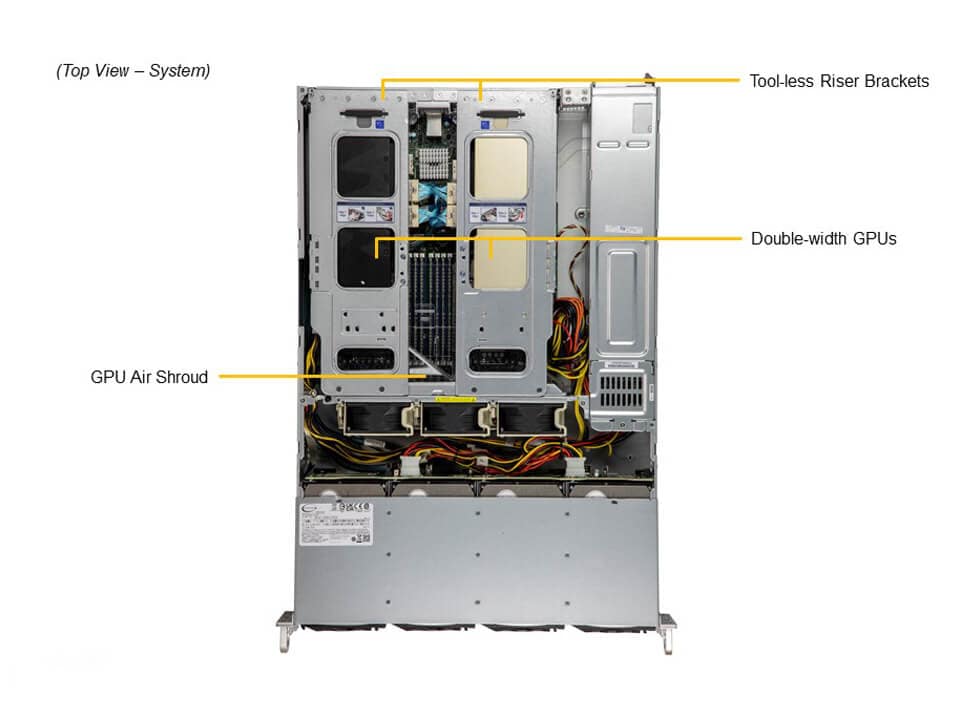

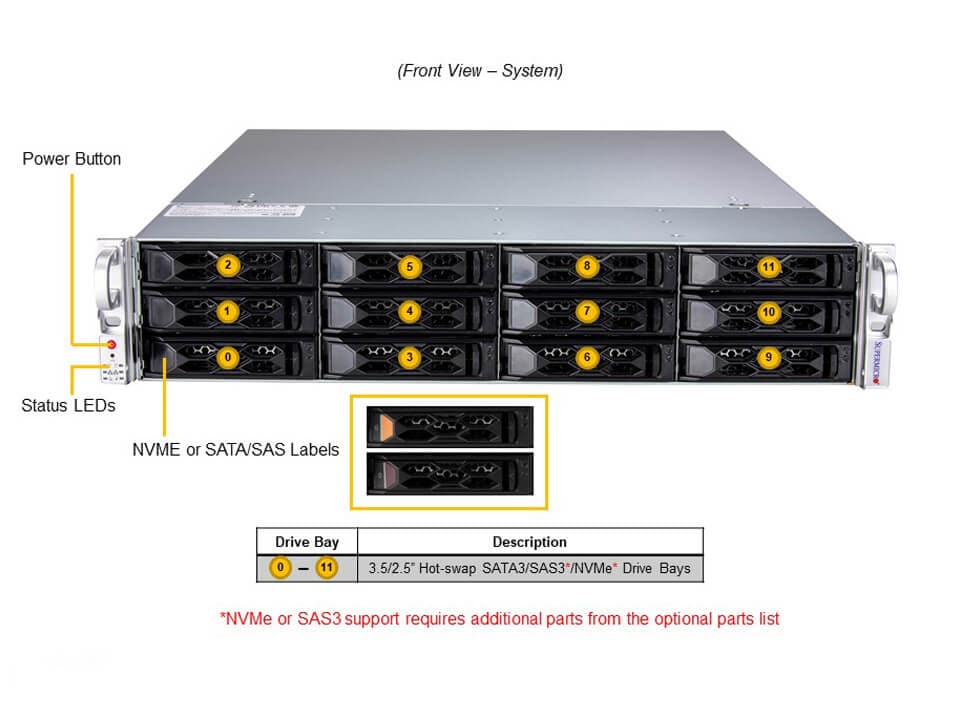

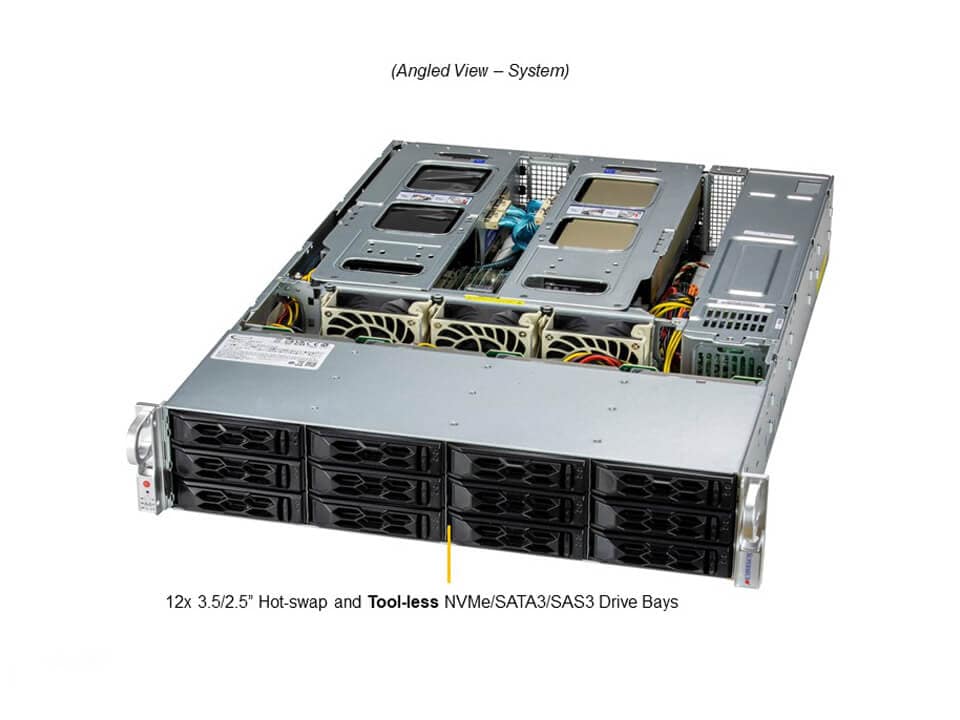

SYS-620C-TN12R Main SYS-620C-TN12R Angle SYS-620C-TN12R Top SYS-620C-TN12R Top2 SYS-620C-TN12R Front SYS-620C-TN12R Rear
Integrated Board: X12DDW-A6
Learn more

Key Applications

  • Web Server, Firewall Application
  • Data Center Optimized, Value IaaS
  • Cloud Computing, Compact Server
  • DNS & Gateway Servers, Firewall Application
  • CDN, Edge Nodes

Key Features

  1. Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  2. Intel® C621A Chipset
  3. 16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® Intel® DCPMM
  4. 4 PCIe 4.0 x8 FHHL (optional: combine into 2 PCIe 4.0 x16);
    2 PCIe 4.0 x16 FHHL;
    2 PCIe 3.0 x2 NVMe M.2
  5. Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN
  6. 12x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  7. 3 heavy duty fans with optimal fan speed control, 1 air shroud
  8. 1200W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies
  9. 1 VGA, 1 COM, 2 USB 3.0 (rear)
...
...
SYS-620C-TN12R
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-620C-TN12R
Motherboard
Super X12DDW-A6
Processor
CPU
  • Dual Socket P4 (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width or 6 single-width GPUs
Supported GPU
  • NVIDIA PCIe: RTX A6000, RTX A5000, RTX A4500, A30, A16, A2, A100
  • Intel PCIe: Intel Data Center GPU Flex 170
  • View GPU Options
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
Serial
  • 1 COM port(Rear)
DOM
  • 1 SuperDOM (Disk on Module) port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 8 Phase-switching voltage regulator
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-LA26TS-R1K23AWP1
Dimensions and Weight
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.5" (648 mm)
Package
  • 11.4" (H) x 26.7" (W) x 34.5" (D)
Weight
  • Gross Weight: 59 lbs (26.76 kg)
  • Net Weight: 33 lbs (15 kg)
Available Color
  • Black front & sliver body
Front Panel
LED
  • Drive activity
  • Network activity
  • Power status
  • Universal Information (UID)
Buttons
  • Power On/Off
  • Universal Information (UID)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 4 PCIe 4.0 x8 (in x16) FHFL double-width slots
    • 2 PCIe 4.0 x16 FHHL slots
    • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
  • Option A
    • 2 PCIe 4.0 x16 FHFL double-width slots
    • 2 PCIe 4.0 x16 FHHL slots
    • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
  • Option B
    • 4 PCIe 4.0 x16 FHFL double-width slots
    • 2 PCIe 4.0 x16 FHHL slots
    • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bays
    • 12 front hot-swap 3.5" NVMe*/SAS*/SATA drive bays
  • Option A: Total 12 bays
    • 12 front hot-swap 2.5" NVMe*/SAS*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
  • 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default); VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • 3x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
2x 1200W
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)76 x 40 x 336 mm
AC Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
3108 CacheVault BTR-TFM8G-LSICVM02 1 CacheVault for Broadcom 3108 (requires a mount)
3108 RAID Card CBL-SAST-1260-100 1 MiniSAS HD x8 (LE) to 2x Slimline x4 (STR) 60CM
AOC-S3108L-H8IR-16DD 1 Standard LP 8 internal ports (12Gb/s) Gen-3 16HDD RAID 0, 1, 5, 6, 10, 50, 60
3808 HBA Card AOC-S3808L-L8IT 1 Standard LP 8 internal ports (12Gb/s) Gen-4 16HDD HBA
CBL-SAST-1276F-100 • 1 Slimline x8 (LE) to 2x Slimline x4 (STR) 76/76CM, alternative: CBL-SAST-1264F-100
3816 HBA Card AOC-S3816L-L16IT 1 Standard LP 16 internal ports (12Gb/s) Gen-4 122HDD HBA
CBL-SAST-1265F-100 • 1 Slimline x8 (STR) to Slimline x4 (STR) 64CM
CBL-SAST-1276F-100 • 1 Slimline x8 (LE) to 2x Slimline x4 (STR) 76/76CM, alternative: CBL-SAST-1264F-100
3908 RAID Card AOC-S3908L-H8IR-16DD 1 Standard LP 8 internal ports (12Gb/s) Gen-4 122HDD RAID 0, 1, 5, 6, 10, 50, 60
CBL-SAST-1276F-100 • 1 Slimline x8 (LE) to 2x Slimline x4 (STR) 76/76CM, alternative: CBL-SAST-1264F-100
3908/3916 CacheVault BTR-CVPM05 • 1 CacheVault for Broadcom 3908/3916 (requires a mount)
3916 RAID Card AOC-S3916L-H16IR-32DD 1 Standard LP 16 internal ports (12Gb/s) Gen-4, 32HDD RAID 0, 1, 5, 6, 10, 50, 60
CBL-SAST-1265F-100 • 1 Slimline x8 (STR) to Slimline x4 (STR) 64CM
CBL-SAST-1276F-100 • 1 Slimline x8 (LE) to 2x Slimline x4 (STR) 76/76CM, alternative: CBL-SAST-1264F-100
AIOM Network Card(s) AOC-A25G-i4SM - OCP 3.0 AIOM 4x 25GbE SFP28 PCIe x8 Intel® E810-CAM1
AOC-AG-i2M - OCP 3.0 AIOM 2x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM2
AOC-A25G-m2SM - OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Mellanox® CX-6 LX
AOC-ATG-i2T2SM - OCP 3.0 AIOM 4x 10GbE RJ45 & SFP+ PCIe x8 Intel® X710-TM4
AOC-A25G-i2SM - OCP 3.0 AIOM 4x 25GbE SFP28 PCIe x8 Intel® E810-CAM1
AOC-A25G-b2SM - OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Intel® E810-XXVAM2
AOC-A100G-b2CM - OCP 3.0 AIOM 2x 100GbE QSFP28 PCIe 4.0 x16 Broadcom® BCM57508
AOC-AG-i4M - OCP 3.0 AIOM 4x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM4
AOC-AG-i4SM - OCP 3.0 AIOM 4x 1GbE SFP PCIe 2.1 x4 Intel® i350-AM4
AOC-AH25G-m2S2TM - OCP 3.0 AIOM 2x 25GbE SFP28 & 2x 10GbE RJ45 PCIe x8/x4 Mellanox® CX4 Lx EN & Intel® X550-AT2
AOC-ATG-b2TM - OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Broadcom® BCM57416
AOC-ATG-i2SM - OCP 3.0 AIOM 2x 10GbE SFP+ PCIe 3.0 x8 Intel® X710-BM2
AOC-ATG-i2TM - OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Intel® X550-AT2
AOC-ATG-i4SM - OCP 3.0 AIOM 4x 10GbE SFP+ PCIe 3.0 x8 Intel® XL710-BM1
AOC-ATGC-i2TM - OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Intel® X710-AT2
Cable Management Arm MCP-290-00073-0N • 1 Supermicro Cable Management Arm for 2U, 3U and 4U chassis
MCP-120-82601-0N 1 Cable Arm Adapter for 2U
CacheVault Mount MCP-240-00203-0N • 1 CacheVault mounting bracket for PCIe slot
MCP-240-00127-0N 1 CacheVault mounting tray for 2.5" drive bay
MCP-240-21747-0N 1 CacheVault mounting card for AIOM slot
Dummy Cover CSE-PT0130L 1 Power Supply Dummy Cover
GPU Power Cable CBL-PWEX-1040 2 PWYCB GPU 2x4M/CPU to two (2x3F+2x1F)/PCIe P4.2 5CM
GPU RAID SFT-GRD-SRBUN1010SW 1 GRAID RAID License for A2000 GPU 32 NVMe
GPU-NVQRTX-A2000 • 1 NVIDIA PNY Quadro RTX A2000 6 GB GDDR6 PCIe 4.0
GPU Support (FL) SNK-P0077V 2 X12 ICX/CPX CPU Heatsink VC Base
MCP-310-82613-0N 1 Plastic Air Shroud for GPU
GPU Support (LP) SNK-P0078PC 2 2U Passive CPU Heat Sink w/ a Side Air Channel for X12 Generation Intel Whitley and Cedar Island Platforms
MCP-310-82614-0B 1 Dummy GPU
License SFT-SDDC-SINGLE 1 Supermicro Data Center Monitor License
SFT-DCMS-SINGLE • 1 Supermicro System Managment Software License
Low Power Fan FAN-0181L4 3 80x80x38 mm 9.4K RPM Chassis Middle Fan
Low Power Supply PWS-1K23A-1R • 1 1200W 100-240Vac, and DC240 input
M.2 Tray AOC-SLG3-2SM2 - Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 SATA Modules RAID 0,1
AOC-SLG4-2H8M2 - Low Profile PCIe x8 add-on card supports 2 PCIe 4.0 x4 M-Key M.2 NVMe/SATA Modules RAID 0,1
AOC-SLG3-2NM2 - Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 NVMe Modules RAID 0,1
AOC-SLG3-2M2 - Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 NVMe Modules
NC-SI Cable CBL-PWEX-1099-34 1 FLAT IDC 2X11F/P1.27 TO IDC 2X11F/P1.27 NCSI 0.5A 35CM
NVMe Cable CBL-KIT-620C-TN12R-12 • 1 Enables 12 NVMe drive bays. Kit includes:
4x CBL-SAST-1236LP-85 (bay # 2-5, 8-11)
2x CBL-SAST-1267FLP-85 (bay # 0-1,6-7)
Power Supply Upgrade PWS-1K68A-1R • 2 1600W Redundant Titanium Level Power Supply
Rear NVMe Drive Kit CBL-KIT-620C-TN12R-14 1 For 12+2 NVMe configuration. Kit includes:
3x CBL-SAST-1236LP-85 (bay # 4-7, 12-13)
4x CBL-SAST-1267FLP-85 (bay # 0-3, 8-11)
MCP-220-82620-0N 1 Rear Window Module for 2x 2.5" NVMe Drives PCIE Gen 4
CBL-SAST-1236LP-85 1 2 Rear NVMe only. Slimline x8 (STR) to 2x SlimlineLP x4 (STR) 40/40CM
CBL-PWEX-1276 1 1x4M/P5.08 to 2x2Micro-Fit Male 15cm
Rear SATA Drive Kit MCP-220-82616-0N 1 Rear Window Module for 2x 2.5" SATA/SAS Drives
Riser Upgrade CBL-SAST-1296LP-85 3 2*SlimSASLP x4 (STR) to SlimSASLP x8 (STR) 55CM 85ohm
CBL-SAST-1296LPA-85 1 2*SlimSASLP x4 (STR) to SlimSASLP x8 (STR) 55CM 85ohm LNRV
RSC-D2-666G4 1 2U LHS DCO Riser card with three PCIe 4.0x16slots
RSC-D2R-666G4 1 2U RHS DCO Riser card with three PCIe 4.0 x16slots
TPM AOM-TPM-9670V-S-FIPS 1 SPI capable TPM 2.0 with Infineon 9670 controller w/ FIPS vertical form factor
AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller vertical form factor
AOM-TPM-9672V-FIPS 1 SPI capable TPM 2.0 with Infineon 9672 controller w/ FIPS vertical form factor
AOM-TPM-9672V 1 SPI capable TPM 2.0 with Infineon 9672 controller vertical form factor
VROC HW Key AOC-VROCSTNMOD 1 Intel VROC Standard RAID 0, 1, 10
AOC-VROCPREMOD 1 Intel VROC Premium RAID 0, 1, 5, 10
