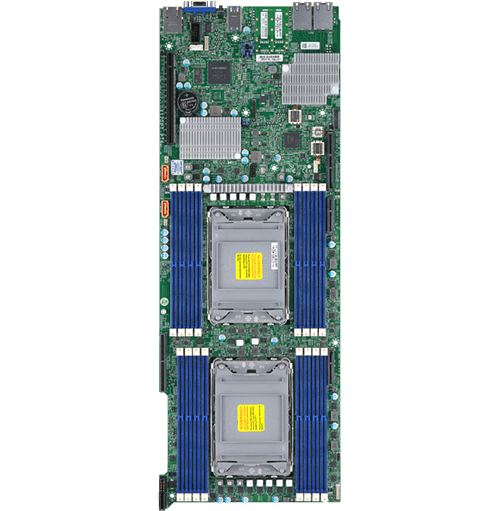

X12DPT-PT6

X12DPT-PT6

Key Features


  1. 3rd Gen Intel® Xeon® Scalable processors
    Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, 2 UPI up to 11.2 GT/s
  2. Intel® C621A
  3. Up to 4TB RDIMM, DDR4-3200MHz; Up to 4TB LRDIMM, DDR4-3200MHz
    Up to 4TB Intel® Optane™ Persistent Memory, DDR4-3200MHz (OC), in 16 DIMM slots
  4. 1 PCIe 4.0 x16 Left Riser Slot,
    1 PCIe 4.0 x16 Right Riser Slot,
    1 PCIe 4.0 x8 Right Riser Slot

    1 PCIe 4.0 x8 Proprietary Storage adapter Slot
  5. Intel® C621A controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  6. Dual LAN with 10Gbase-T
  7. 1 VGA port
...
...

Optimized Servers


SYS-220TP-HTTR SYS-620TP-HTTR SYS-120TP-DTTR SYS-220TP-HC8TR SYS-220TP-HC9TR SYS-620TP-HC8TR SYS-620TP-HC9TR SYS-120TP-DC8TR SYS-120TP-DC9TR
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X12DPT-PT6
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 6.8" x 18.86" (17.27cm x 47.9cm)
Processor
CPU
  • 3rd Gen Intel® Xeon® Scalable processors
  • Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, Dual UPI up to 11.2 GT/s
System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MT/s
  • Up to 4TB ECC LRDIMM, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/s
Memory Type
  • ECC DDR4 LRDIMM, RDIMM
DIMM Sizes
  • 32GB, 64GB, 128GB, 256GB
  • LRDIMM: 32GB, 64GB, 128GB, 256GB
  • RDIMM: 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C621A
SATA
  • Intel® C621A controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Graphics
  • 1 ASPEED AST2600 BMC port(s)
Network Controllers
  • Dual LAN with 10Gbase-T
Input / Output
SATA
  • 6 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 10 Gigabit Ethernet LAN ports
USB
  • 2 USB 3.2 Gen1 port(s) (2 rear)
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 2 SuperDOM (Disk on Module) port with build power
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 4.0 x16 Left Riser Slot,
  • 1 PCIe 4.0 x16 Right Riser Slot,
  • 1 PCIe 4.0 x8 Right Riser Slot,
  • 1 PCIe 4.0 x8 Proprietary Storage adapter Slot
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
Power Configurations
  • ACPI Power Management
PC Health Monitoring
Voltage
  • VBAT, PCH temperature, Memory temperature, CPU temperature, +5V standby, +5V, +3.3V, +12V, +1.8V, VRM temperature, Memory Voltages, CPU thermal trip support, 5+1 Phase-switching voltage regulator
LED
  • UID/Remote UID
  • BMC/IPMI Heartbeat LED
Other Features
  • WOL, UID, RoHS, Node Manager Support, RoT, NCSI header
FAN
  • 2x 4-pin fan headers (up to 2 fans)
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Resources
Servers (Optimized for X12DPT-PT6)
SYS-220TP-HTTR
SYS-620TP-HTTR
SYS-120TP-DTTR
SYS-220TP-HC8TR
SYS-220TP-HC9TR
SYS-620TP-HC8TR
SYS-620TP-HC9TR
SYS-120TP-DC8TR
SYS-120TP-DC9TR
...
Component Options
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Software
BMC Firmware
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List

X12DPT-PT6 (For SuperServer Only)
