SuperServer SYS-120TP-DC9TR

1U 2-node TwinPro with 4 2.5" SAS/SATA drives per node and HW RAID

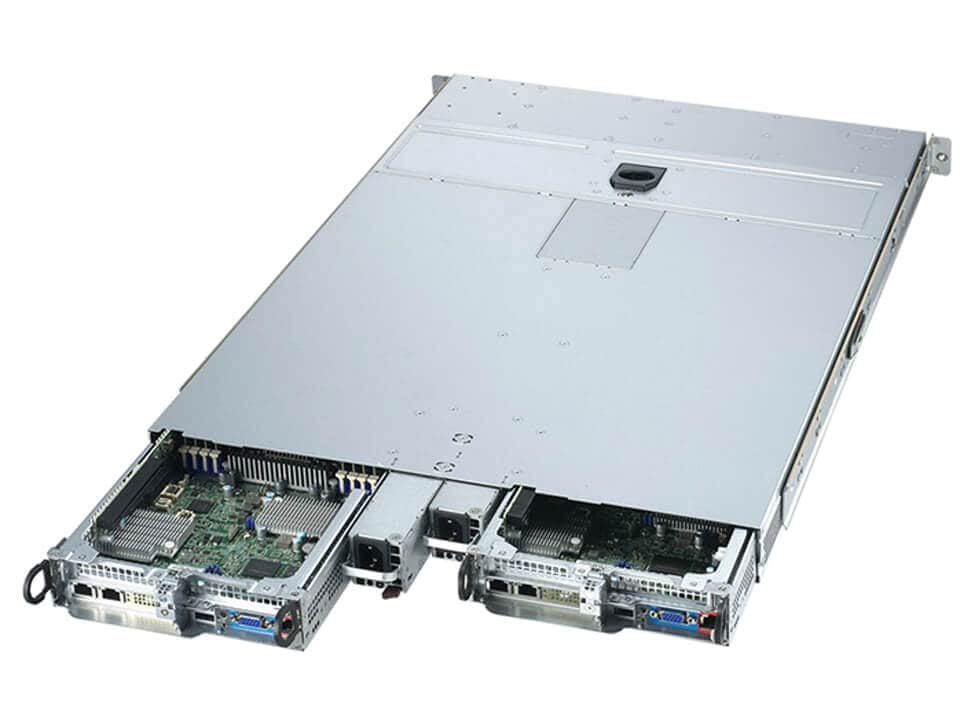

SYS-120TP-DC9TR Main SYS-120TP-DC9TR Angle SYS-120TP-DC9TR Node SYS-120TP-DC9TR Front SYS-120TP-DC9TR Rear
Integrated Board: X12DPT-PT6
Learn more

Key Applications

  • High Performance Computing
  • Hyper-Converged Infrastructure
  • Big Data / Big Science

Key Features

Two hot-pluggable systems (nodes) in a 1U form factor. Each node supports the following:

  1. Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM
  4. 1 PCIe 4.0 x16 (LP), 1 PCIe 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22x80 mm)
  5. Intel® X710 Dual port 10GBase-T LAN onboard

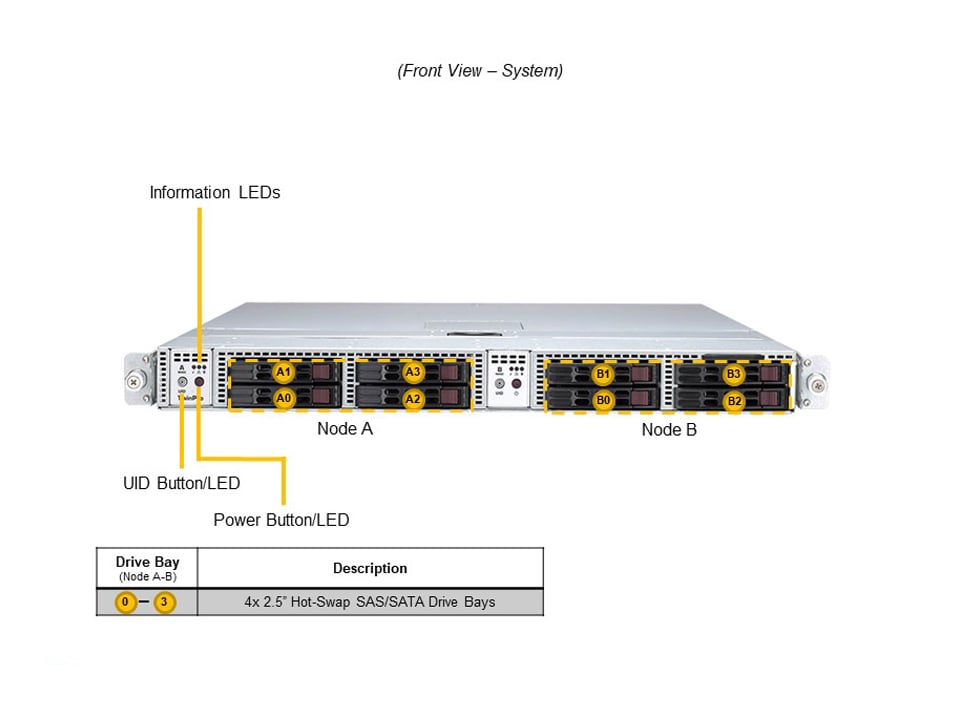

  6. 4x 2.5" hot-swap SATA/SAS drive bays
  7. 6 counter-rotating 4cm PWM fans with optimal fan speed control (Per System)

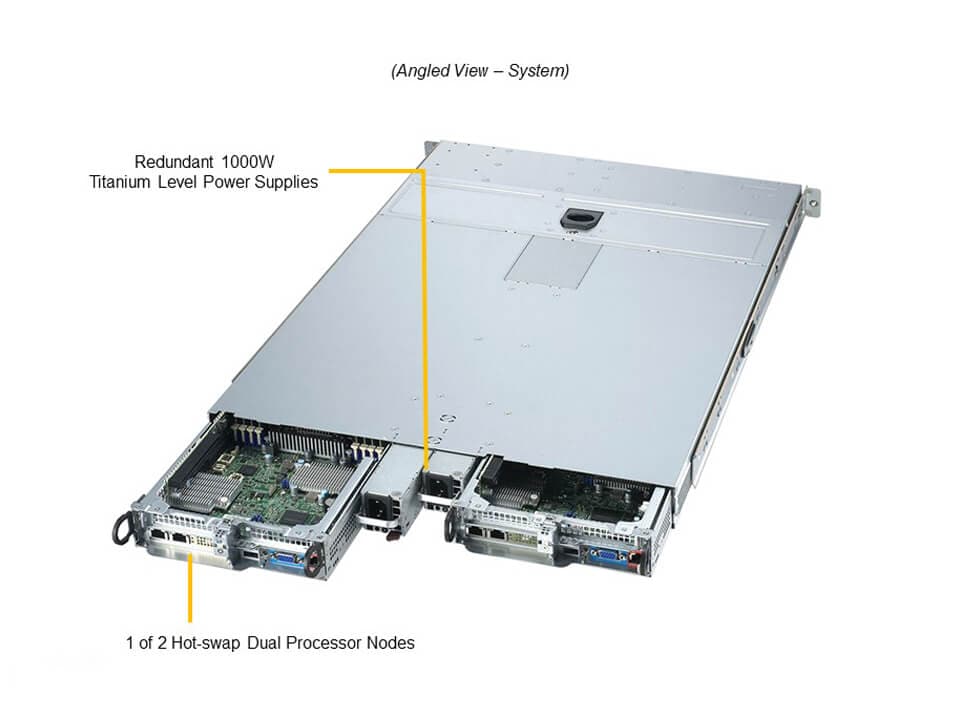

  8. Two 1000W redundant power supplies with PMBus

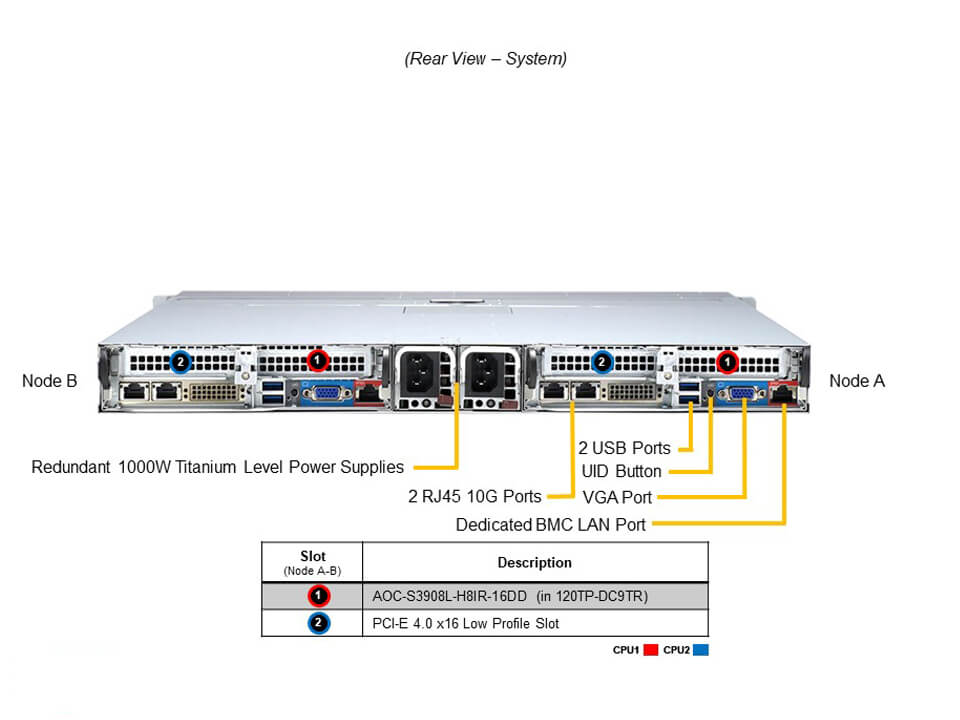

  9. ASPEED AST2600 BMC, 2 USB, VGA. RoT

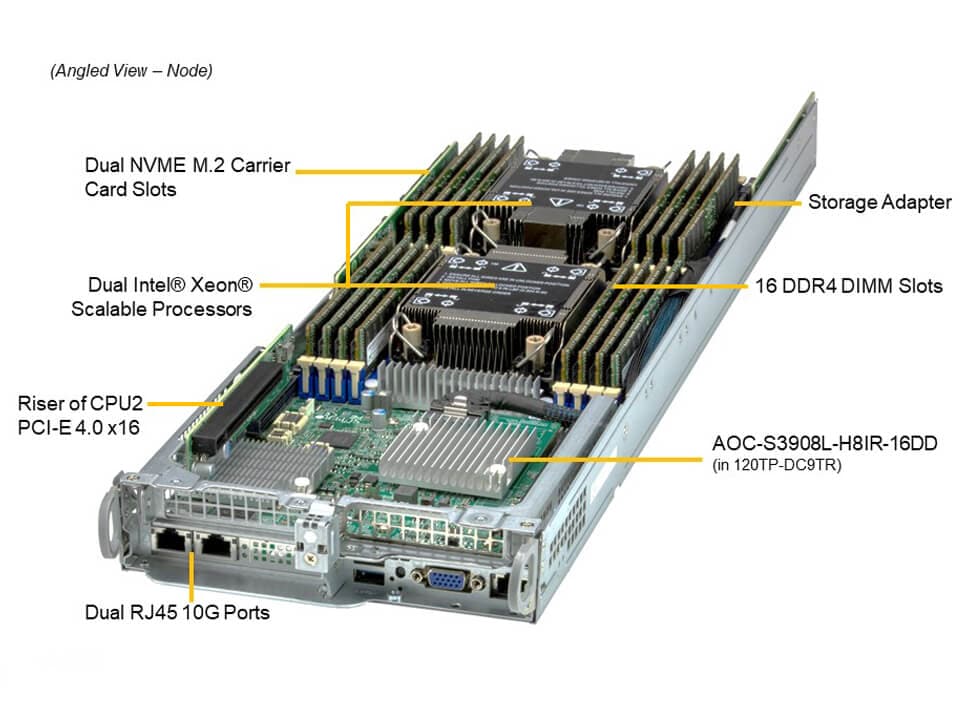

    Broadcom® 3908 SAS (12Gbps); 4 slots per node; RAID 0, 1, 5, 6, 10 support.
...
...
SYS-120TP-DC9TR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-120TP-DC9TR
Motherboard
Super X12DPT-PT6
Processor (per Node)
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 32C/64T; Up to 48MB Cache per CPU
Note
  • Supports up to 185W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices (per Node)
Chipset
  • Intel® C621A
Network Connectivity
Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 5 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-809H-R1K05P3
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.25" (438 mm)
Depth
  • 28.25" (718 mm)
Package
  • 8" (H) x 29.6" (W) x 38.4" (D)
Weight
  • Gross Weight: 48.1 lbs (21.9 kg)
  • Net Weight: 33.5 lbs (15.2 kg)
Available Color
  • Black front & silver body
Front Panel
LED
  • Network activity LED
  • Power status LED
  • System information (overheat/UID) LED
Buttons
  • Power On/Off button
  • UID button
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
Drive Bays / Storage (per Node)
Drive Bays Configuration
M.2
System Cooling
Fans
  • 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shrouds
Power Supply
1x 1000W
1x 1000W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)38 x 40 x 360 mm
AC Input800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1000W: 200-240Vac
1000W: 200-240Vac / 50-60Hz
1000W: 240-240Vdc / 50-60Hz
+12VMax: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (200Vac-240Vac)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12DPT-PT6

CSE-809H-R1K05P3 		2

1 		Super X12DPT-PT6 Motherboard

1U Chassis
Add-on Card / Module AOC-S3908L-H8IR-16DD-P 2 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDDw/ exp,RoHS
Backplane BPN-SAS3-809H3 1 1U 8-Port 2.5" Multi-Node Storage Backplane for SMCI X11
Cable CBL-PWCD-0900 2 PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
CBL-SAST-1334-100 2 [NR] SlimSAS x8 (STR to STR),34CM,100 OHM,RoHS
Air Shroud MCP-310-21732-0B 2 TwinPro 2U4N plastic air shroud for X12DPT-PT6(2pcs)
Riser Card RSC-P-6G4 2 1U LHS TwinPro Riser card with one PCIe 4.0x16lotH,RoHS
RSC-PR-6-X2 2 1U RHS TwinPro Riser card with one PCIe 4.0 x16 slot,HF,RoH
Storage Controller Card SCC-P2N2M2-P2 2 2x NVMe M.2 carrier up to 2280 for X12 Twinpro
SCC-P6SG4-P1 2 1U Passive Gen4 6x SAS/SATA connecting to AOC 3808/3908
Software SFT-OOB-LIC 2 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077PM 2 X12 ICX/CPX 1U Passive CPU Heatsink (78x113x24.7mm), w/ Center Air channel
SNK-P0077V 2 X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
*Power Supply PWS-1K05A-1R 2 1U 1000W Redundant Power Supply Titanium, 38X40X360mm length
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
CacheVault for RAID Controller BTR-CVPM05 • 1 Broadcom CacheVault
MCP-240-00203-0N • 1 Mounting Bracket
TPM security module (optional, not included) AOM-TPM-9670H-S 1 SPI capable TPM 2.0 with Infineon 9670 controller with Horizontal form factor
AOM-TPM-9671H-S 1 SPI capable TPM 1.2 with Infineon 9670 controller with Horizontal form factor
VROC Premium AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10
VROC Standard AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
