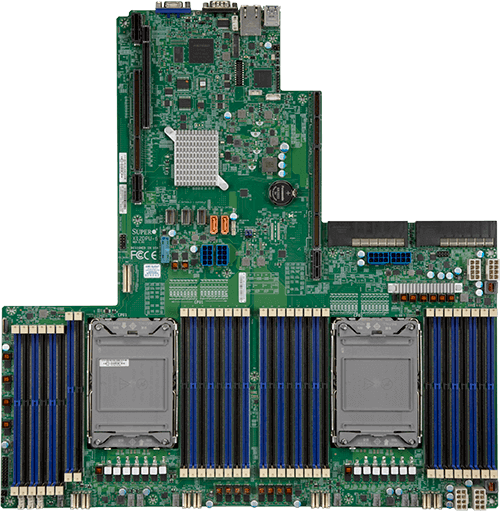

X12DPU-6

Ultra Series

Key Features

3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Intel® C621A
Up to 8TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 8TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 8TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 32 DIMM slots
1 PCIe 4.0 x32 Right Riser Slot,
1 PCIe 4.0 x16 Right Riser Slot,
1 PCIe 4.0 x40 Ultra Riser Slot,
1 NVMe x4 Internal Port(s)
Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
1 VGA D-Sub Connector port
Networking options provided via Ultra Riser

...

...

Optimized Servers

SYS-120U-TNR SYS-610U-TNR SYS-220U-TNR SYS-220U-MTNR SYS-620U-TNR

Specifications

Product SKUs
MBD-X12DPU-6

Physical Stats
Form Factor	Proprietary
Dimension	17" x 16.8" (43.18cm x 42.67cm)

Processor
CPU	3rd Gen Intel® Xeon® Scalable processors Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core	Up to 40 cores

System Memory
Memory Capacity	32 DIMM slots Up to 8TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MT/s Up to 8TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 8TB 3DS ECC RDIMM, DDR4-3200MT/s
Memory Type	3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes	16GB, 32GB, 64GB, 128GB, 256GB LRDIMM: 16GB, 32GB, 64GB, 128GB, 256GB RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage	1.2V
Error Detection	Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel® C621A
SATA	Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2600 BMC
Graphics	1 ASPEED AST2600 BMC port(s)
Network Controllers	Networking options provided via Ultra Riser

Input / Output
USB	4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
Video Output	1 VGA D-Sub Connector port(s)
Serial Port	1 COM Port(s) (1 rear)
TPM	1 TPM Header

Expansion Slots
PCIe	1 PCIe 4.0 x16 Right Riser Slot, 1 PCIe 4.0 x32 Right Riser Slot, 1 PCIe 4.0 x40 Ultra Riser Slot

System BIOS
BIOS Type	AMI UEFI

Management
Software	Redfish API, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0

PC Health Monitoring
Voltage	PCH temperature, Chassis intrusion header, 3.3V standby, +5V standby, +12V, Memory Voltages, 8 -fan status, +1.8V PCH
LED	UID/Remote UID Power LED BMC/IPMI Heartbeat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support
FAN	8x 4-pin fan headers (up to 8 fans) 8x fans with tachometer monitoring
Other Features	WOL, UID, RoHS, Node Manager Support, CPU thermal trip support for processor protection, Chassis intrusion header, Chassis intrusion detection, ACPI power management, RoT, RoHS, Halogen Free

Operating Environment
Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
