SuperServer SYS-220U-MTNR (Complete System Only)

2U Ultra with 6 NVMe/SAS/SATA bays and 8 PCIe slots

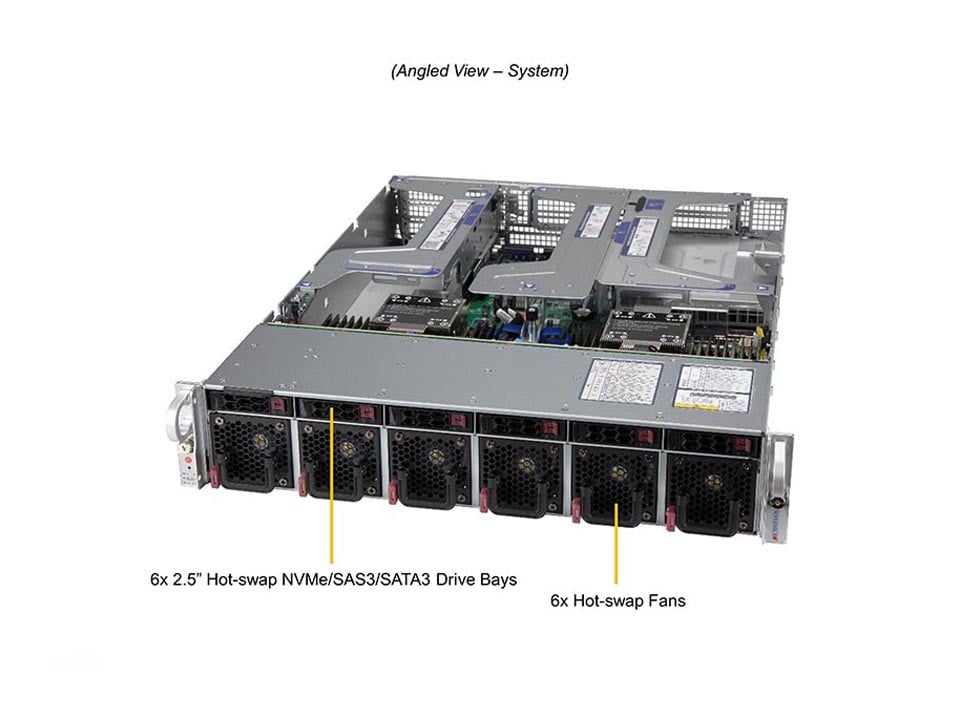

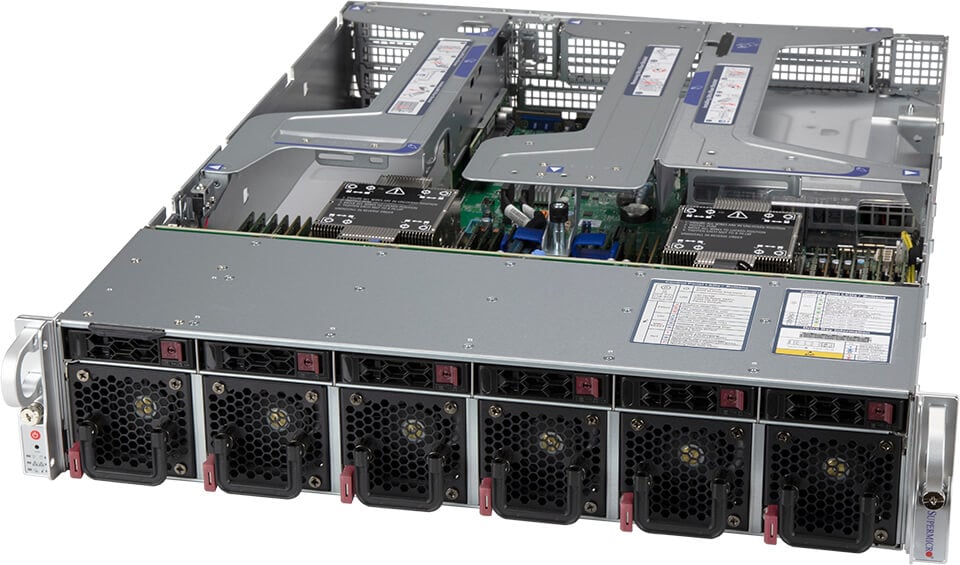

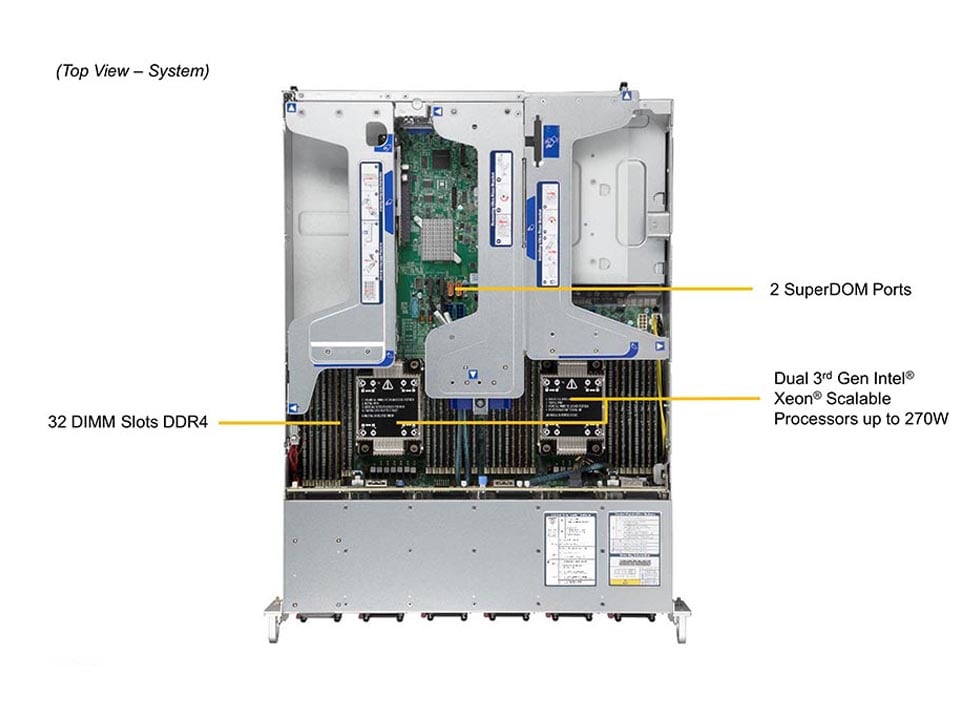

SYS-220U-MTNR Main SYS-220U-MTNR Angle SYS-220U-MTNR Top SYS-220U-MTNR Front SYS-220U-MTNR Rear
Integrated Board: X12DPU-6
Learn more

Key Applications

  • Virtualization
  • HPC
  • Cloud Computing
  • High End Enterprise Server
  • Software Defined Storage
  • Application Tier Service Provider
  • 5G/Telco

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
  4. 1 PCIe 4.0 x16 (LP)
    1 PCIe 4.0 x16 (FH, 10.5"L)
    5 PCIe 4.0 x8 (FH, 10.5"L)
    1 internal PCIe 4.0 x8 (in x16 slot, LP)
  5. Flexible networking options
  6. 6x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  7. 6 heavy duty fans with optimal fan speed control
  8. 1600W redundant Titanium level power supplies
...
...
SYS-220U-MTNR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-220U-MTNR
Motherboard
Super X12DPU-6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width or 6 single-width GPUs
Supported GPU
  • NVIDIA PCIe: T4, RTX A6000, RTX A5000, A40, A30, A16, A2, A100, A10
  • View GPU Options
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 +1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-219ULTS-R1K62P
Dimensions and Weight
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 22.6" (574 mm)
Package
  • 9.96" (H) x 24.6" (W) x 45.43" (D)
Weight
  • Gross Weight: 66 lbs (30 kg)
  • Net Weight: 40 lbs (18.2 kg)
Available Color
  • Black Front & Silver Body

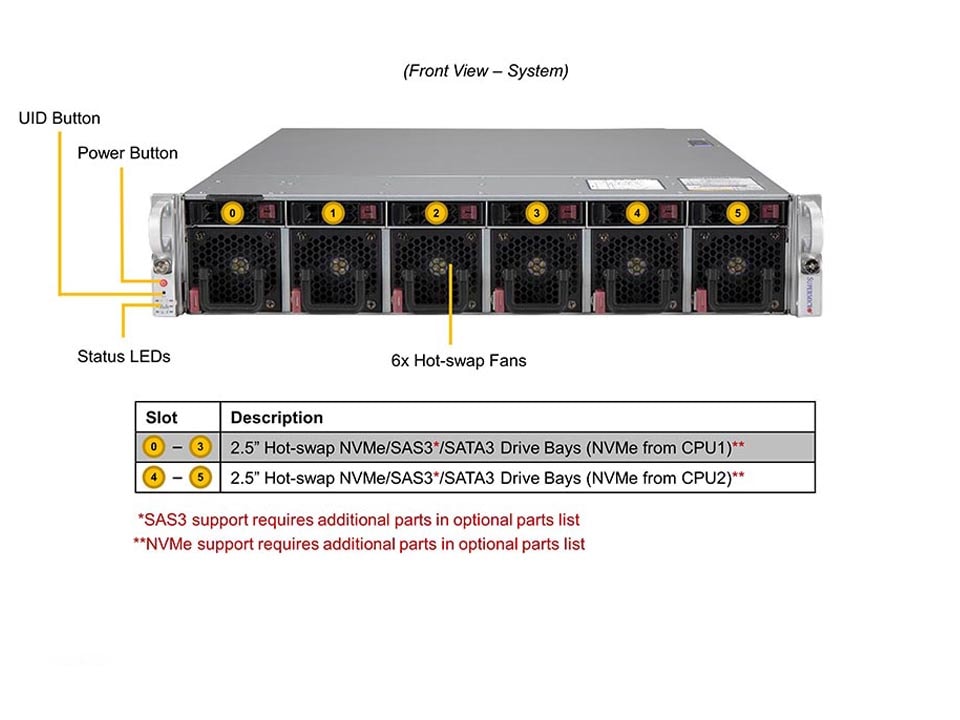

Front Panel
LED
  • HDD activity
  • LAN1 activity
  • LAN2 acticity
  • Power Fail
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
  • UID button
Expansion Slots

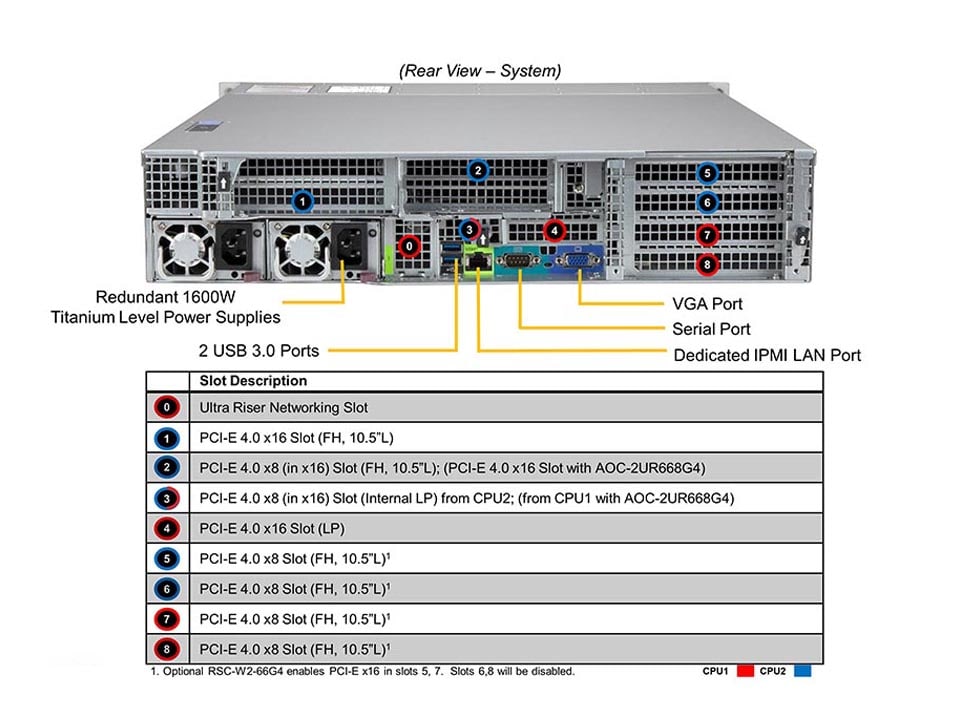

PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 4.0 x16 FH/10.5"L slot
    • 5 PCIe 4.0 x8 FH/10.5"L slots
    • 1 PCIe 4.0 x8 LP slot
    • 1 PCIe 4.0 x16 LP slot
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 6 bays
    • 6 front hot-swap 2.5" NVMe/SAS*/SATA drive bays
  • (*SAS support may require additional storage controller and/or cables)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 6x 6cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shrouds
Power Supply
1x 1600W
1x 1600W Redundant Titanium Level (96%) Hot-plug power supply
Dimension (WxHxL)73.5 x 40 x 203 mm
AC Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
+12VMax: 83.3A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
12V SBMax: 2.1A / Min: 0A
Output TypeBackplanes (gold finger)
CertificationTitanium Level94%+  Titanium Level

[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
2 Rear 2.5" Hot-swap SATA Drive Bays (Complete System Only) MCP-240-82922-0N-OEM • 1 Rear 2x 2.5" HDDs riser bracket kit for SC829U/219U, tool-less
Add-on card for M.2 support AOC-SLG3-2H8M2-O - 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS
CacheVaults BTR-CV3108-U1 - CacheVault for Broadcom 3108 with Supercap mounting for 2U Ultra
BTR-CVPM05 • + BKT-BBU-BRACKET-05 - CacheVault for Broadcom 3908/3916 with Supercap
Drive Tray MCP-220-00178-0B • 1 ~ 6 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive)
Global Services & Support OSNBD3/2/1 - 3/2/1-year onsite NBD service
OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
Intel® VROC RAID Key Options AOC-VROCINTMOD 1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10
Network Card(s) AOC Compatibility Matrix - Standard Networking AOC Matrix
NVMe Support Kit CBL-KIT-220U-MTNR 1 Cables Kit for X12 Ultra SYS-220U-MTNR
Optional Storage Controller Card + Cable(s) AOC-S3808L-L8IT-O • + 1x CBL-SAST-1253LP-100 - Standard LP, 8 internal ports (12Gb/s) Gen-4; HBA
AOC-S3108L-H8iR-16DD + 2x CBL-SAST-1250LP-100 - Standard LP, 8 internal ports (12Gb/s) Gen-3; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3908L-H8iR-16DD-O + 1x CBL-SAST-1253LP-100 - Standard LP, 8 internal ports (12Gb/s) Gen-4; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3008L-L8i + 2x CBL-SAST-1250LP-100 - Standard LP, 8 internal ports (12Gb/s) Gen-3; RAID 0,1,1E
AOC-S3008L-L8E+-O + 2x CBL-SAST-1250LP-100 - Standard LP, 8 internal ports (12Gb/s) Gen-3; HBA + I2C
AOC-S3008L-L8E + 2x CBL-SAST-1250LP-100 - Standard LP, 8 internal ports (12Gb/s) Gen-3; HBA
Power Supply PWS-2K08A-1R • 2 1U 2000W, Titanium Level, Redundancy, AC Input: 90-264VAC/47-63Hz, and wide DC input 180Vdc~300Vdc
PWS-1K30D-1R • 2 1U 1300W, Redundancy, DC Input: -48Vdc
Riser Card RSC-W2-688G4 1 2U LHS WIO Riser card with one PCIe 4.0 x16 and two PCIe 4.0 x8
RSC-W2-66G4 1 2U LHS WIO Riser card with two PCIe 4.0 x16 slots,HF,RoHS
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Trusted Platform Module Options AOM-TPM-9671V-O 1 SPI Capable Vertical TPM 1.2 Module
AOM-TPM-9670V-O • 1 SPI TPM 2.0 using SLB9670
AOM-TPM-9670V-S-FIPS-P 1 AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS,RoHS
Ultra Riser Card Options + Rear Window AOC-2UR68G4-M2TS + MCP-240-82914-0N 1 2U Ultra Riser 2-port 25GbE SFP28, Mellanox CX-6 LX, 1 PCIe 4.0 x8 (in x16), 1 PCIe 4.0 x16 and 1 PCIe 4.0x8 (internal, in x16),RoHS
AOC-2UR68G4-I2XT-O + MCP-240-82909-0N 1 2U Ultra Riser with 2-port 10G RJ45, Intel Carlsville X710-AT2, 1 PCIe 4.0 x8 (in x16), 1 PCIe 4.0 x16 and 1 PCIe 4.0x8 (internal, in x16),RoHS
AOC-2UR668G4-O + MCP-240-82925-0N 1 2U Ultra Riser with 2x PCIe 4.0 x16 and 1x PCIe 4.0 x8 (internal, in x16),RoHS
AOC-2UR68G4-I4XTS-O + MCP-240-82930-0N 1 2U Ultra Riser with 2-port 10G RJ45 & 2-port 10G SFP+, Intel Carlsville X710-TM4, with 1 PCIe 4.0 x8 (in x16), 1 PCIe 4.0 x16 and 1 PCIe 4.0x8 (internal, in x16),RoHS

Ultra SuperServer SYS-220U-MTNR (Complete System Only )

Certain products may not be available in your region
