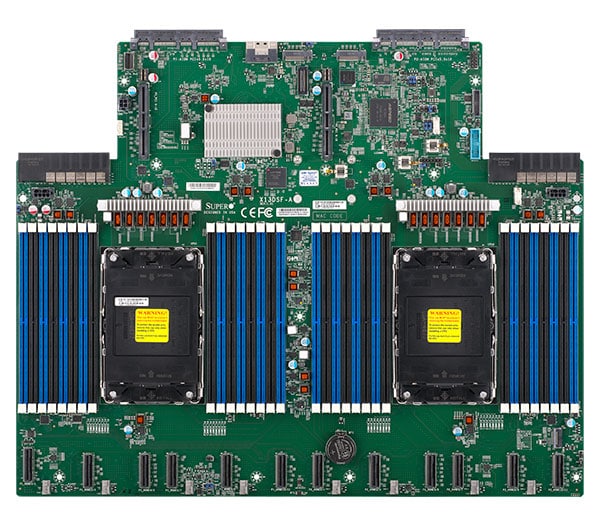

X13DSF-A

X13DSF-A
1U/2U E1.S/E3.S All Flash Storage Server

Key Features


  1. Support CXL
  2. 5th/4th Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
  3. Intel C741® Chipset
  4. Up to 8TB 3DS ECC RDIMM, DDR5-5600MT/s in 32 DIMM slots
  5. 2 GenZ x16 slot PCIe 5.0
  6. 2 AIOM connectors PCIe 5.0 x16
  7. 2 M.2
  8. 24 NVMe ports PCIe 5.0 x4 via 12 MCIO connectors
  9. 2 USB 3.0
  10. 4 SATA via SlimSAS
...
...

Optimized Servers


SSG-121E-NES24R SSG-121E-NE316R SSG-221E-NE324R SSG-121E-NE3X12R
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X13DSF-A
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 17" x 13.64" (43.18cm x 34.65cm)
Processor
CPU
Core
  • Up to 64 cores
System Memory
Memory Capacity
  • 32 DIMM slots
  • Up to 8TB 3DS ECC RDIMM, DDR5-5600MT/s
Memory Type
  • 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4400MT/s (2DPC)
DIMM Sizes
  • 16GB, 32GB, 64GB, 96(XCC Only)GB, 128GB, 256GB
  • RDIMM: Up to 256GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C741
SATA
  • Intel® C741 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Network Controllers
  • N/A
Input / Output
SATA
  • 4 SATA3 (6Gbps) port(s)
USB
  • 2 USB 3 port(s) (2 via header)
TPM
  • 1 TPM Header
Others
  • 12 MCIO PCIe 5.0 x8
  • Rear I/O Module Connector for AOM-DSF-IO
Expansion Slots
PCIe
  • 2 PCIe 5.0 x16 AIOM,
  • 2 PCIe 5.0 x16 Right Riser Slot
M.2
  • M.2 Interface: 2 SATA/PCIe 3.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI 32MB AMI UEFI
BIOS Features
  • ACPI 6.4
  • SMBIOS 2.8/3.5
  • UEFI 2.8A
  • Plug and Play (PnP)
  • PCI FW 3.2
Management
Software
PC Health Monitoring
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
FAN
  • 8x 4-pin fan headers (up to 8 fans)
  • Fan speed control
  • Overheat LED indication
  • 8x fans with tachometer monitoring
Other Features
  • UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management, System temperature, CPU thermal trip support, +3.3V, +5V, +5V standby, +12V, +3.3V standby, Veore, Vmem, CPU temperature, PCH temperature, Memory temperature, Peripheral temperature, Platform Environment Control Interface (PECI)/(TSI)
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Resources
Servers (Optimized for X13DSF-A)
SSG-121E-NES24R
SSG-121E-NE316R
SSG-221E-NE324R
SSG-121E-NE3X12R
...
Component Options
CPU List
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Software
BMC Firmware
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List

X13DSF-A (For SuperServer Only)
