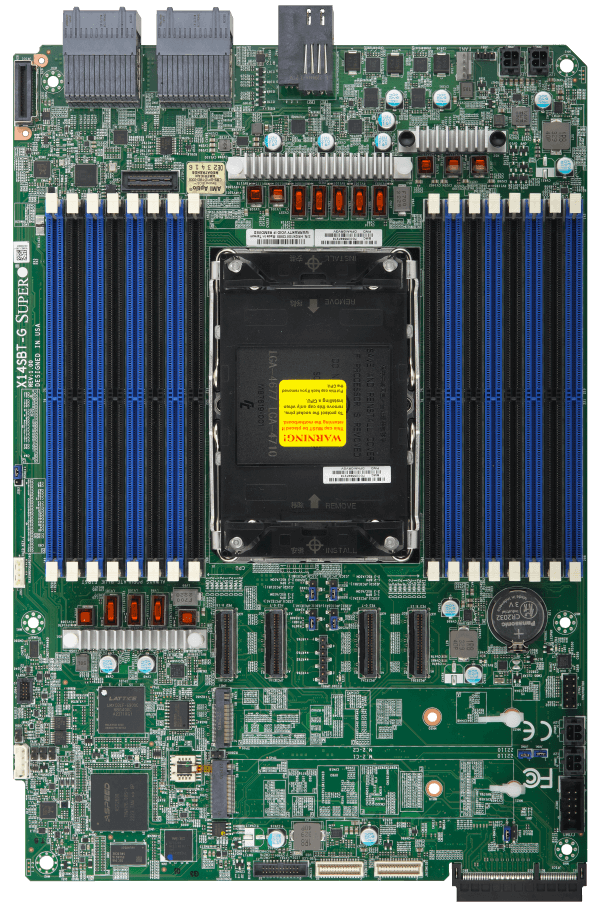

X14SBT-G

Key Features


  1. Intel® Xeon® 6700-series processors with E-cores, Single Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP
  2. Up to 2TB ECC RDIMM, DDR5-6400MT/s (1DPC) or DDR5-5200MT/s (2DPC) in 16 DIMM slots
  3. 1 PCIe 5.0 x8 via customized 124-pin slim cool edge connector(for front I/O module)
  4. 2 PCIe 5.0 x16 via Molex Impleplus connectors
  5. 4 PCIe 5.0 X8 via MCIO connectors
  6. I/O: 1 COM, TPM header
  7. M.2 Interface: 2 PCIe5.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-Key
...
...

Optimized Servers


Specifications Resources Parts List
Specifications
Product SKUs
MBD-X14SBT-G
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 8.53" x 12.42" (21.67cm x 31.55cm)
Processor
CPU
Core
  • Up to 144 (E) cores
System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 2TB ECC Registered RDIMM, DDR5-6400MT/s
Memory Type
  • 6400 MT/s ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC)
DIMM Sizes
  • 32GB, 64GB, 96GB, 128GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
IPMI
  • ASPEED AST2600 BMC
Network Controllers
  • AIOM for LAN
Input / Output
Serial Port
  • 1 COM Port(s) (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 4 PCIe 5.0 x8 MCIO connector,
  • 2 PCIe 5.0 x16 PCIe 5.0 via Molex Impleplus connectors, Support up to two X16 PCIe 5.0 AIOM,
  • 1 PCIe 5.0 x8 PCIe5.0 4C customized 124-pin slim cool edge connector, Support GrandTwin Front IO module
M.2
  • M.2 Interface: 2 PCIe 5.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI 64MB AMI UEFI
BIOS Features
  • ACPI 6.5
  • SMBIOS 3.7 or later
  • UEFI 2.9
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, +5V standby, +5V, +3.3V, +12V
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
FAN
  • Fan speed control
Other Features
  • WOL
  • UID
  • M.2 NGFF connector
  • Control of power-on for recovery from AC power loss
  • ACPI power management
Resources
Parts List

X14SBT-G (For SuperServer Only) New
