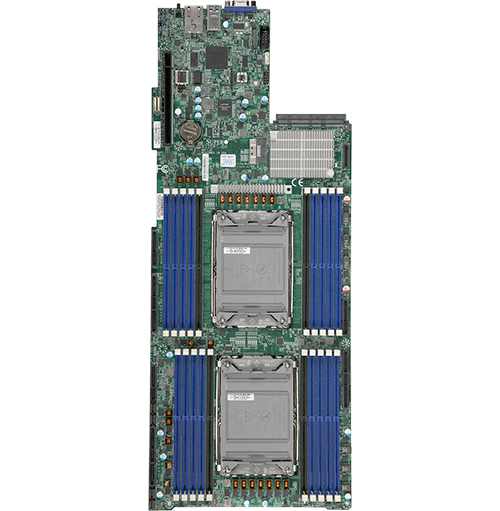

X12DPT-B6

Key Features


  1. 3rd Gen Intel® Xeon® Scalable processors
    Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
  2. Intel® C621A
  3. Up to 4TB RDIMM, DDR4-3200MHz; Up to 4TB LRDIMM, DDR4-3200MHz
    Up to 2TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 20 DIMM slots
  4. 1 PCIe 4.0 x16 Left Riser Slot,
    1 PCIe 4.0 x16 Right Riser Slot,
    1 PCIe 4.0 x8 connector for SMC add-on cards
    1 PCIe 4.0 x8 Proprietary Storage Slot,
    1 PCIe 4.0 x16 AIOM Networking Slot,
    1 PCIe 4.0 x8 M.2 Slot
    M.2 Form Factor: 2260/2280/22110
    1  PCIe 4.0 x16
  5. Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  6. 1 VGA port
  7. Single LAN with
    Networking options provided via AIOM module
...
...

Optimized Servers


Specifications Resources Parts List
Specifications
Product SKUs
MBD-X12DPT-B6
Physical Stats
Form Factor
  • Proprietary Twin
Dimension
  • 7.6" x 18.9" (19.3cm x 48.01cm)
Processor
CPU
  • 3rd Gen Intel® Xeon® Scalable processors
  • Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core
  • Up to 38 cores
System Memory
Memory Capacity
  • 20 DIMM slots
  • Up to 2TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MT/s
  • Up to 4TB ECC LRDIMM, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/s
Memory Type
  • ECC DDR4 LRDIMM, RDIMM
DIMM Sizes
  • 32GB, 64GB, 128GB
  • LRDIMM: 32GB, 64GB, 128GB, 256GB
  • RDIMM: 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C621A
SATA
  • Intel® C621 controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Graphics
  • 1 ASPEED AST2600 BMC port(s)
Network Controllers
  • Single LAN, Networking options provided via AIOM module
Input / Output
SATA
  • 12 SATA3 (6Gbps) port(s)
USB
  • 2 USB 3.2 Gen1 port(s) (2 rear)
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 4.0 x16 Left Riser Slot,
  • 1 PCIe 4.0 x16 Right Riser Slot,
  • 1 PCIe 4.0 x8 connector for SMC add-on cards,
  • 1 PCIe 4.0 x16 AIOM,
  • 1 PCIe 4.0 x8 Proprietary Storage adapter Slot,
  • PCIe 4.0 x16 AIOM Networking Slot,
  • PCIe 4.0 x8 M.2 Slot
M.2
  • Form Factor: 2260/2280/22110
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
Power Configurations
  • ACPI Power Management
PC Health Monitoring
Voltage
  • Monitors CPU voltages, Chipset Voltage, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
LED
  • UID/Remote UID
  • BMC/IPMI Heartbeat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
FAN
  • 4x 4-pin fan headers (up to 4 fans)
  • PWM fan speed control
Other Features
  • WOL, UID, RoHS, Node Manager Support, CPU thermal trip support for processor protection, SDDC
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Resources
Parts List

X12DPT-B6 (For SuperServer Only)
