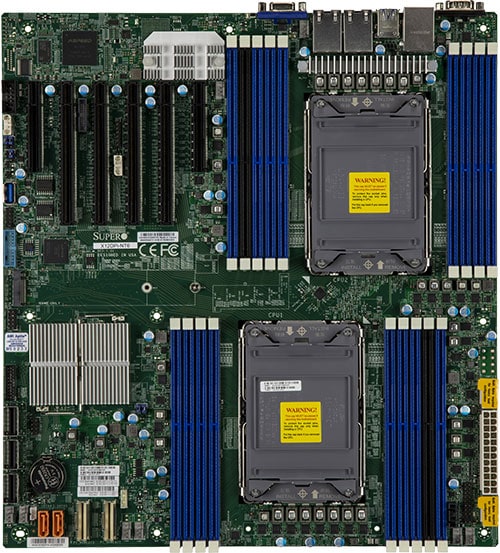

X12DPi-NT6

Key Features


  1. 3rd Gen Intel® Xeon® Scalable processors
    Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
  2. Intel® C621A
  3. Up to 4TB RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
    Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slotsP1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 series only.
  4. 2 PCIe 4.0 x8,
    4 PCIe 4.0 x16,
    2 PCIe 4.0 NVMe x8 Internal Port(s)
    M.2 Interface: 1 PCIe 4.0 x4
    M.2 Form Factor: 2280/22110
    M.2 Key: M-Key
  5. Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  6. Dual LAN with 10GBase-T with Intel® X550
  7. 2 VGA (1 rear bezel, 1 front panel) ports
...
...

Optimized Servers


Specifications Resources Parts List
Specifications
Product SKUs
MBD-X12DPi-NT6
Physical Stats
Form Factor
  • E-ATX
Dimension
  • 12" x 13" (30.48cm x 33.02cm)
Processor
CPU
  • 3rd Gen Intel® Xeon® Scalable processors
  • Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core
  • Up to 40 cores
System Memory
Memory Capacity
  • 18 DIMM slots
  • Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MT/s
  • Up to 4TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/s
  • P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.
Memory Type
  • 3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM
DIMM Sizes
  • LRDIMM: 256GB
  • RDIMM: 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C621A
SATA
  • Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Network Controllers
  • Dual LAN with 10GBase-T with Intel® X550
Input / Output
SATA
  • 14 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 10 Gigabit Ethernet LAN ports
USB
  • 2 USB 2.0 port(s) (2 via header)
  • 7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
Video Output
  • 2 VGA (1 rear bezel, 1 front panel) port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 4 PCIe 4.0 x16,
  • 2 PCIe 4.0 x8
M.2
  • M.2 Interface: 1 PCIe 4.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • VBAT, System temperature, PCH temperature, Monitors CPU voltages, Memory temperature, CPU temperature, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, Memory Voltages, LAN temperature, 8 -fan status
LED
  • UID/Remote UID
  • Power LED
  • BMC/IPMI Heartbeat LED
FAN
  • 8x 4-pin fan headers (up to 8 fans)
  • PWM fan speed control
Other Features
  • WOL, UID, RoHS, Node Manager Support, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, SDDC, RoT, NCSI header
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
